Burner Mounting Plate

Function

Misalignment of the burner — even a few millimetres of angular offset from the drum centreline — deflects the flame toward the shell wall, causing localised hot spots that distort the shell, degrade the internal refractory lining, and damage the dryer flights nearest the burner. The mounting plate provides the reference plane for all burner-to-drum alignment adjustments, with slotted bolt patterns allowing horizontal and vertical vernier adjustment at commissioning. Its structural rigidity prevents combustion-air fan vibration from transmitting into the drum seal, which would accelerate seal wear. The plate's thermal mass also acts as a break, dissipating heat before it can conduct into the structural frame.

Construction & quality

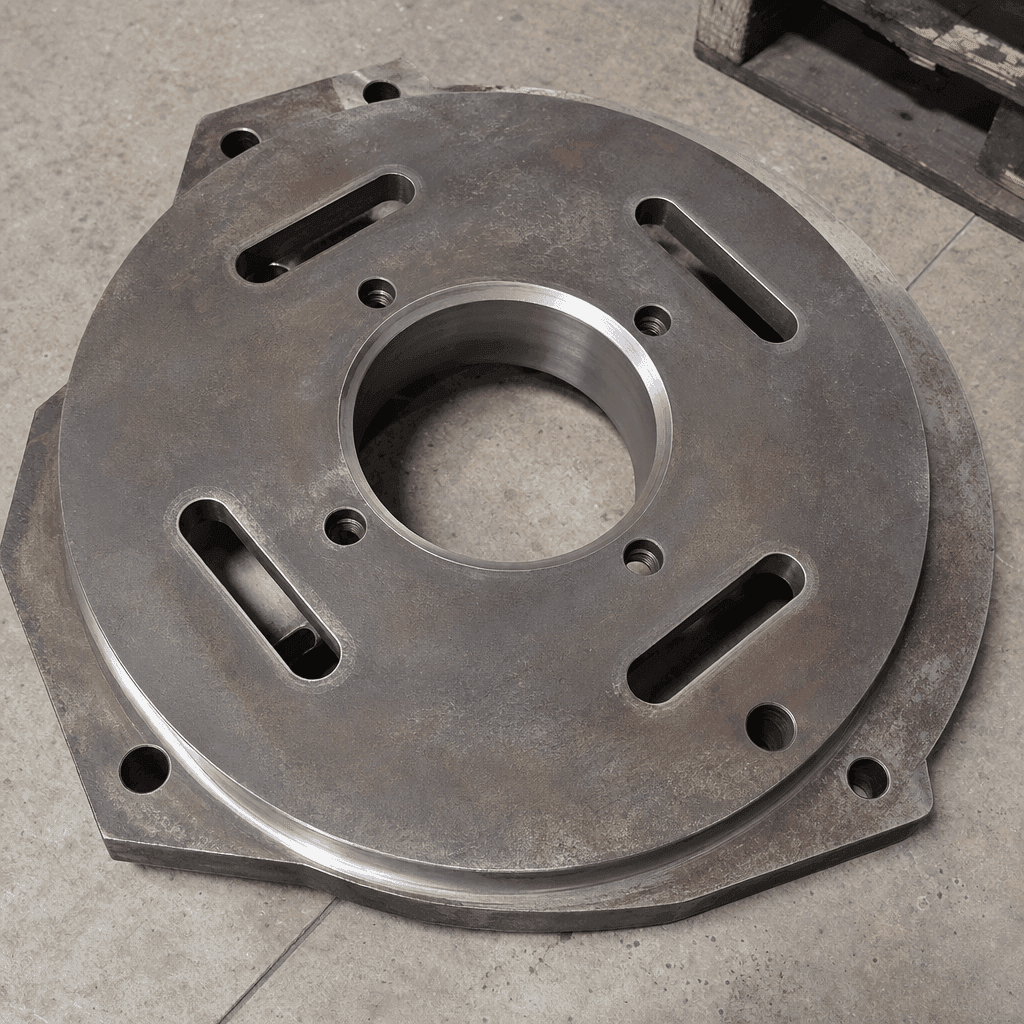

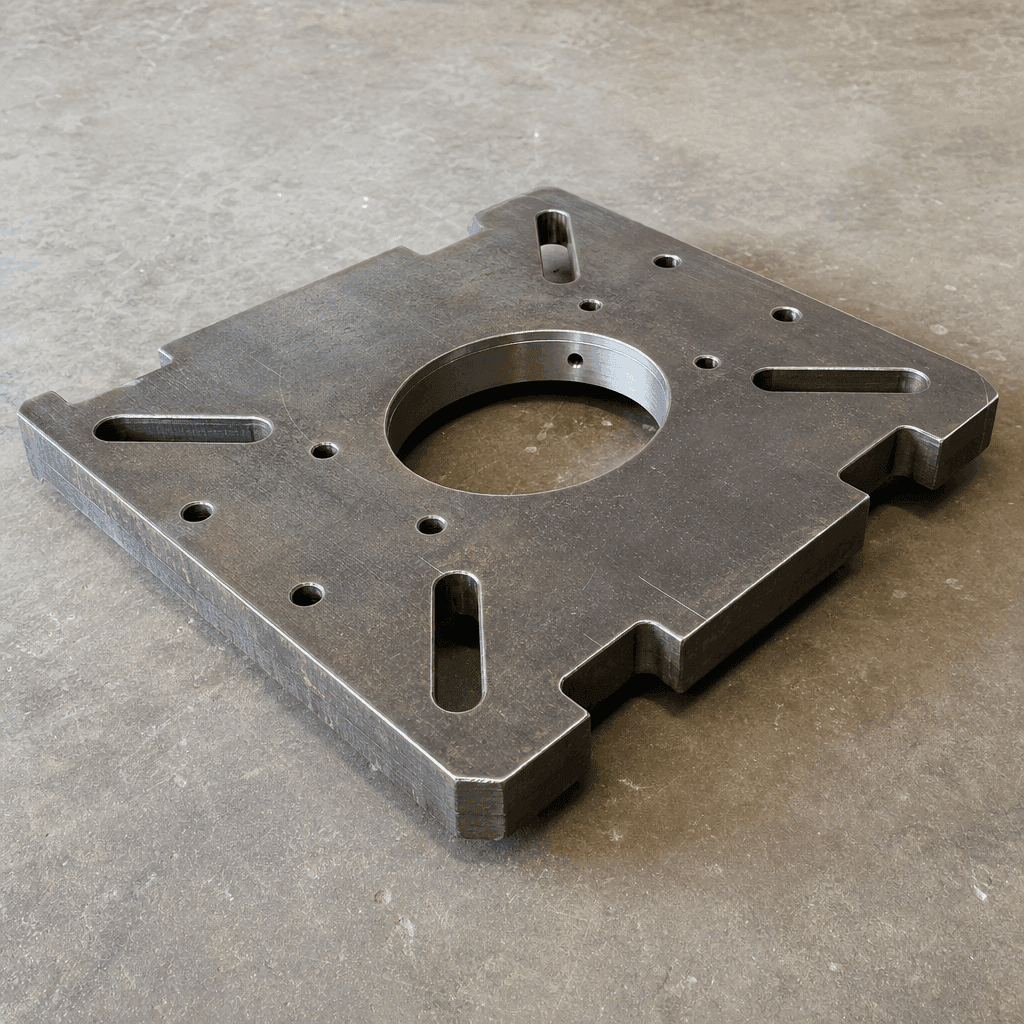

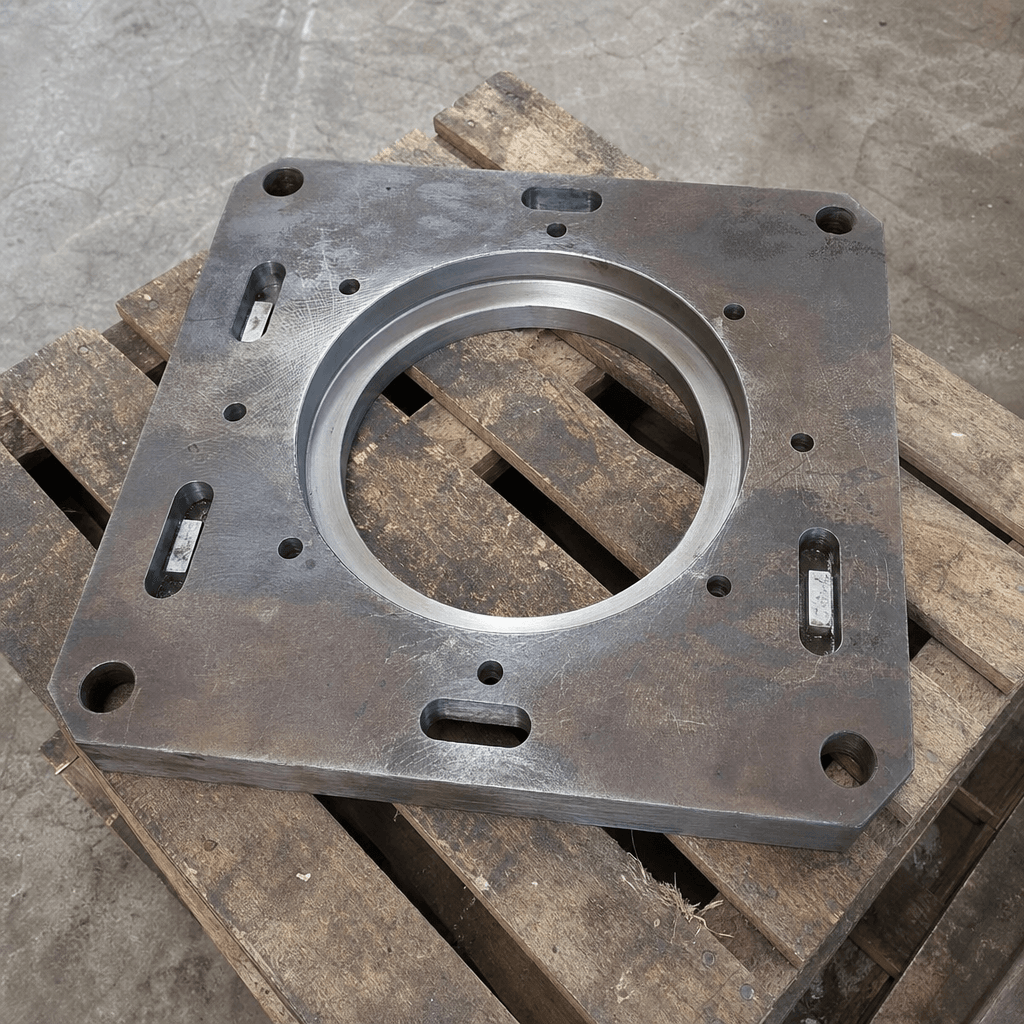

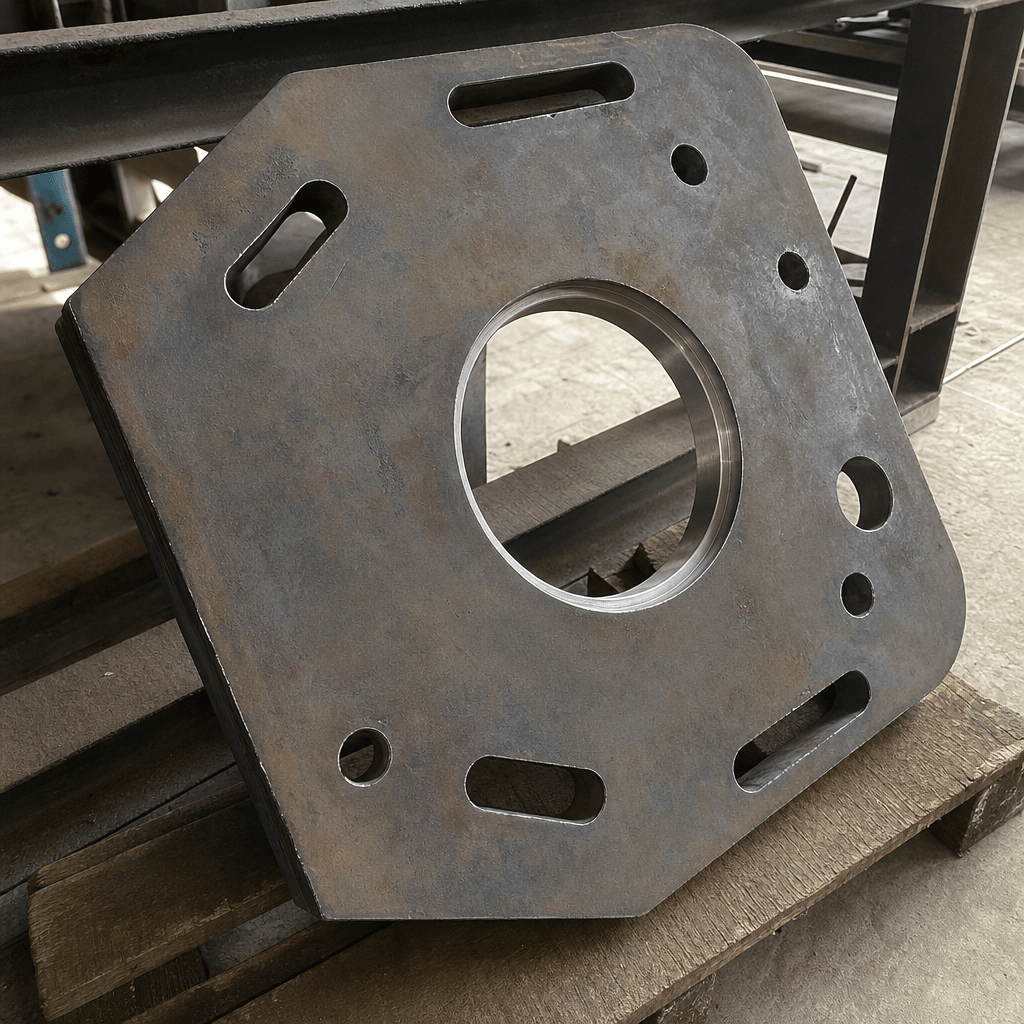

Fabricated from 20–40 mm thick structural steel plate (IS 2062 Gr B / ASTM A36), thermally stress-relieved after flame-cutting. The bolt-circle and centreline bore are machined on a CNC boring and milling centre to a positional tolerance of ±0.5 mm, maintaining concentric burner alignment. Adjustment slots allow ±25 mm of XY offset and ±1° of angular trim. The central aperture (150–350 mm diameter, matched to burner size) is bored to a smooth chamfered edge to prevent turbulent airflow disruption. The burner-facing surface receives a ceramic-loaded high-temperature coating rated to 600 °C continuous. All mounting hardware — including heat-resistant threaded inserts — is rated to 400 °C.

When to replace

• Warping or bowing of the plate exceeding 2 mm flatness deviation, causing progressive burner misalignment
• Cracking around the central bore from repeated thermal fatigue cycling during plant starts and stops
• Elongation or ovalling of adjustment slots reducing clamping force and allowing burner drift
• Surface scaling or paint blistering indicating coating failure and approaching base-metal oxidation
• Abnormal flame deflection observed through the drum inspection port — a primary symptom of plate distortion
