Foundation Plates

Function

Foundation plates convert point column loads into distributed bearing pressure and resist overturning and horizontal shear through the anchor-bolt connection. Without correctly designed and installed plates, differential settlement, anchor-bolt pull-out, or frame racking can develop and progressively misalign the drum and conveyor system, causing uneven wear and structural fatigue across the entire plant. A correctly sized and properly grouted plate set is the prerequisite for maintaining drum and drive alignment over the plant's operating life.

Construction & quality

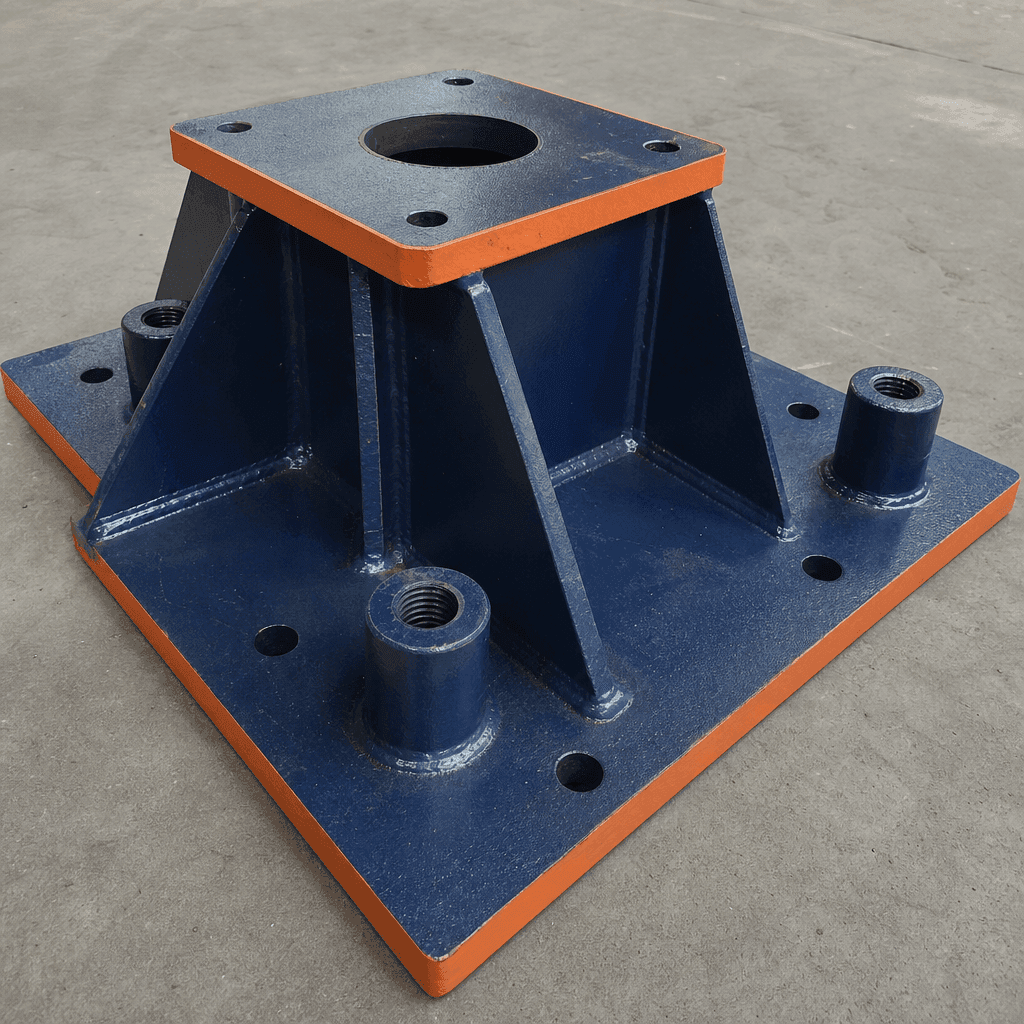

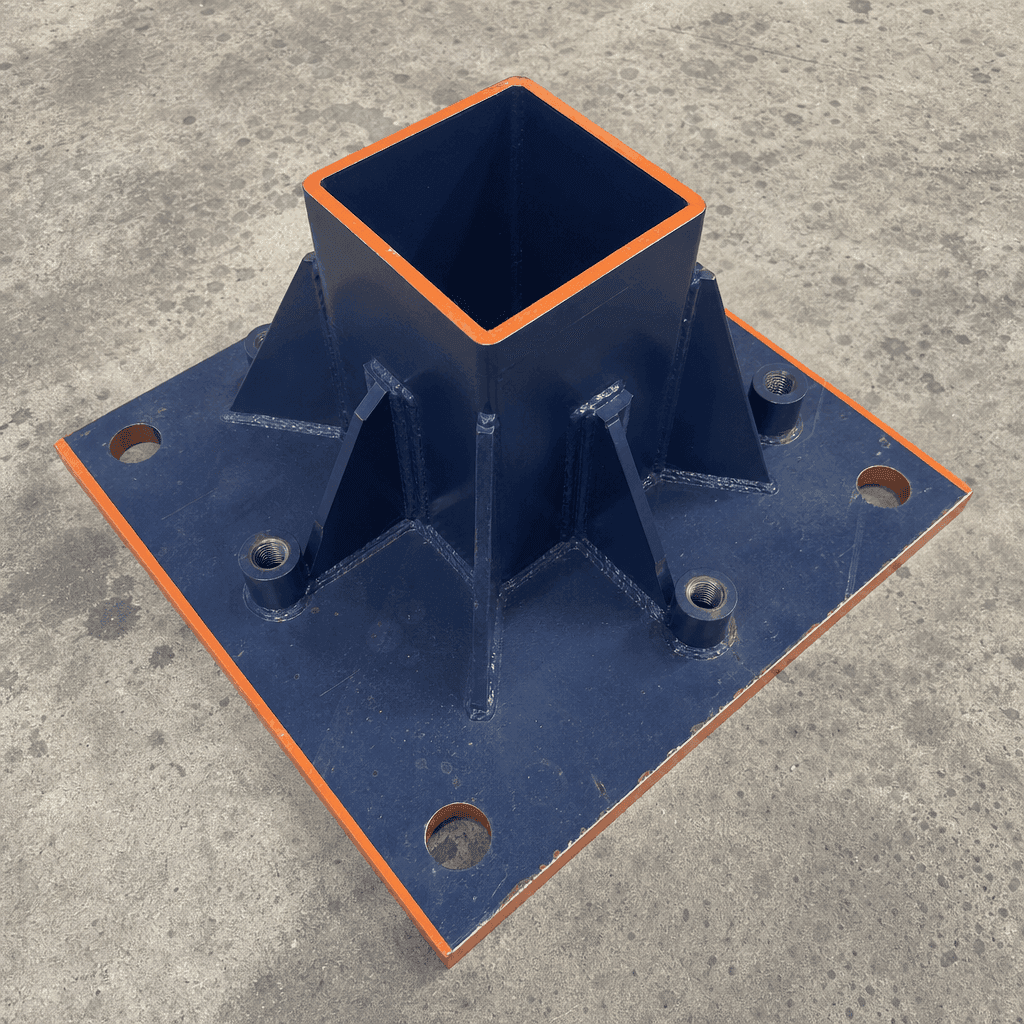

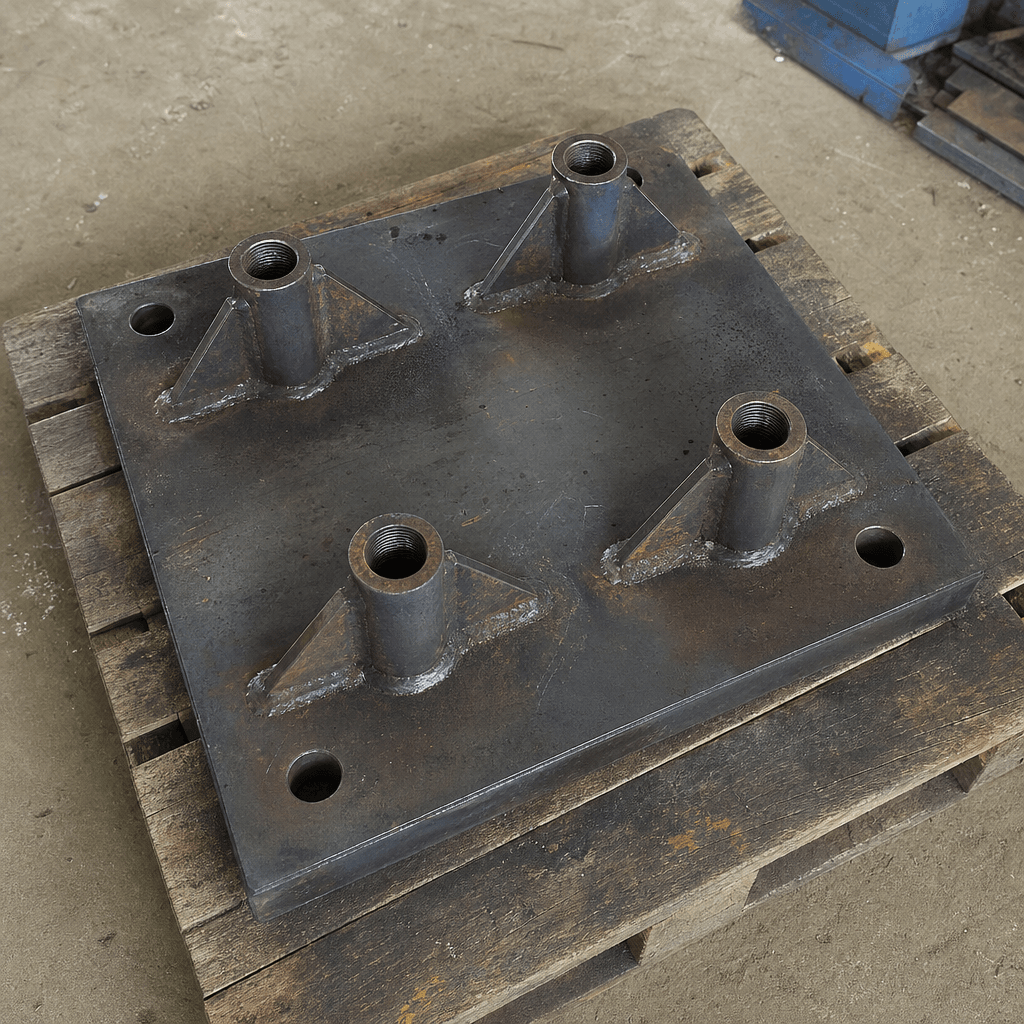

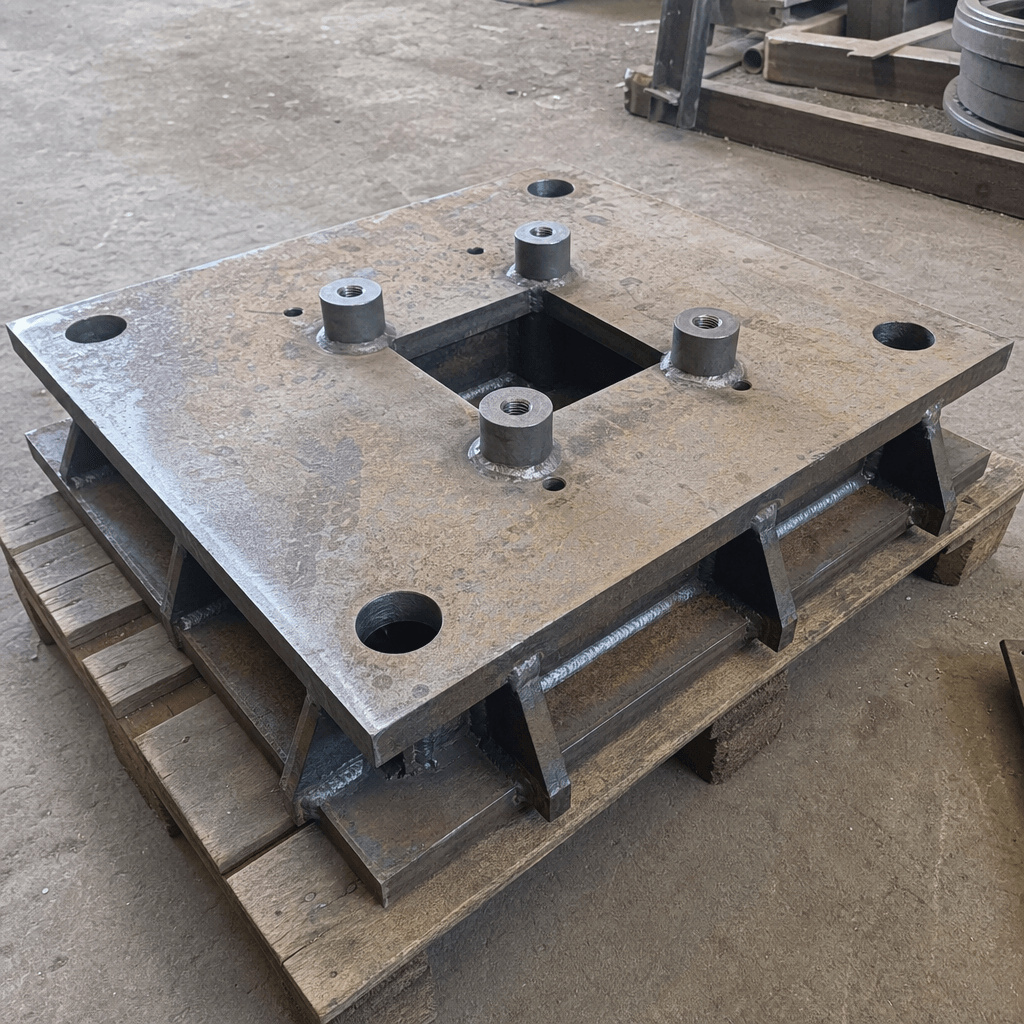

Cut from IS 2062 Grade A / ASTM A36 structural mild steel plate, typically 20–40 mm thick; heavily loaded drum-end columns may use 50 mm plate. All bearing faces are milled flat to ±0.3 mm. Anchor-bolt holes are NC-drilled to H11 tolerance. Surfaces are blast-cleaned to Sa 2.5 and coated with two-pack epoxy for below-plinth durability. Levelling bolt bosses are machined and tapped M20–M30 where specified. Stiffening ribs are full-penetration fillet welded on plates exceeding 400 × 400 mm footprint.

When to replace

• Visible corrosion or section loss at the concrete-to-plate interface, particularly at grout perimeter
• Cracking at column-to-plate weld toes under cyclic loading detected by visual or dye-penetrant inspection
• Elongated or corroded anchor-bolt holes reducing effective clamping force
• Frame settlement or levelness drift that cannot be corrected by shimming or re-grouting
• Grout washout around the plate perimeter leaving the plate unsupported in bearing
