Safety Guard

Function

A missing or damaged safety guard constitutes a regulatory non-compliance at virtually every project site and road-construction contract worldwide. Beyond personnel protection, guards prevent foreign objects — aggregate fragments, tools, insulation strands — from entering the chain-and-sprocket mesh zone, where they would cause tooth damage, chain stretch, or chain derailment. At the riding-ring zone, guards prevent aggregate overflow from the drum end from packing between the ring and roller, which causes abrupt force spikes and ring-face scoring. Guard condition must be verified at every pre-shift inspection as a non-negotiable operational requirement.

Construction & quality

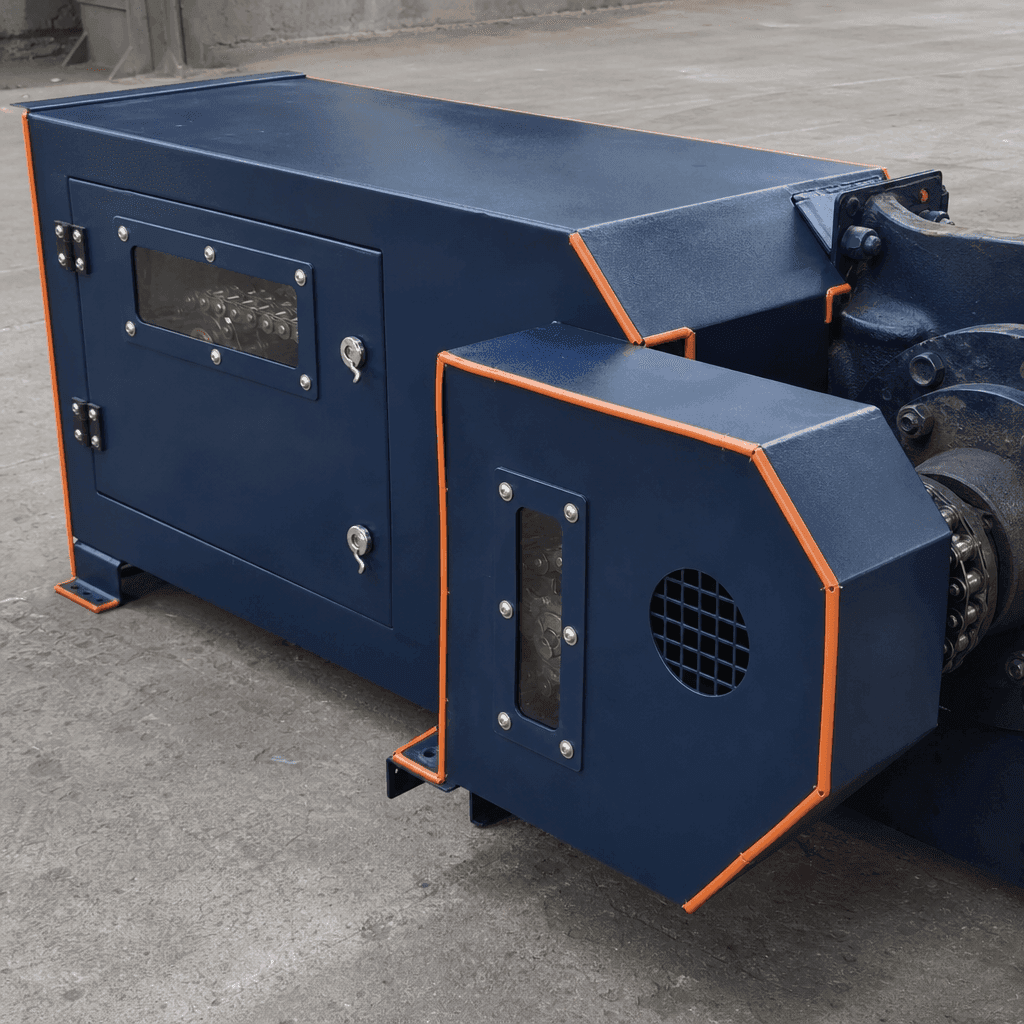

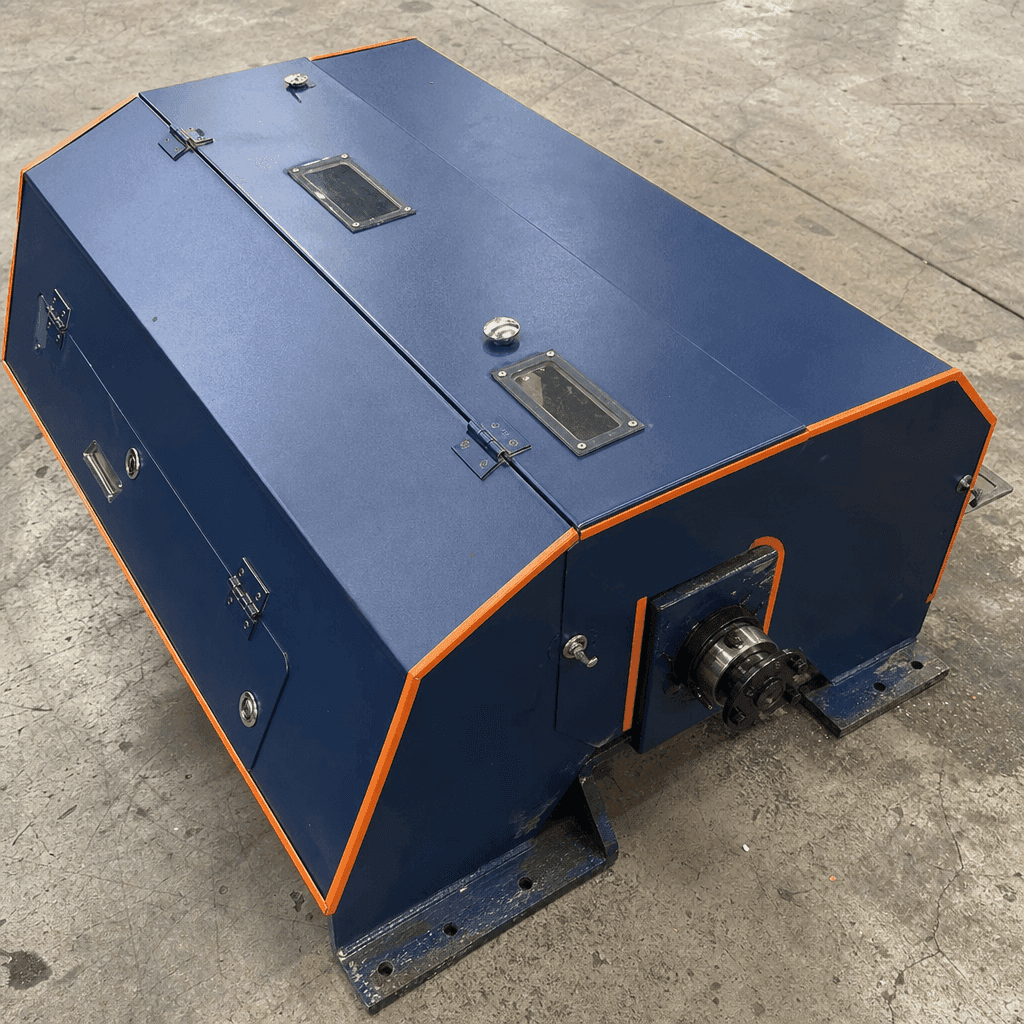

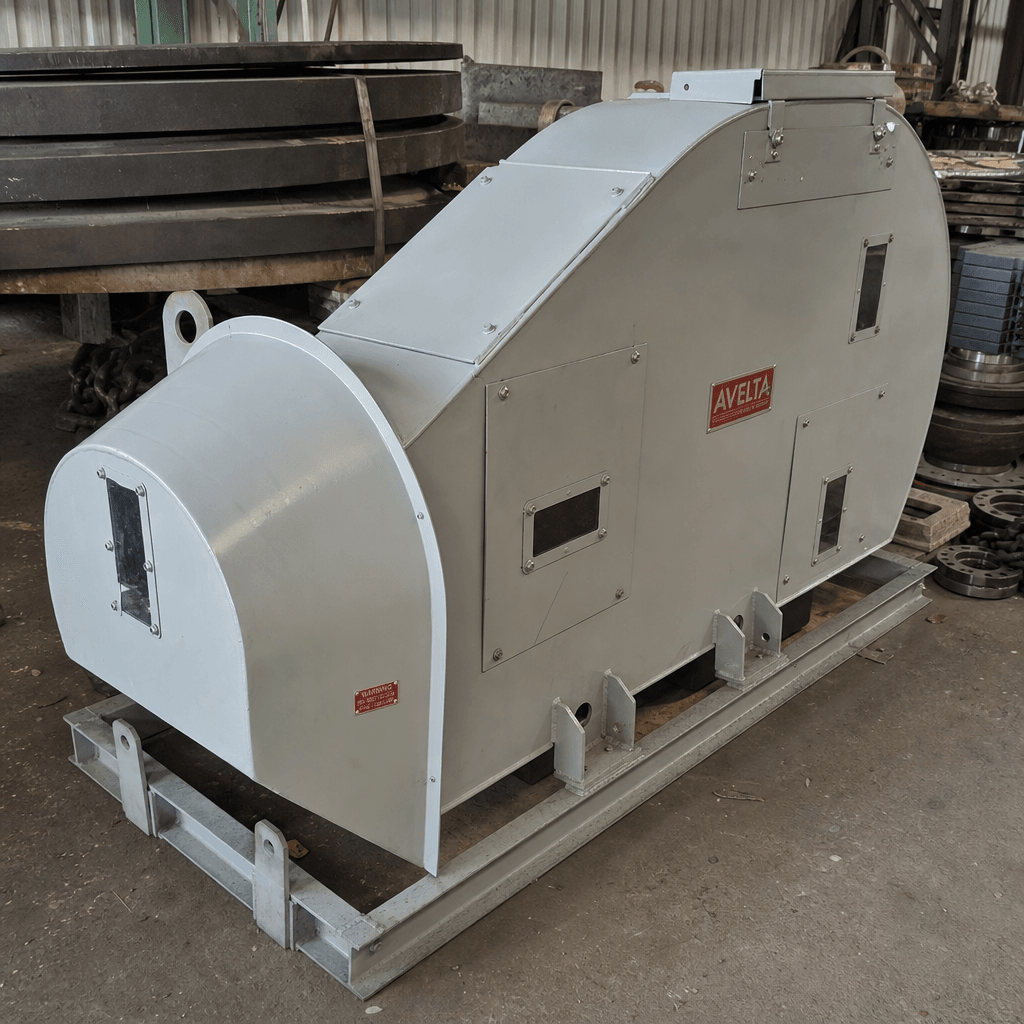

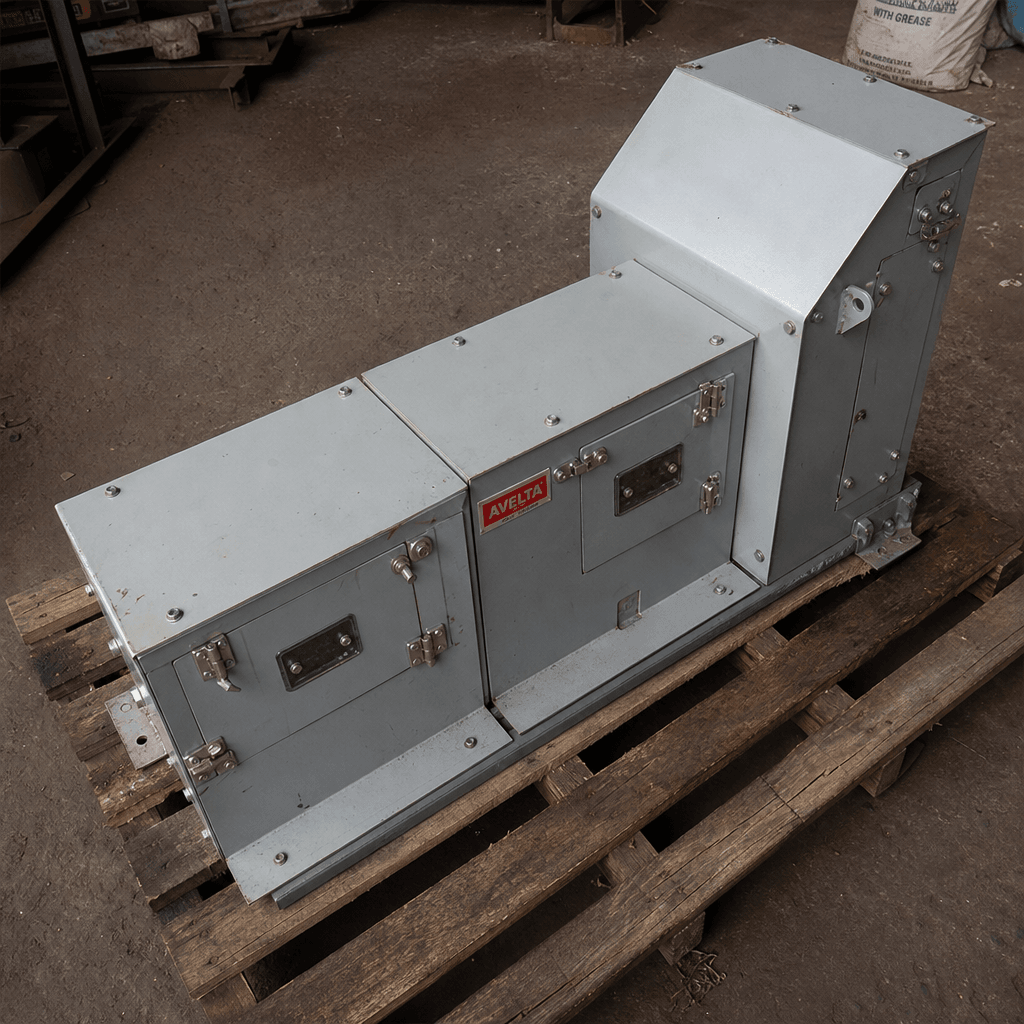

Guard panels fabricated from 2–3 mm cold-rolled mild steel sheet for coupling and chain-inspection zones, and 4–6 mm structural plate for the riding-ring and high-torque chain drive guard enclosures. All edges are folded or fitted with PVC edge trim to eliminate sharp contact hazards. Hinged access panels use captive quarter-turn stainless fasteners for lubrication access without tools. Inspection ports are fitted with 50 × 100 mm toughened polycarbonate windows (3 mm thick) held in rubber gaskets, allowing visual chain inspection with the guard closed. Guard framework: 40 × 40 × 4 mm angle iron, bolted to the base frame or support structure. Surface finish: degreased, two-pack epoxy paint, signal yellow RAL 1003 conforming to machinery safety colour coding.

When to replace

• Dents or through-holes in panels from aggregate projectile impact or maintenance incidents
• Fastener failure causing panels to rattle or lift away from the frame during drum operation
• Polycarbonate inspection windows cracked, yellowed, or opaque from UV or bituminous fume exposure
• Corrosion at folded panel edges in high-humidity or coastal site environments
• Hinge failure causing the guard door to sag open during plant operation
