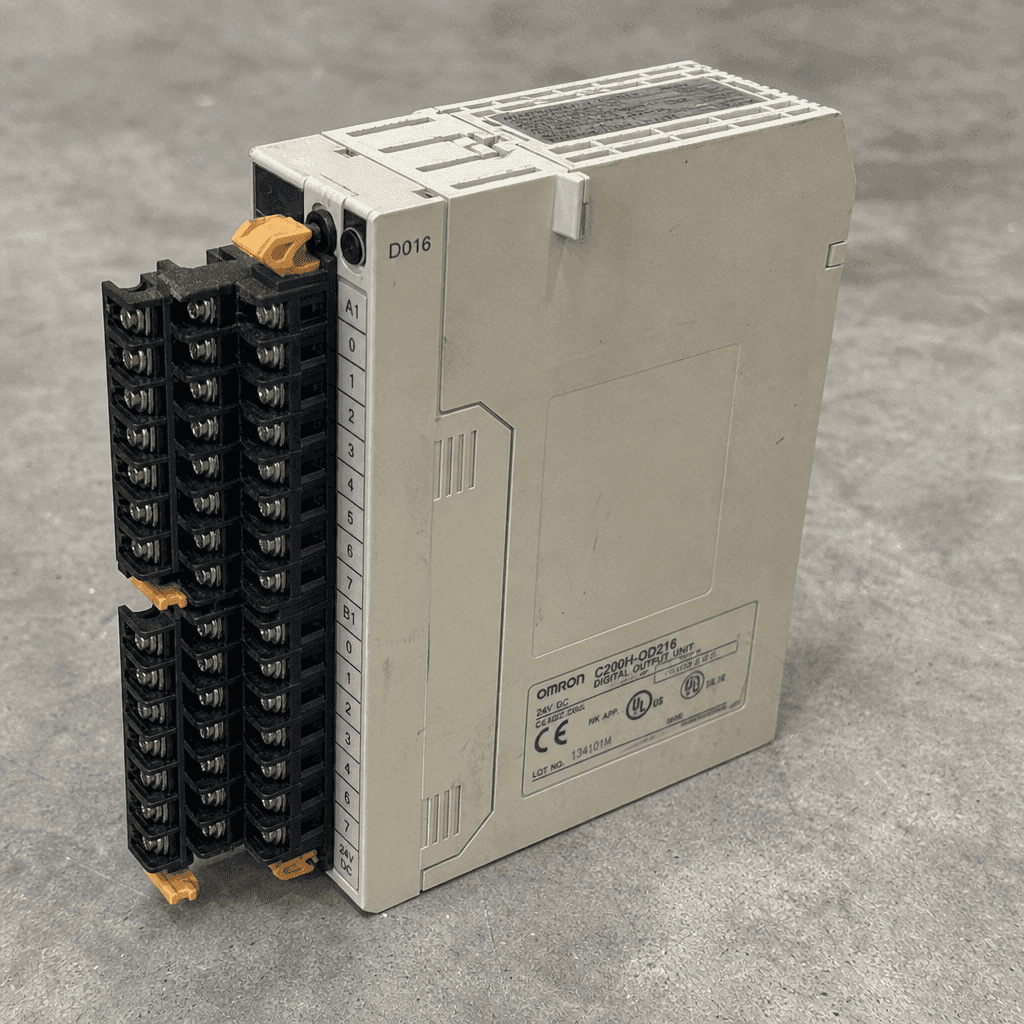

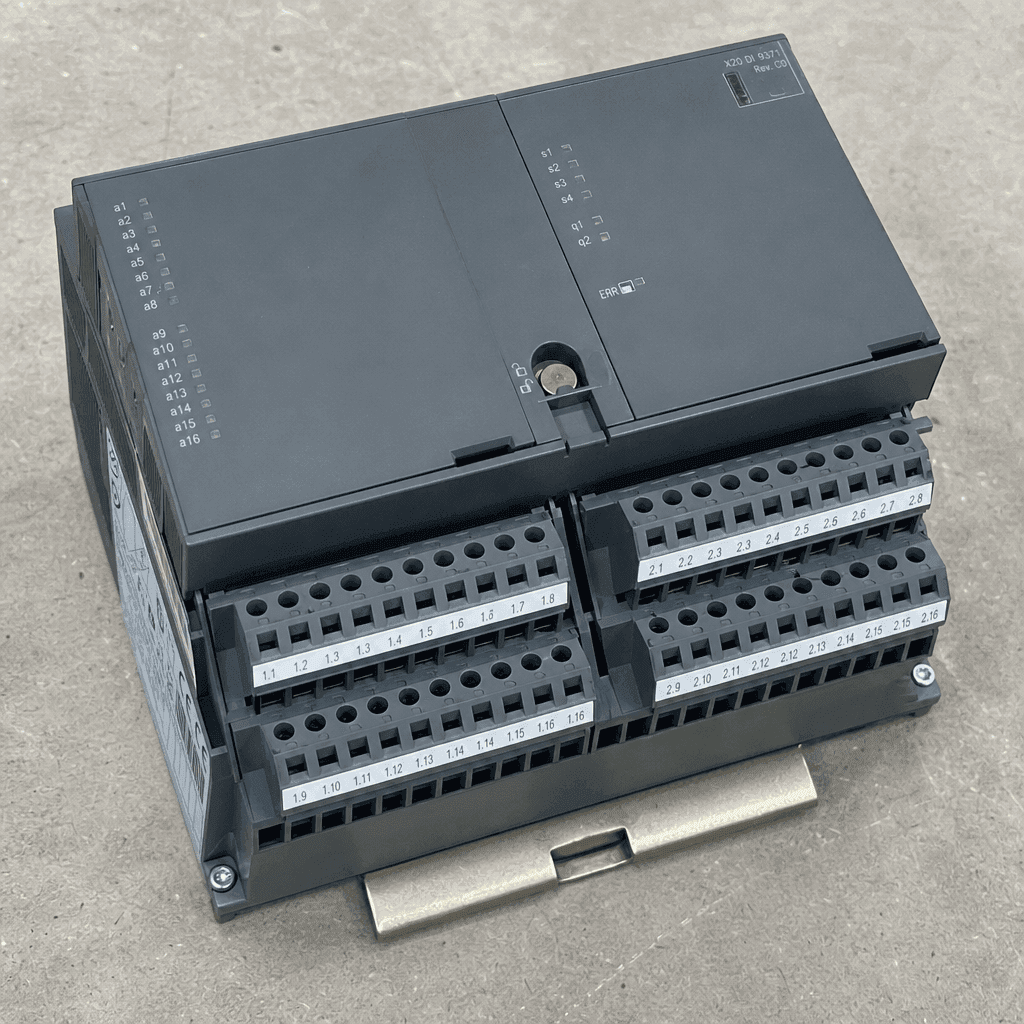

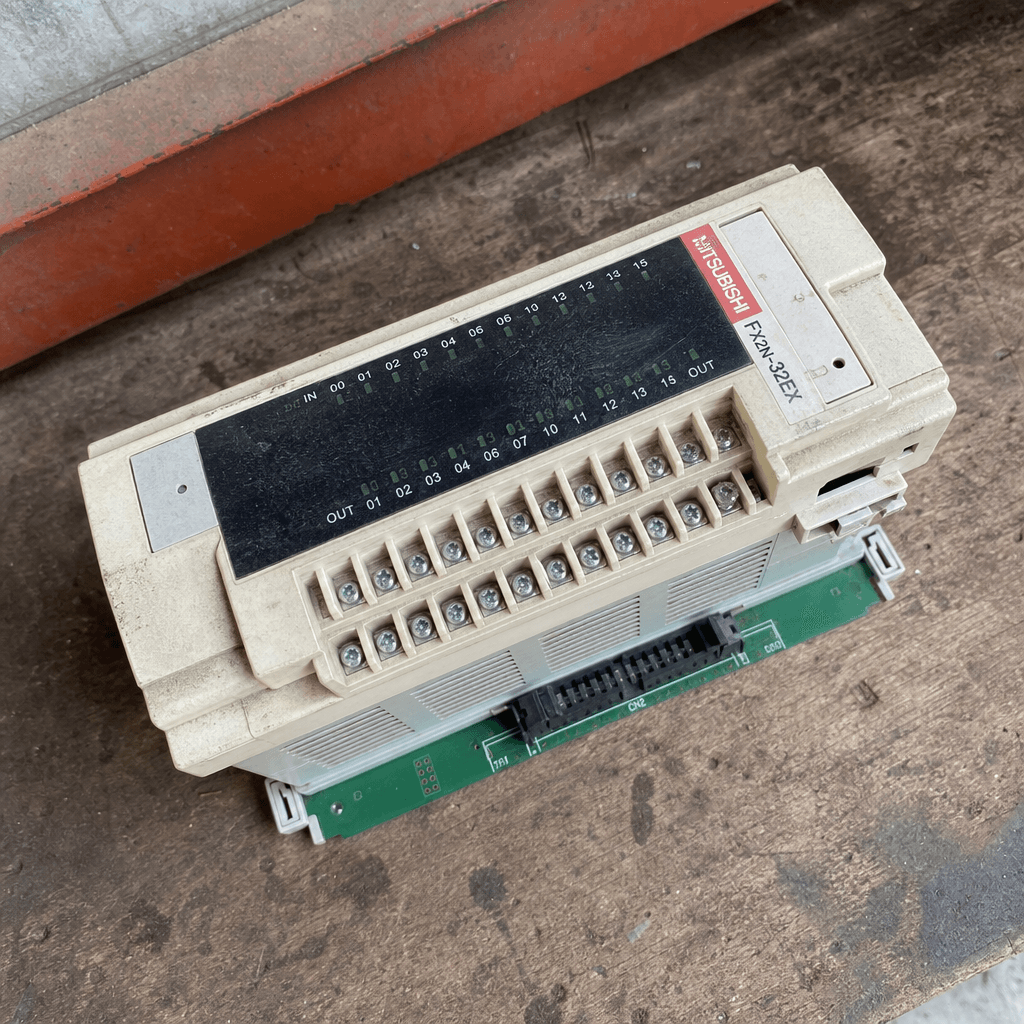

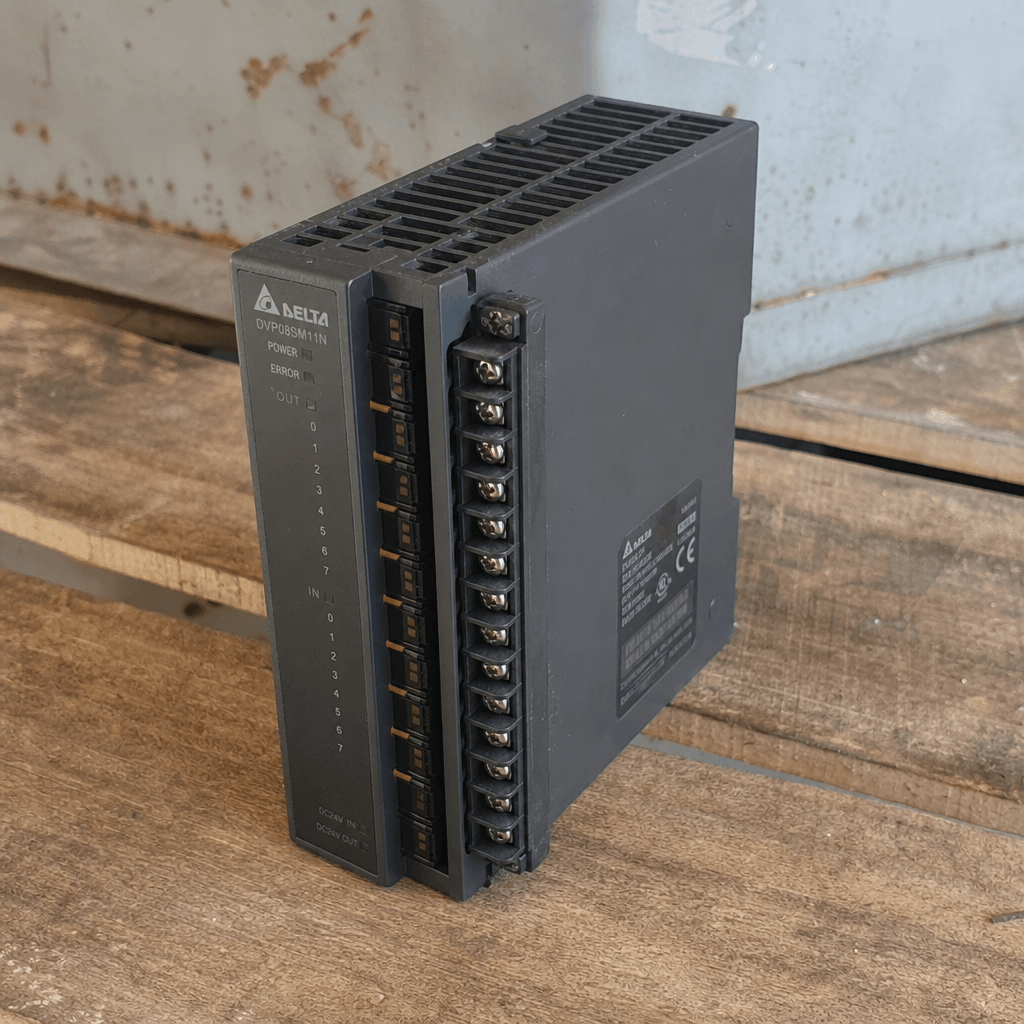

PLC I/O Expansion Module

Function

Every field signal in the plant — every sensor reading, every actuator command, every interlock — passes through an I/O module. A failed I/O module produces one of two equally critical faults: loss of sensor feedback (the PLC operates blind on the affected channels, potentially driving the plant outside safe operating parameters) or loss of actuator control (the PLC cannot command a burner, pump or conveyor, forcing a production shutdown). I/O module faults are typically identifiable within minutes through PLC fault codes and module faceplate LED diagnostics, but replacement requires a correctly matched module to avoid extended reconfiguration and re-commissioning. Holding the correct spare module on-site converts an I/O failure from a multi-day delay into a two-to-four hour swap.

Construction & quality

Industrial-grade PLC I/O modules conforming to IEC 61131-2 for environmental and electrical immunity. Digital input modules: optocoupler-isolated inputs, rated 24 V DC, 5 mA per channel, response time ≤ 1 ms, 8 or 16 channels per module. Digital output modules: transistor (PNP) 24 V DC / 0.5 A per channel or relay output 250 VAC / 2 A per channel. Analogue input modules: 12-bit or 14-bit resolution, 0–20 mA / 4–20 mA / 0–10 V selectable per channel, accuracy ±0.1 % full scale. Thermocouple input modules: Type K/J/T/N selectable, 16-bit resolution, cold-junction compensated. All modules are rated for –20 °C to +60 °C operating temperature, IP20 protection at the terminal strip.

When to replace

• PLC diagnostic fault code referencing a specific I/O module communication error or hardware fault, with module fault LED active.
• Multiple adjacent field signals on the same module simultaneously reading zero, full-scale or random values.
• Intermittent loss of control on one group of actuators — all connected to the same module — during vibration or temperature extremes.
• Module RUN LED extinguished or FAULT LED permanently lit during normal plant operation.
• Burn marks, swollen components or electrical odour at the module terminal strip, indicating arcing or moisture ingress.
