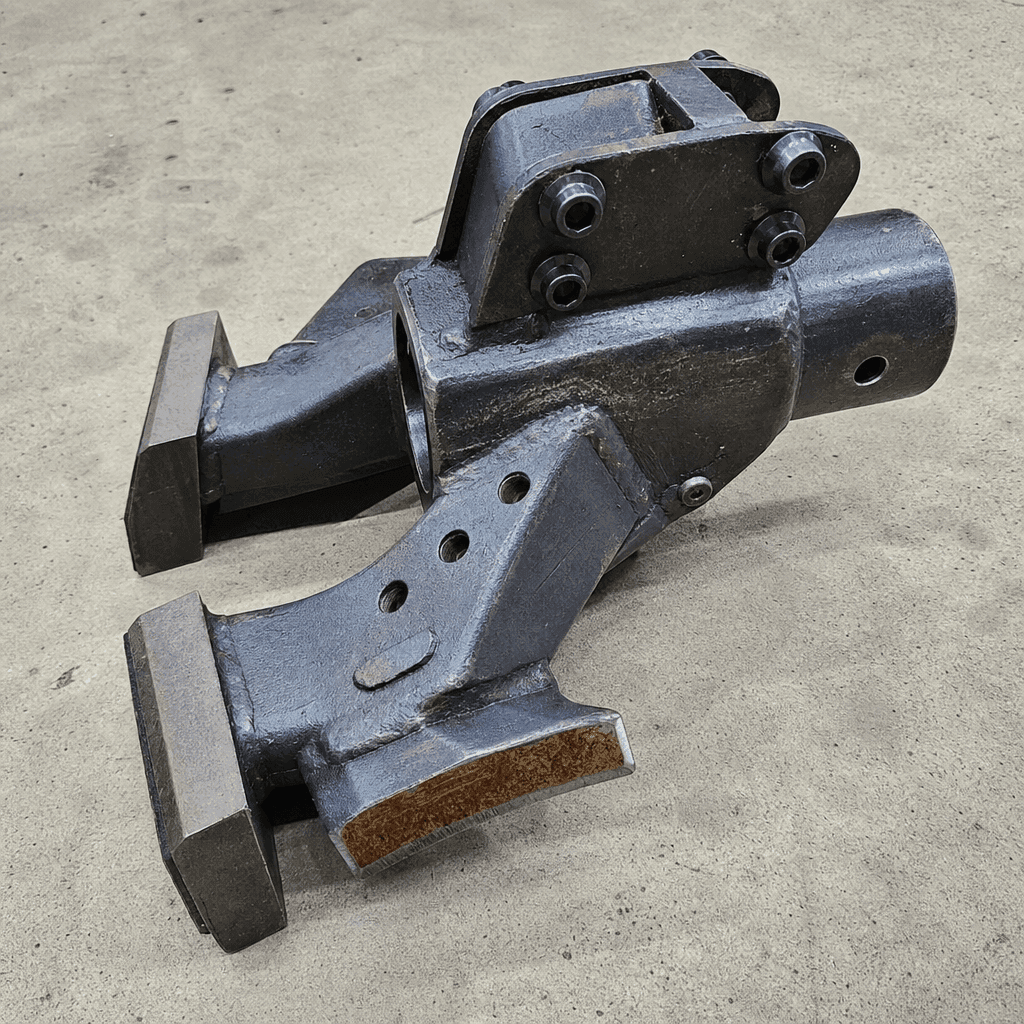

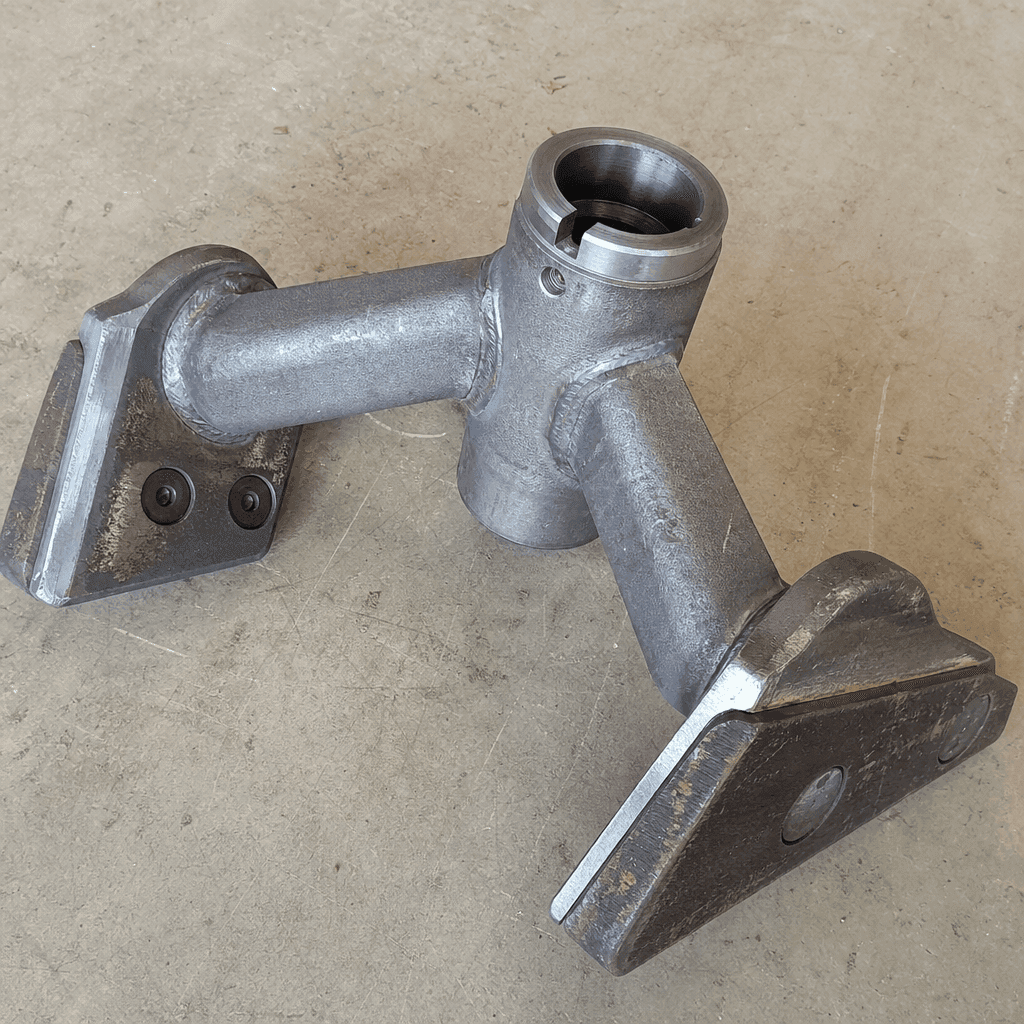

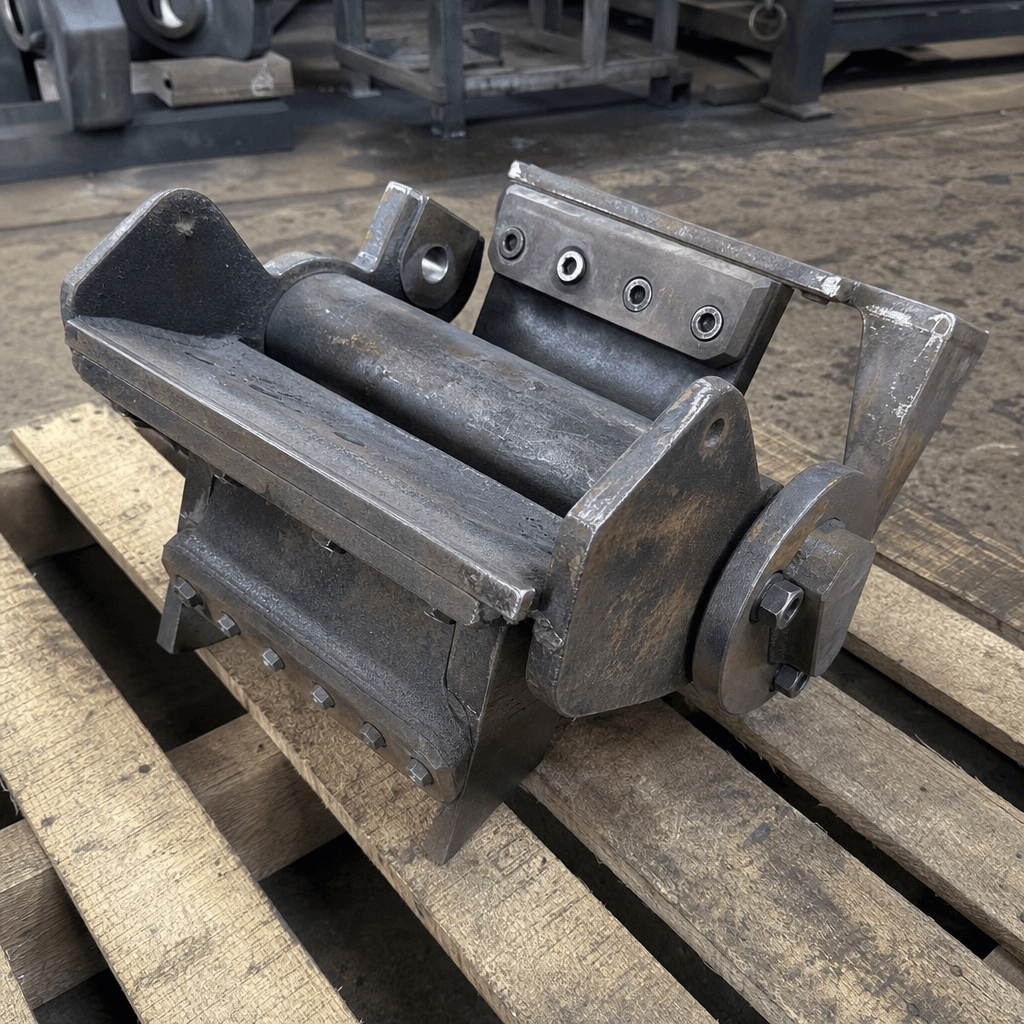

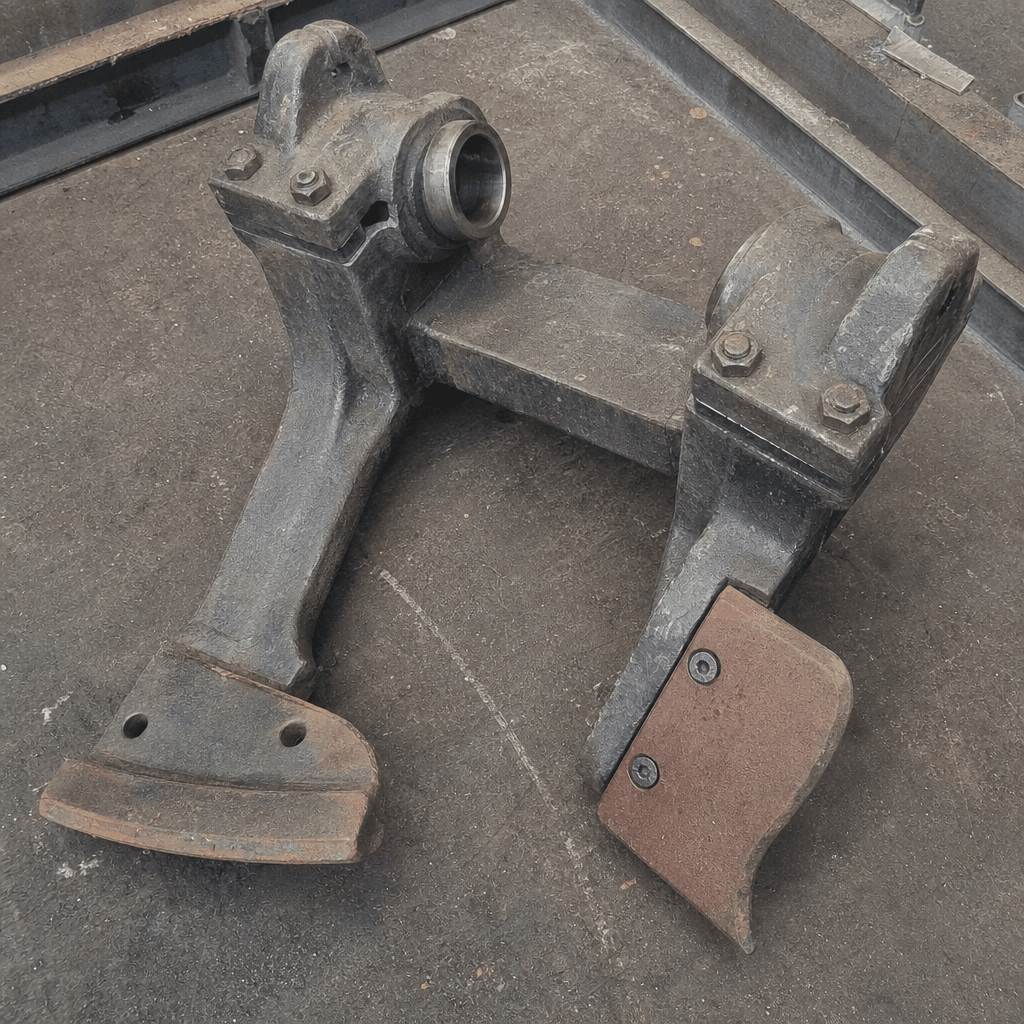

Twin-Shaft Mixing Arm Assembly

Function

The mixing arms sweep aggregates, cement, water, and admixtures through the turbulent intersection zone, achieving homogeneous dispersion of all constituents within a 30–60 second intensive mixing cycle. Arm angle, tip geometry, and shaft speed collectively govern output consistency; worn or misaligned arms extend cycle times, raise specific energy consumption, and compromise workability uniformity across consecutive batches. Because the arms directly contact coarse aggregate and crushed stone at every revolution, wear rate is a function of aggregate hardness and feed gradation — making material selection critical to maintenance intervals and cost-per-tonne.

Construction & quality

Arm bodies are machined from EN 8 or equivalent medium-carbon steel forgings to ensure a dense, fatigue-resistant structure. Tips are cast from Hadfield high-manganese steel (Mn 13–14 wt%, HB 180–220 as-cast, work-hardening to HB 450+ under aggregate impact) or fitted with Hardox 400 bolt-on wear inserts for high-silica aggregate applications. Mounting bores are precision-machined to H7/k6 shaft fits with all critical dimensions held to ±0.05 mm. Fasteners are grade 10.9 socket-head cap screws with prevailing-torque locking. Assemblies are deburred, shot-blasted, and epoxy-primed to a minimum 60 µm DFT before dispatch. Replacement tips are supplied as bolt-on units for in-situ change without shaft removal.

When to replace

• Tip thickness reduced to 70% or less of original profile on dimensional check
• Visible cracking, spalling, or delamination at the arm-to-tip interface
• Mixing cycle time increasing at constant batch composition without process cause
• Asymmetric wear pattern generating shaft vibration or elevated bearing temperature
• Concrete workability variance between consecutive batches from the same design
