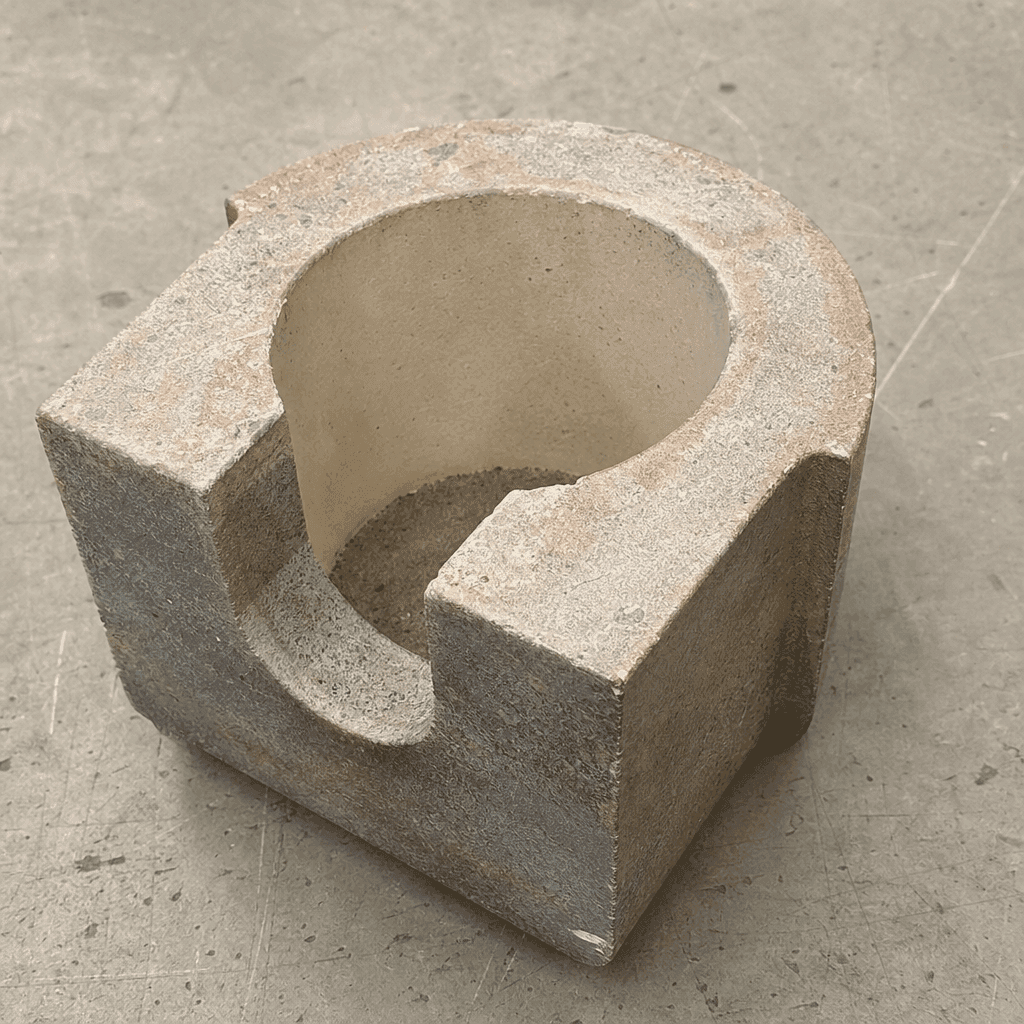

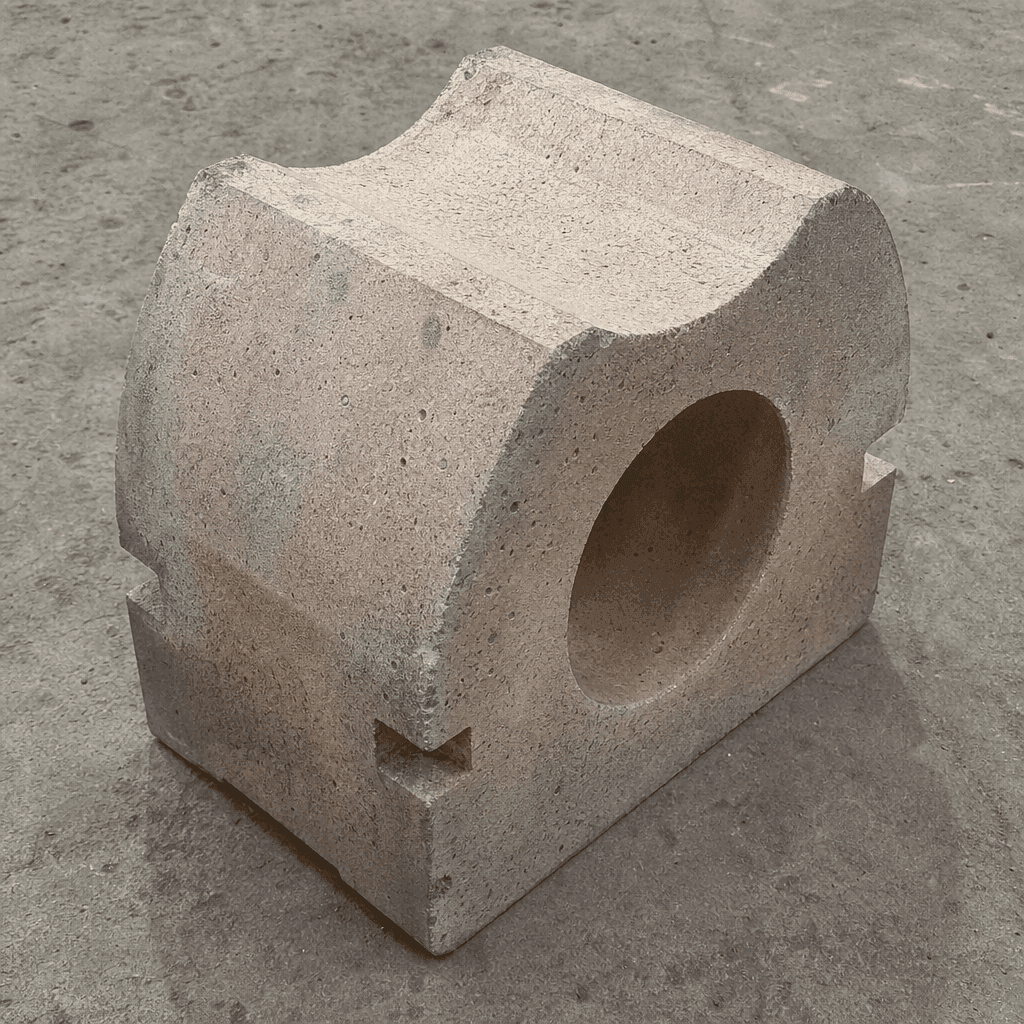

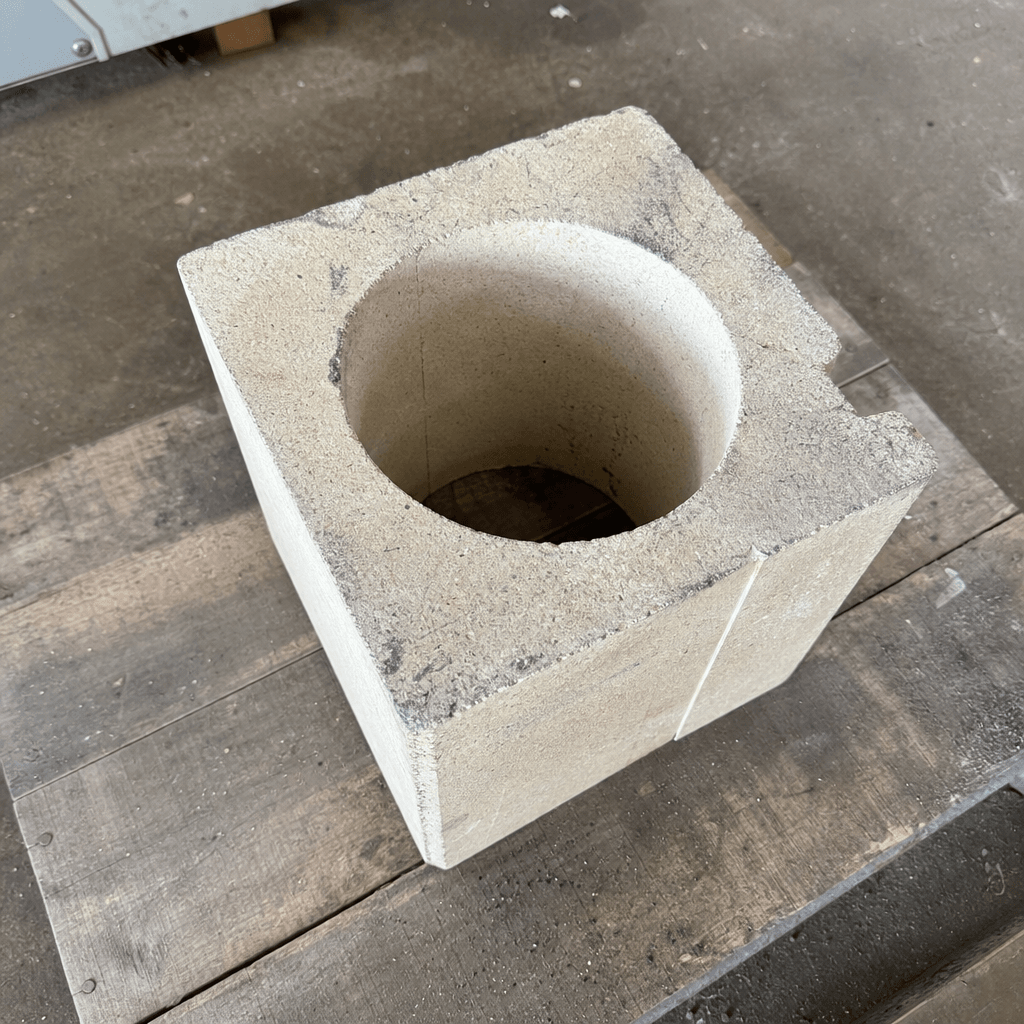

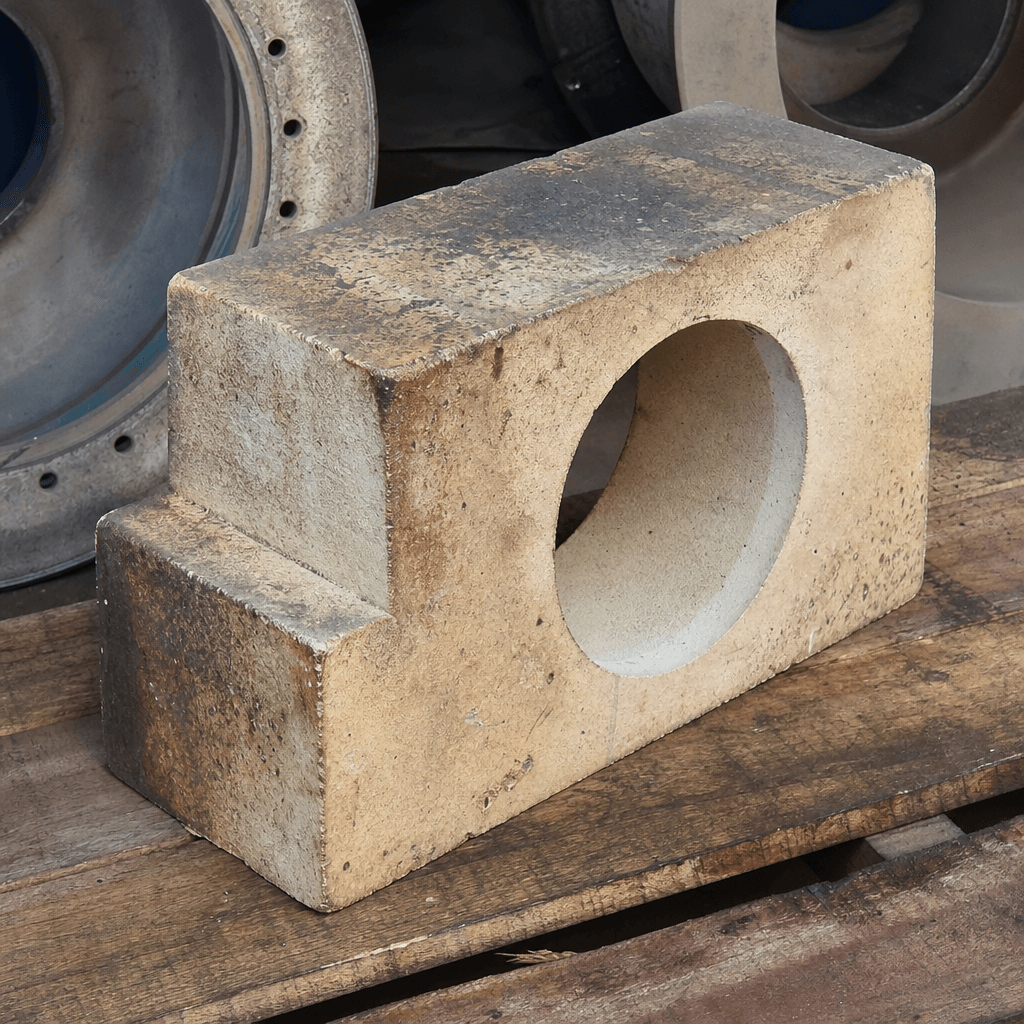

Burner Throat Refractory Block

Function

Without a functional refractory block, the metal burner throat and drum end-plate would be exposed to direct flame temperatures far exceeding their structural limits, leading to rapid warping, burn-through and unplanned plant shutdown. The refractory absorbs and re-radiates heat, stabilises the flame root and supports complete, stable combustion across the plant's load range. A cracked or spalled block introduces cold-air infiltration around the burner assembly, destabilising the air-to-fuel ratio, driving up emissions and creating localised hot spots that accelerate wear on adjacent metal components. Prompt block replacement is among the most cost-effective preventive interventions on the heating circuit.

Construction & quality

Manufactured from high-alumina refractory (Al₂O₃ ≥ 70 %) with a bulk density of 2 200–2 400 kg/m³. Blocks are either vibration-cast in a precision steel mould or dry-pressed and kiln-fired to full density. Maximum continuous service temperature is 1 400 °C (2 552 °F). Thermal conductivity at 1 000 °C: 1.2–1.8 W/(m·K), providing effective insulation behind the working face. The inner bore is cast or machined to the burner-specific diameter with ±1 mm tolerance. Blocks are individually moisture-sealed in polyethylene wrapping for transit and supplied with a joint castable compound and fitting instructions.

When to replace

• Visible cracks, spalls or voids on the inner bore face of the block.
• Discolouration or scorching of the drum end-plate or burner mounting flange indicating heat bypass around the block.
• Elevated drum shell temperature at the burner end, detected by IR thermometer scan.
• Increasing difficulty maintaining stable flame at normal fuel-pressure settings.
• Visible flame asymmetry or distortion through the burner sight glass.
