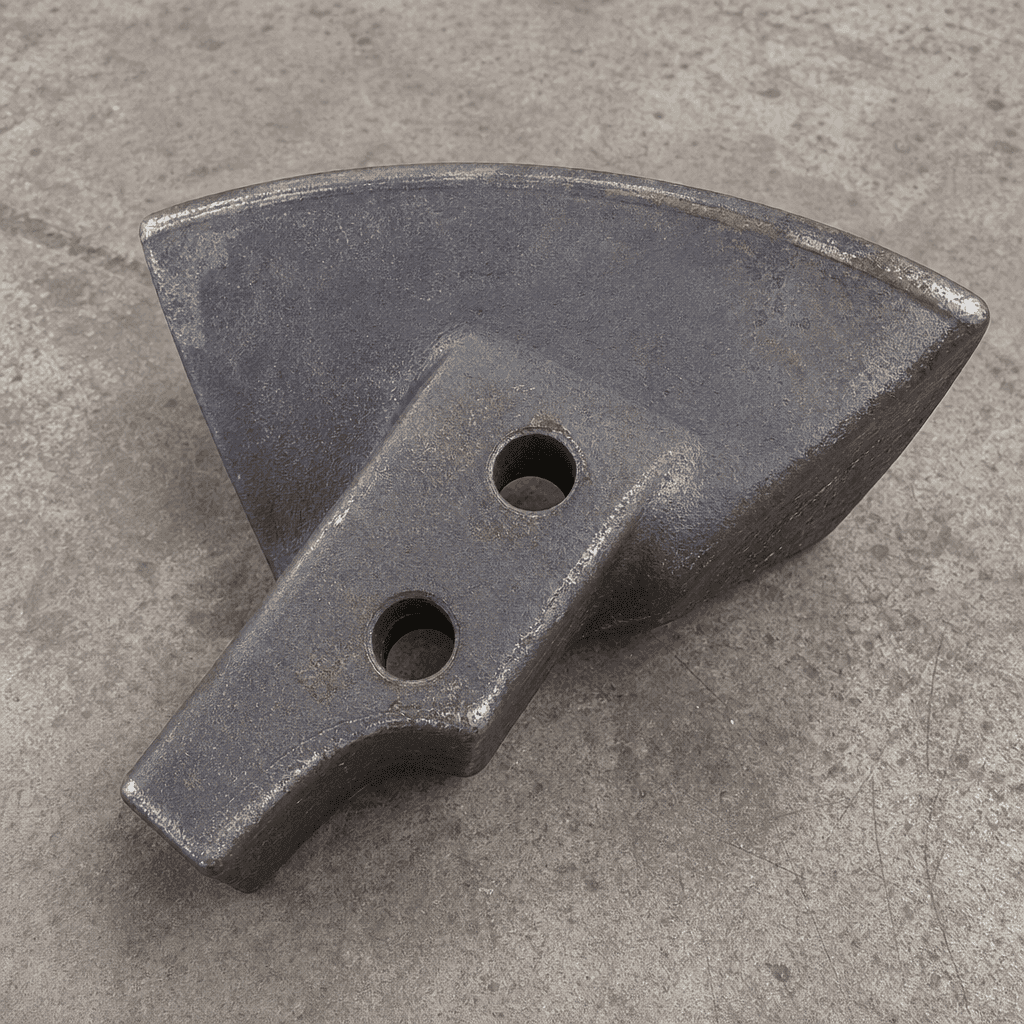

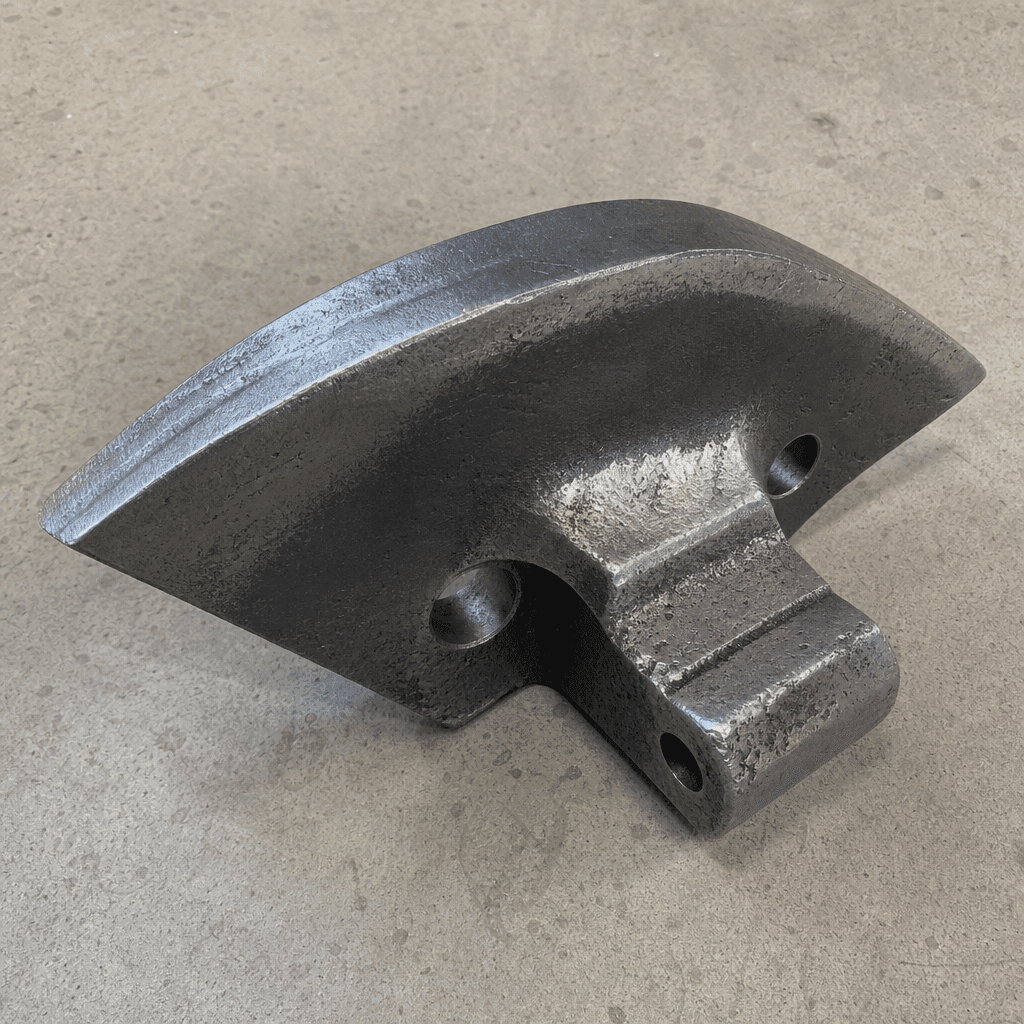

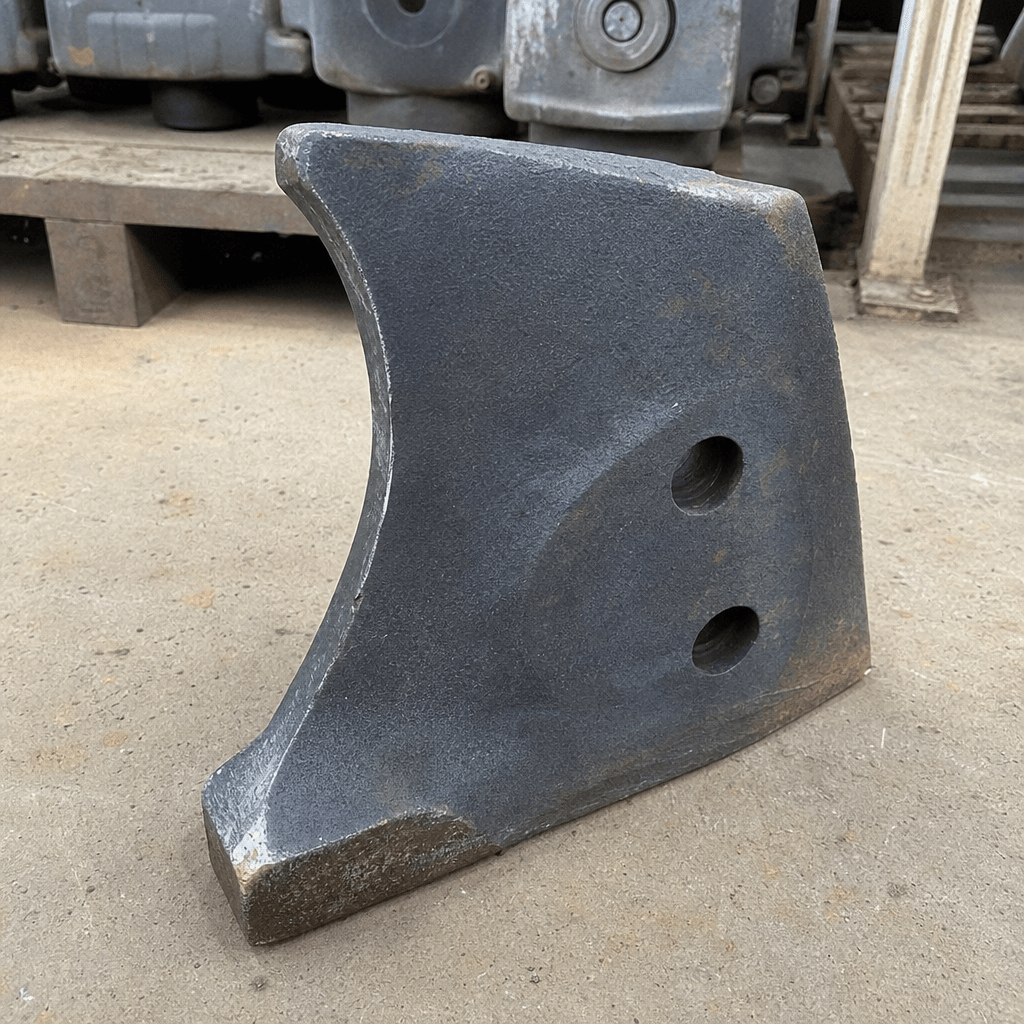

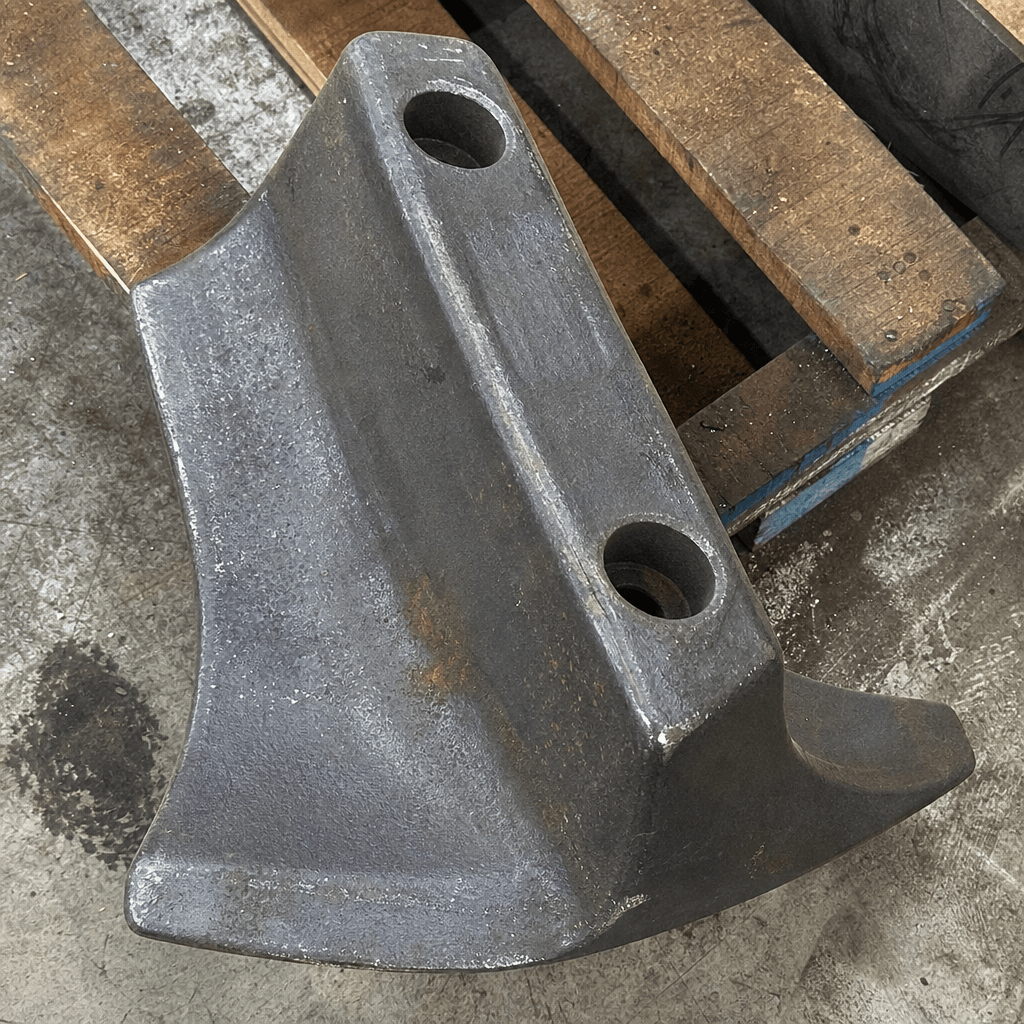

Pugmill Mixing Paddle Tip

Function

Paddle tips impart both velocity and shear to the aggregate-bitumen charge. Their swept geometry determines how thoroughly each aggregate particle is coated with bitumen in the available mixing time — typically 30–60 seconds per batch or calculated retention time in continuous pugmill designs. A worn tip loses material volume, reducing the effective swept radius and creating under-mixed zones where aggregate particles receive insufficient binder coating. Incompletely coated aggregate leads to asphalt mix deficient in binder film thickness, reducing pavement durability and expected service life. Tips are a low-cost, high-frequency replacement item — their timely replacement protects the far more expensive paddle arm and shaft from direct aggregate contact.

Construction & quality

Cast from high-chrome white iron (Cr 25–28 %, C 2.5–3.0 %) using lost-wax or shell-mould casting to achieve the precise curved blade geometry required for the pugmill design. Bulk hardness: 600–700 HBW (HV 650–720). Castings are heat-treated to develop a martensitic chromium-carbide microstructure (M7C3 carbide phase) that provides superior wear resistance in the combined impact-abrasion regime of a pugmill, outperforming plain high-manganese tips in this specific application. Bolt holes are accurately cored to maintain mounting concentricity. Each tip is individually weighed and mass-matched in sets to limit rotational imbalance on the paddle shafts.

When to replace

• Tip nose-to-arm-face length reduced by 20 % or more from new dimensions — measure with calipers at each scheduled service.
• Visible chipping, cracking or spalling of the chrome iron on any individual tip.
• Mix coating quality deteriorating — aggregate particles with uncoated faces visible in sampled mix at the pugmill discharge.
• Pugmill motor current or power draw increasing at constant production rate, indicating tips no longer moving material efficiently.
• Audible grinding or irregular heavy impacts from the pugmill chamber, suggesting worn tips making arm contact with aggregate.
