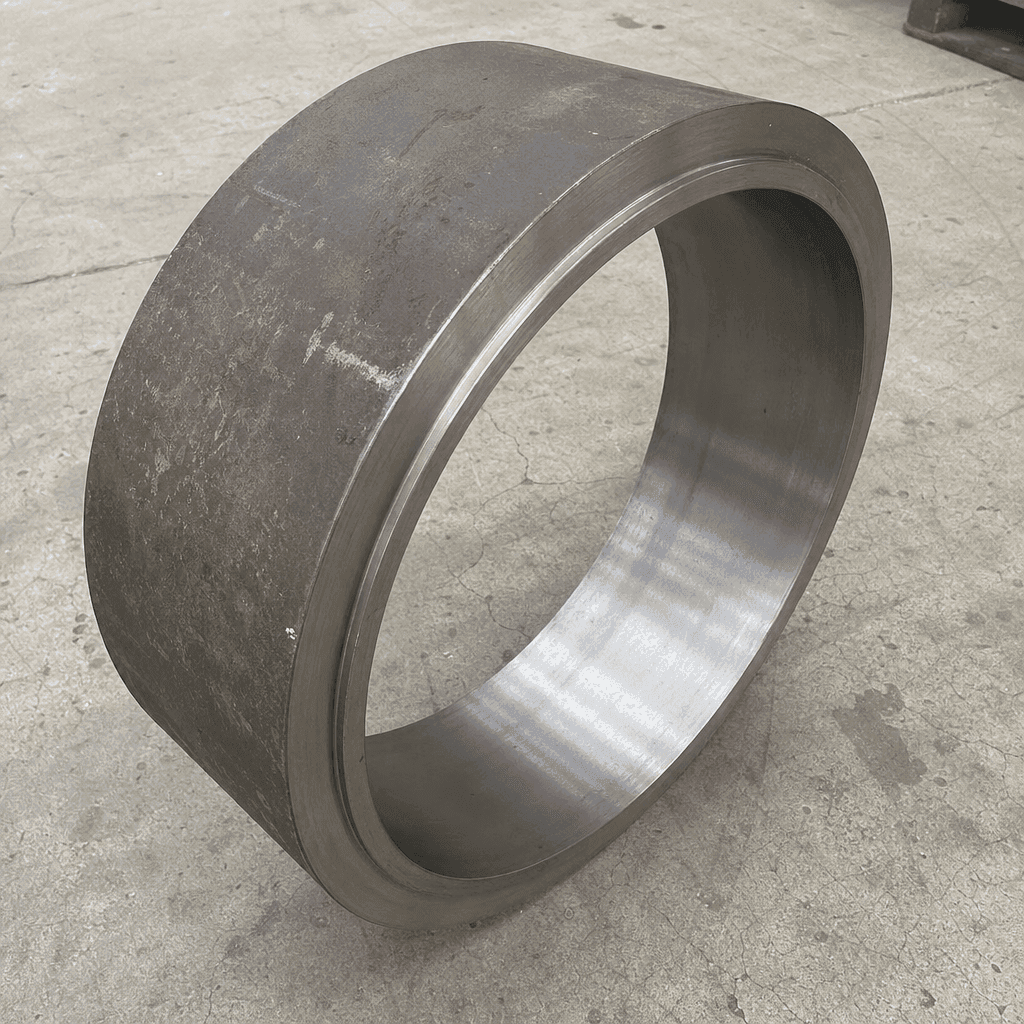

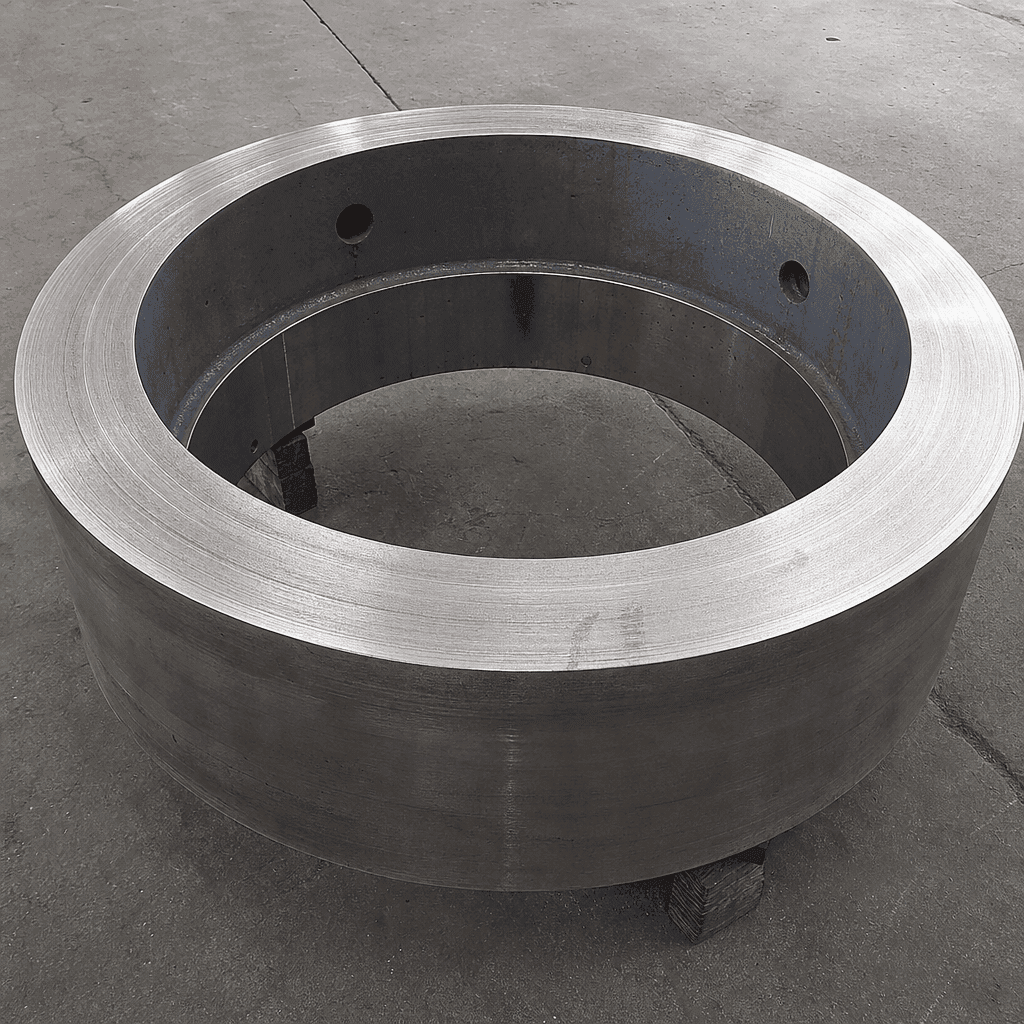

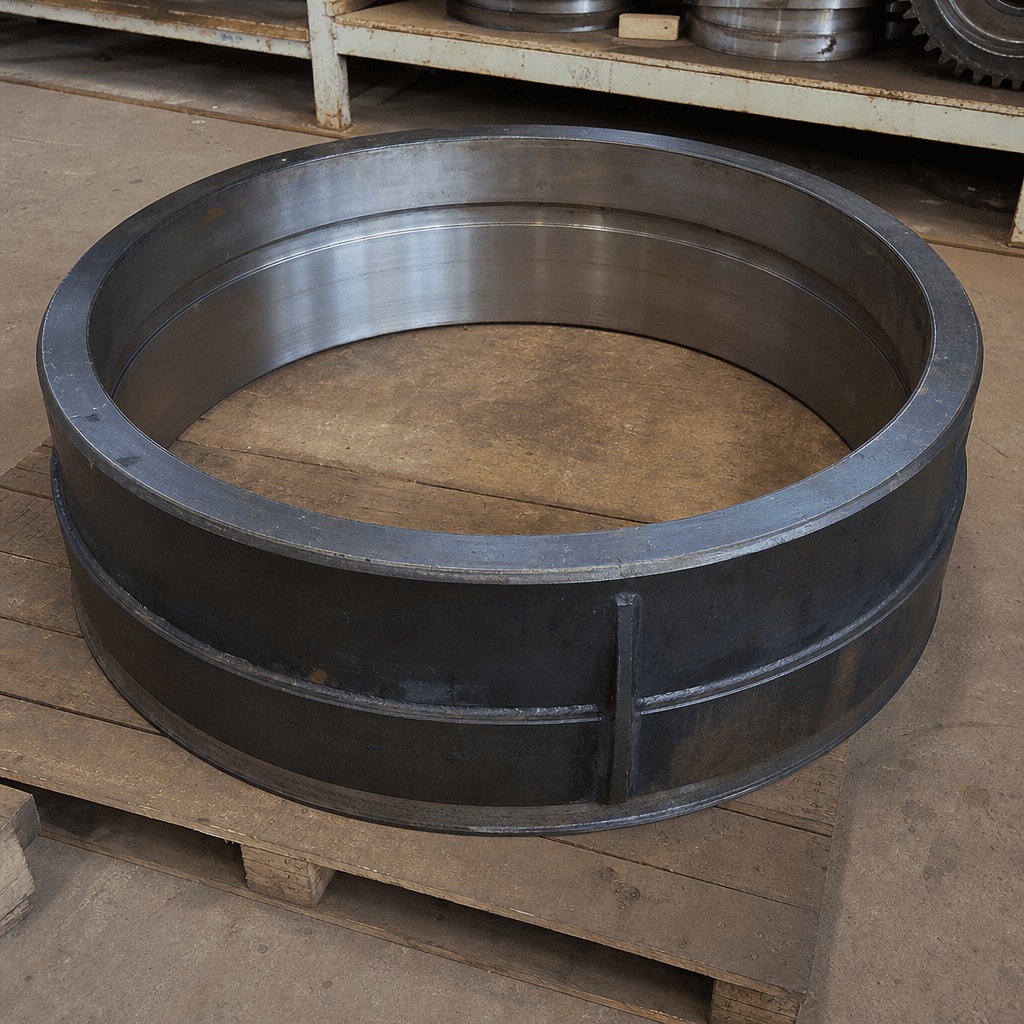

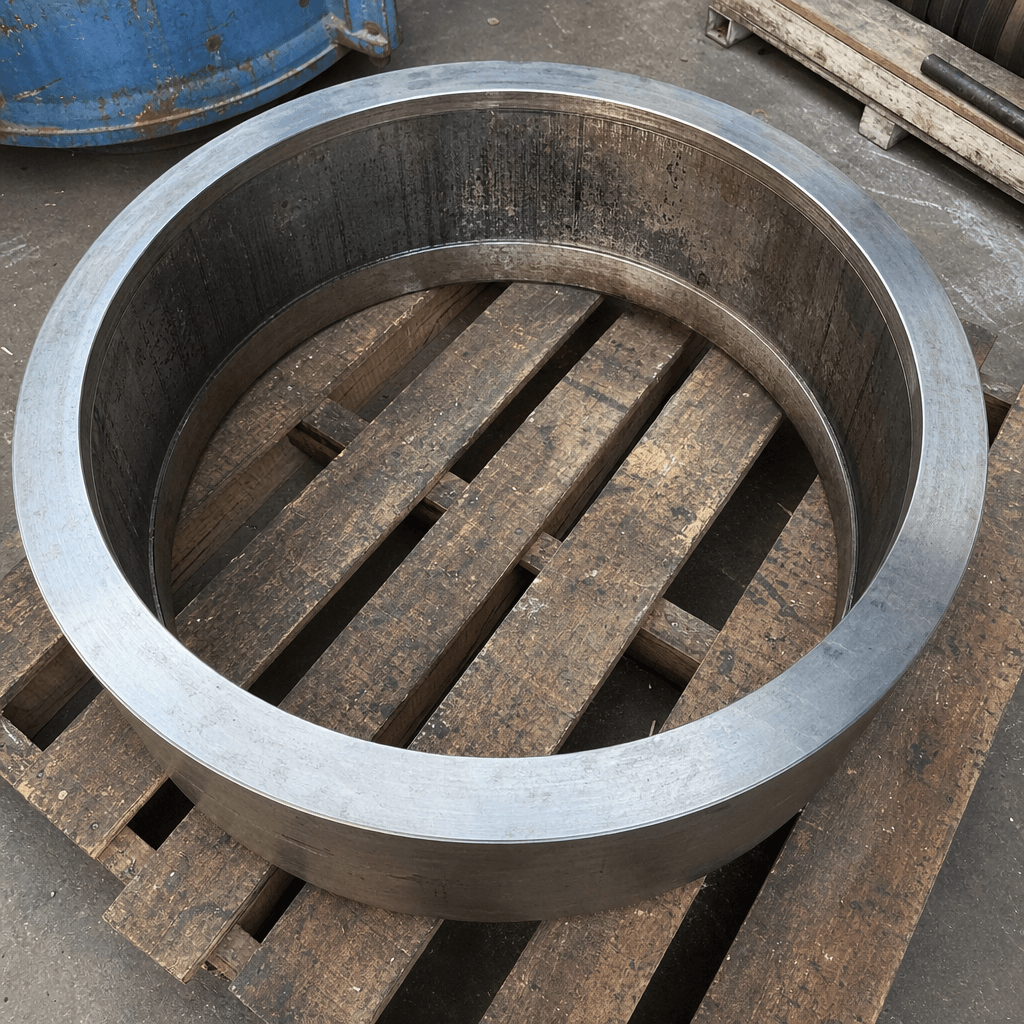

Drum Riding Ring (Tyre)

Function

The riding ring transmits the full dead and live load of the rotating drum to the fixed support frame via the support rollers, providing the precision running surface that enables smooth, low-vibration drum rotation at 5–15 RPM. Ring surface condition determines vibration level, roller wear rate, and bearing loads throughout the drum drivetrain. A worn, cracked, or oval riding ring causes differential loading across the paired rollers at each station, accelerating roller surface wear and bearing damage, inducing drum shell flexure and — if left uncorrected — eventual drum misalignment, seal failure, and catastrophic drivetrain damage.

Construction & quality

Cast from high-carbon alloy steel (equivalent to ASTM A148-90 Grade 90-60 or similar cast steel specification), or fabricated from rolled heavy-section structural plate, continuously submerged-arc welded and then furnace stress-relieved. Machined all over on a horizontal boring mill or CNC lathe to achieve face and bore tolerances of ±0.3 mm concentricity TIR. Running face width 200–450 mm, finished to Ra 3.2 µm. Face hardness 250–320 HB through heat treatment or normalisation. Bore fitted loosely to the drum shell (H7 class loose fit) with keyed dog blocks or lug retainers welded to the shell to prevent ring slippage.

When to replace

• Visible step wear, scoring, or pitting on the running face contact band
• Rhythmic radial wobble or periodic vibration pulse at one or both riding ring stations
• Uneven wear pattern on the paired support rollers — one roller wearing faster than its partner indicates ring eccentricity
• Crack indications at the ring bore or internal chamfer, detected by visual or dye-penetrant inspection during shutdown
• Ring slippage or rotation relative to drum shell (loose or fractured retaining dogs)
