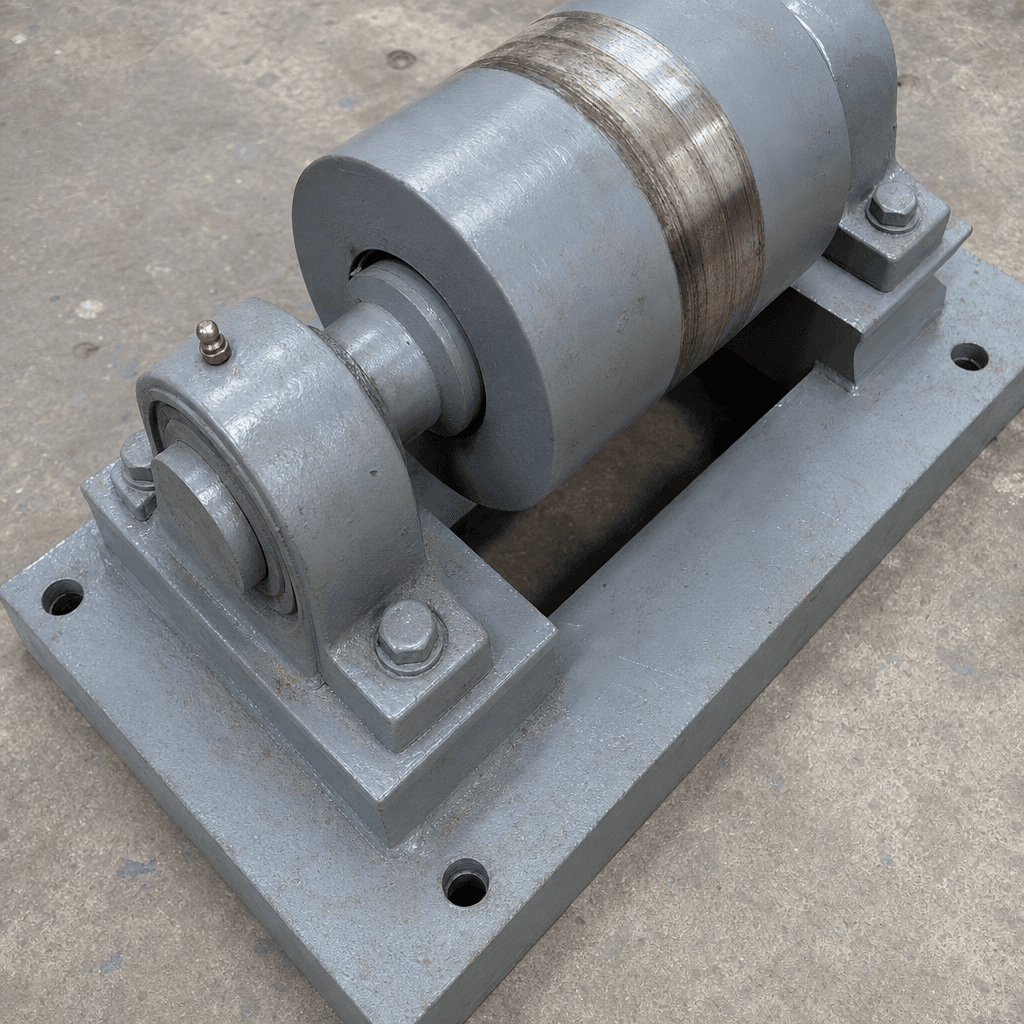

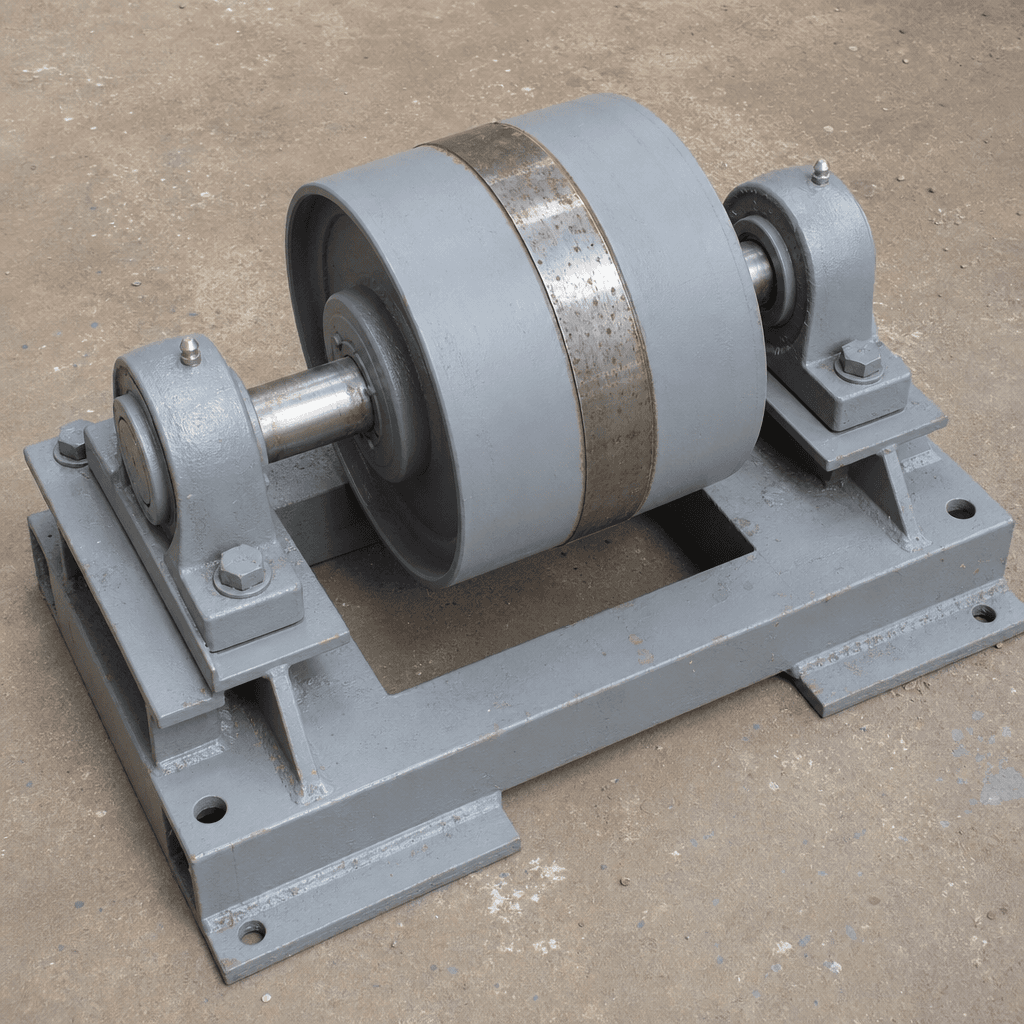

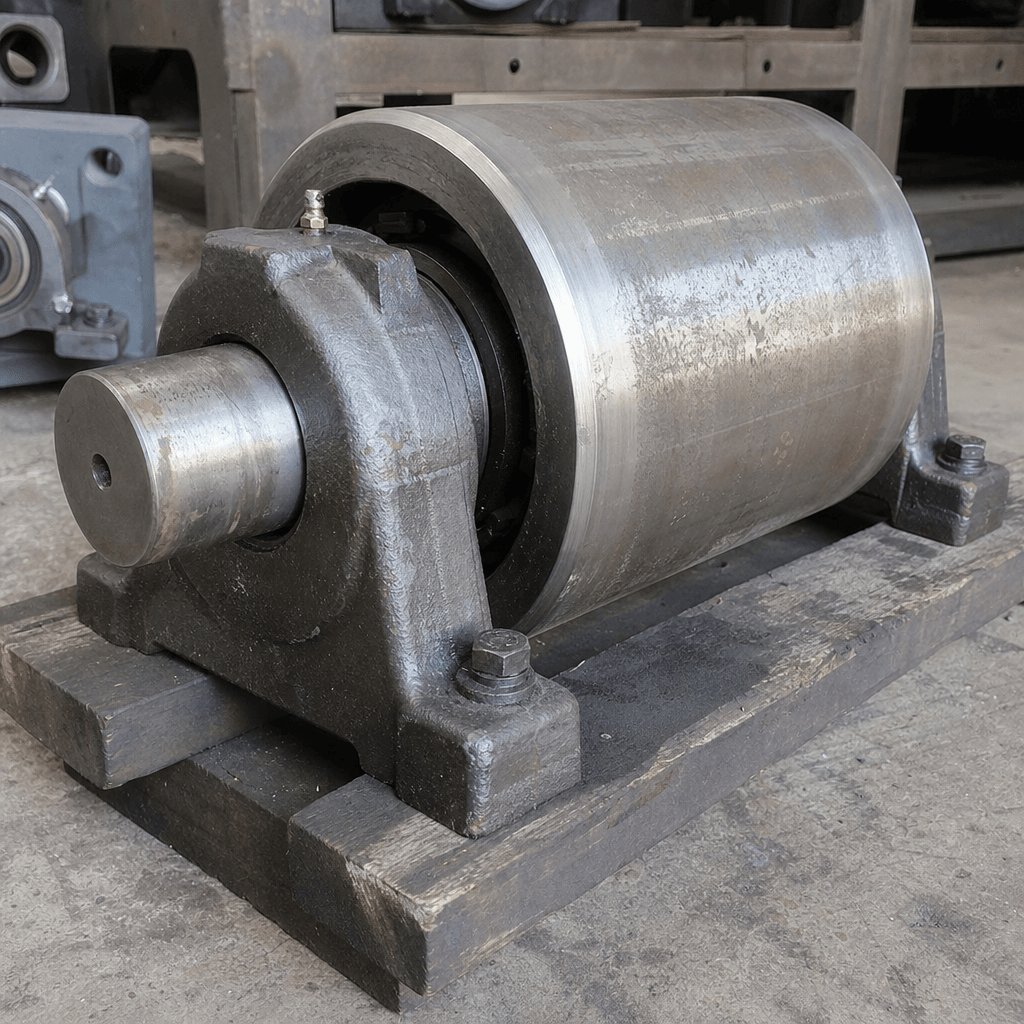

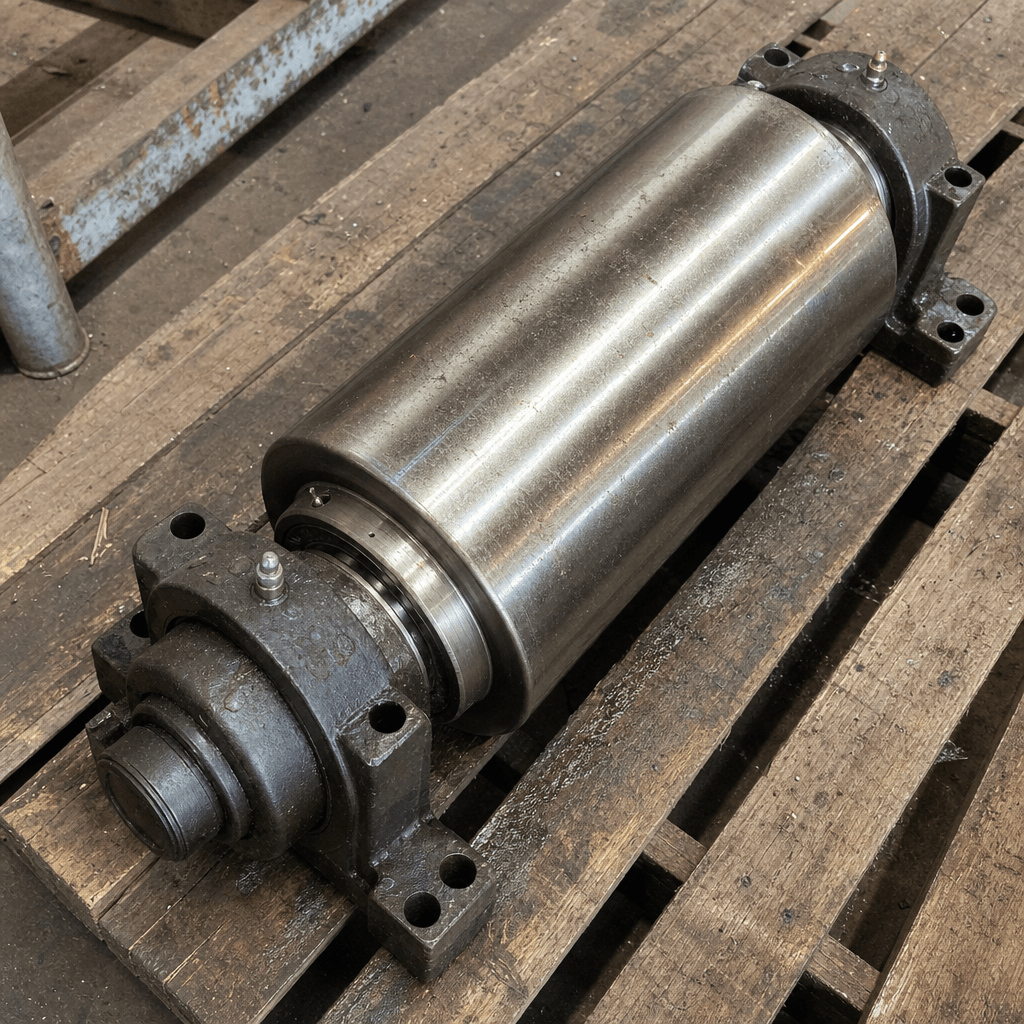

Drum Support Roller and Bearing Assembly

Function

Support rollers carry the drum's full dead and live load continuously over tens of thousands of operating hours. Worn or failed roller bearings cause drum sag, progressive riding-ring step wear, increased drive motor current, and — if allowed to progress — catastrophic drum drop. Roller surface wear transfers abrasion to the riding ring face, compounding replacement costs across both components. Maintaining roller surface hardness and bearing condition is therefore a direct cost-control measure as well as a safety requirement.

Construction & quality

Roller body: forged or cast alloy steel, machined to a crowned cylindrical profile (crown radius 3–5 m) to distribute contact stress across the roller face width. Surface induction-hardened to 52–58 HRC to a case depth of 5–8 mm, then cylindrically ground to Ra 1.6 µm. Shaft: 42CrMo4 or equivalent alloy steel, journal-ground to h5 tolerance. Bearing: self-aligning spherical roller bearing (ISO 22300 series), C3 internal clearance, grease-lubricated, with labyrinth inner seal and multi-lip outer contact seal, housed in a split or solid cast-iron plummer-block. Grease nipples on housing for in-service regreasing without dismantling. Operating grease: NLGI 2 high-temperature lithium-complex or polyurea bearing grease.

When to replace

• Audible rumble or growl from a bearing housing, increasing in intensity with drum load and operating hours
• Bearing housing surface temperature above 80 °C at 30 °C ambient measured by contact or IR thermometer
• Roller running face showing circumferential scoring, flat spots, or step-wear ridges from riding ring edge contact
• Grease purging past bearing seals that is discoloured black or contains metallic particles on inspection
• Drum riding ring showing asymmetric transverse wear pattern corresponding to a roller edge contact point
