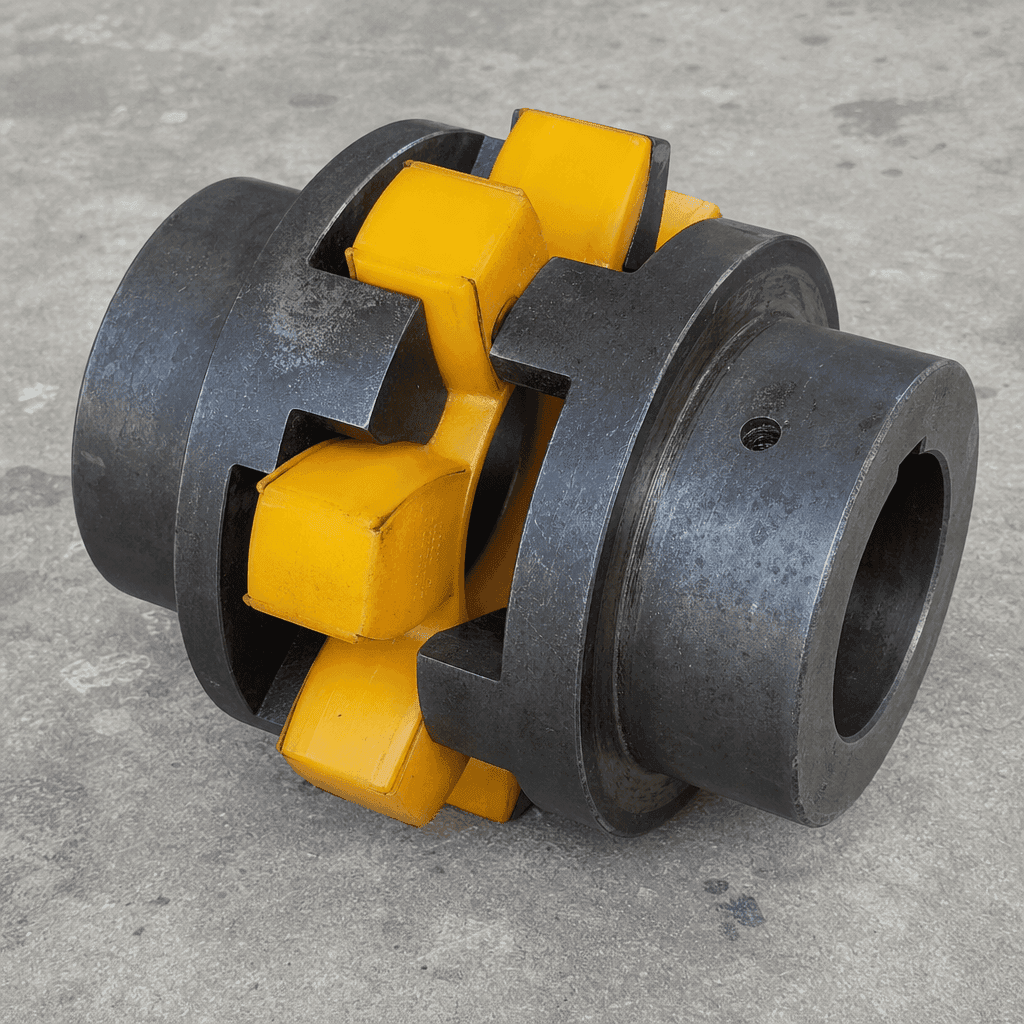

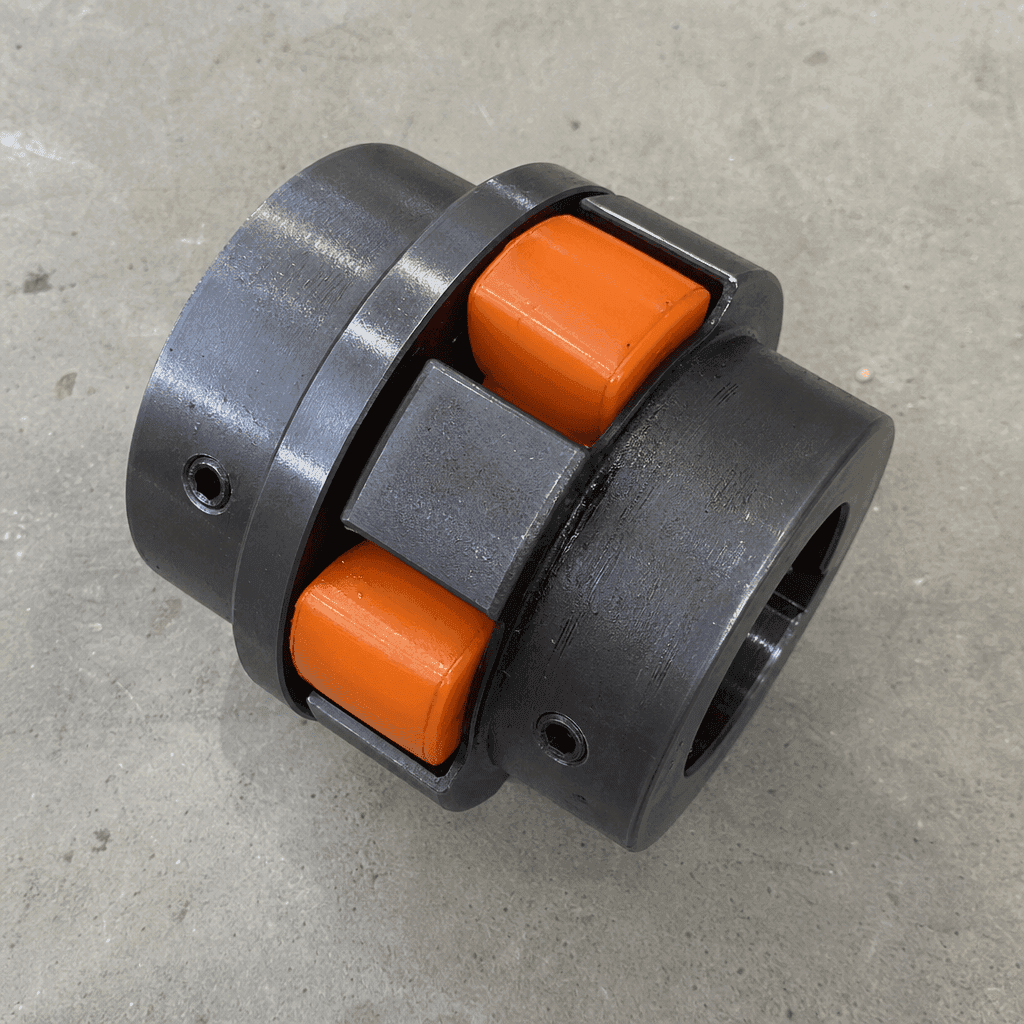

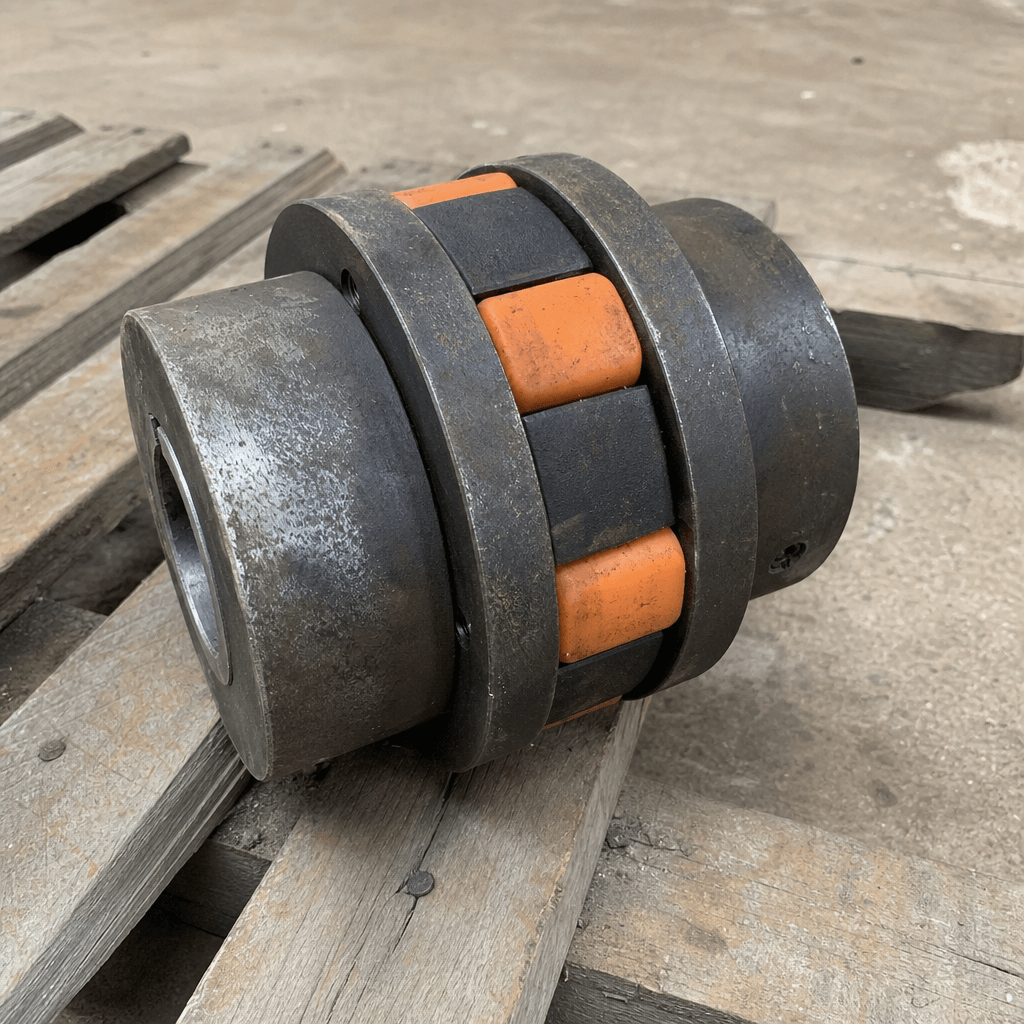

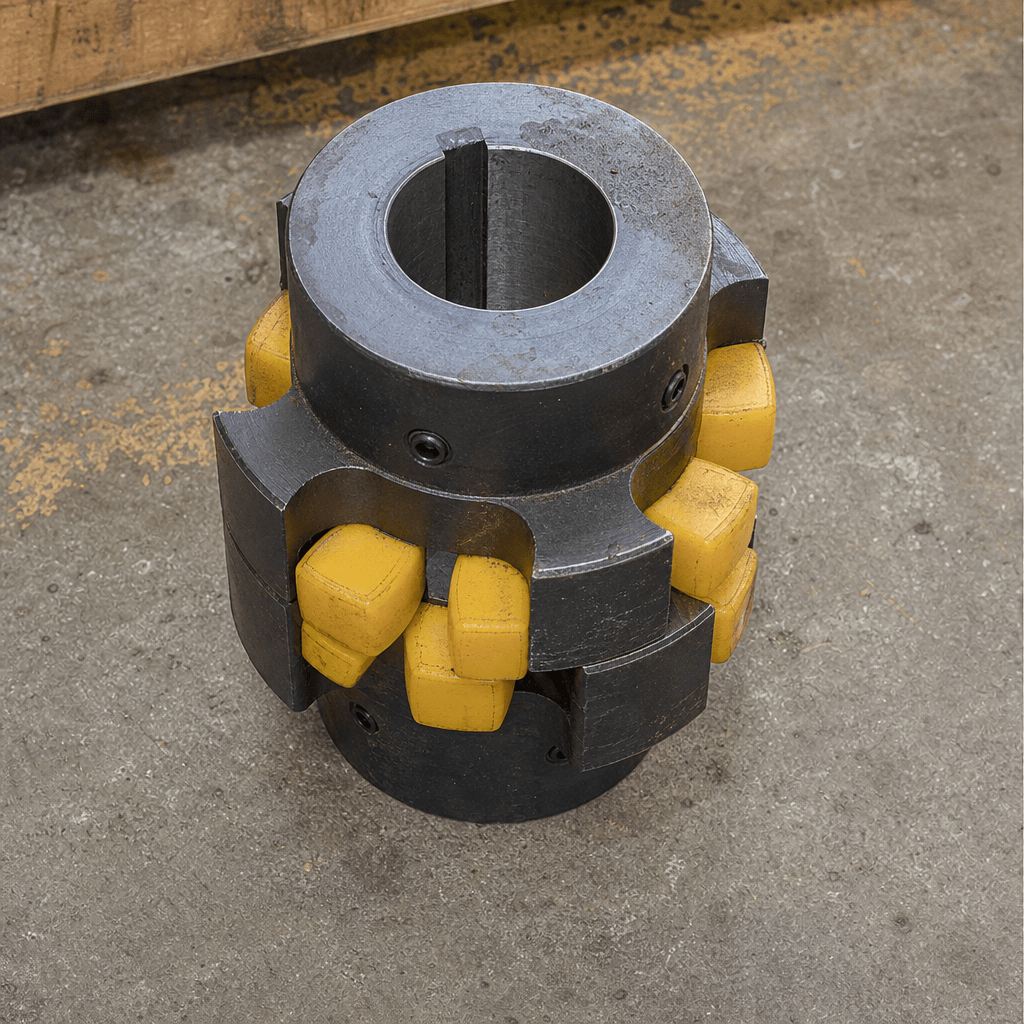

Coupling Set

Function

The coupling set transmits torque from the drive motor to the driven equipment while simultaneously isolating torsional vibration and absorbing impact loads. In a drum mix plant, aggregate surges, cold-start inertia, and occasional foreign-material jams impose transient shock loads that can be several times the nominal running torque. The elastomeric spider element absorbs these peaks before they reach gearbox internals and shaft bearings. A cracked or degraded spider allows metal-to-metal contact between hubs, transmitting full shock forces into downstream components and accelerating bearing and seal wear throughout the drivetrain. Timely spider replacement is the lowest-cost maintenance action available to extend gearbox overhaul intervals.

Construction & quality

Hubs are precision-machined from EN8 medium-carbon steel (Brinell hardness 179–207 HB), bored and keywayed to H7/k6 interference fits and finished to Ra 1.6 µm on mating faces. Spider jaw elements are moulded from polyurethane (PU) — 92 Shore A for standard-duty conveyor and auxiliary drives, 98 Shore A for high-torque drum and main-drive applications. Hubs receive a zinc-phosphate conversion coating followed by primer and enamel paint for corrosion protection in outdoor, dust-laden environments. Keyways are broached and deburred; bore depths are inspected with go/no-go gauges before despatch. Complete sets are supplied with keys, fasteners, and a retaining ring where applicable.

When to replace

• Visible cracking, chunking, or permanent compression set on the spider/jaw element
• Rhythmic vibration or knocking noise from the drivetrain at coupling rotational speed
• Localised heat at the coupling location during operation, without bearing fault codes
• Detectable angular or lateral movement between the two hubs when observed under load
• Oil or solvent contamination on the spider element causing softening or swelling
