Electric Motor

Function

Reliable motor performance underpins every production function in the plant. Motor failure at any critical drive position stops production immediately. Correct motor selection — adequate frame size, insulation class, and service factor for the actual load duty cycle — determines both uptime and total lifetime energy cost. Under-sized or incorrectly protected motors run above rated temperature, degrading winding insulation progressively until a winding fault causes failure.

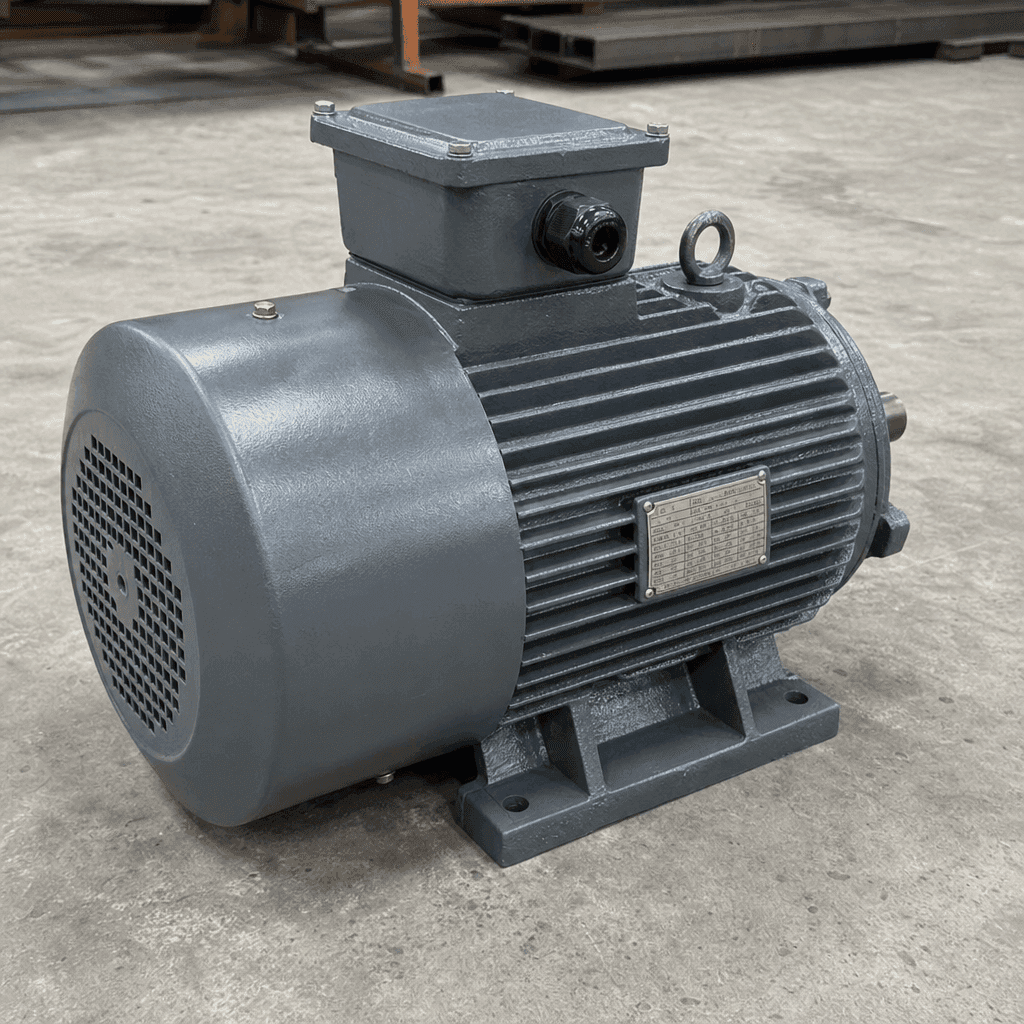

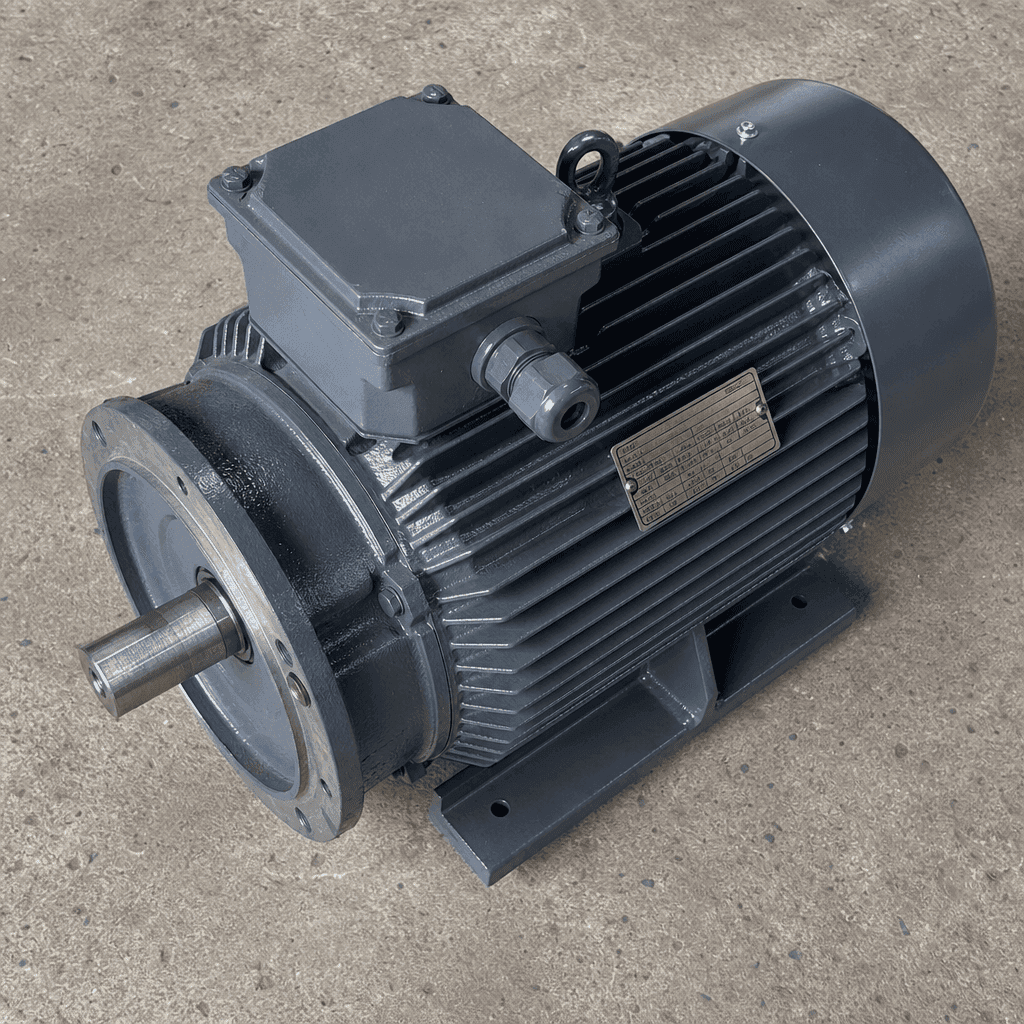

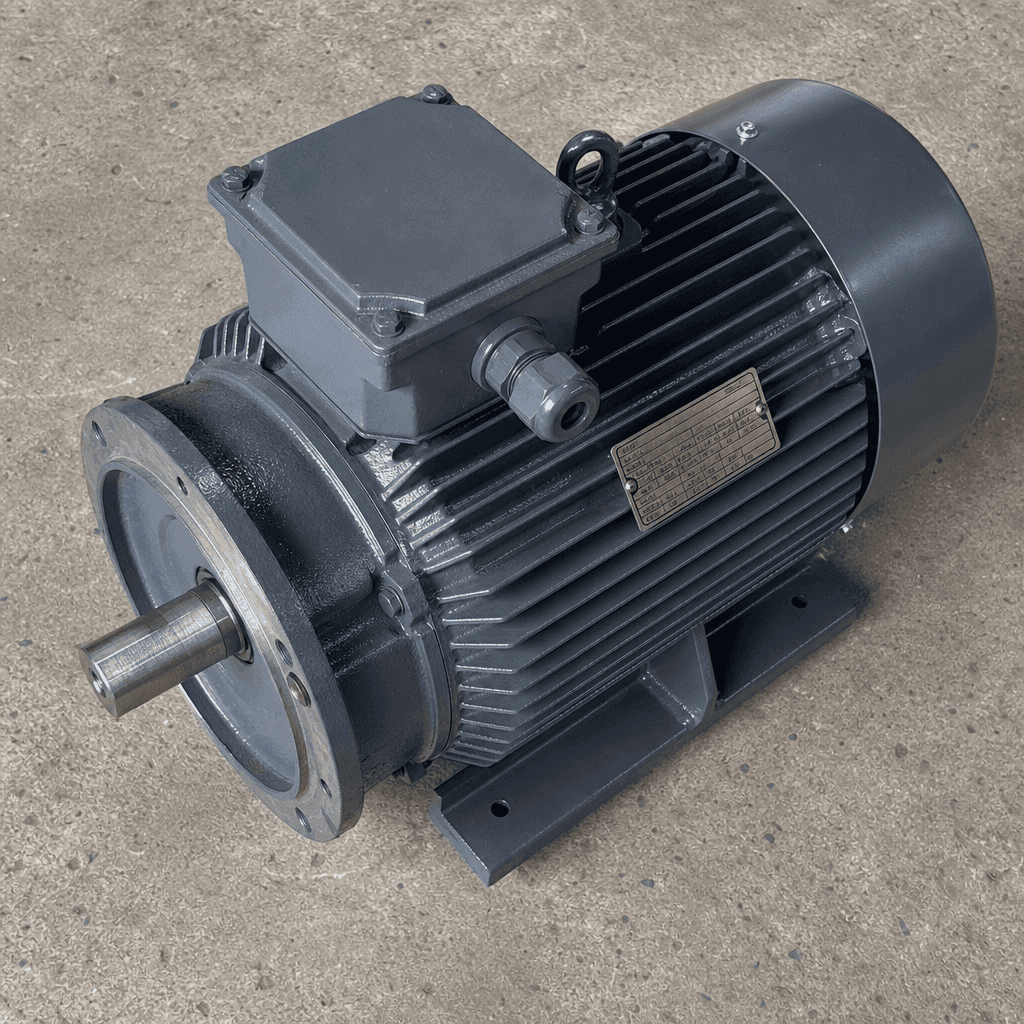

Construction & quality

Frame: ribbed cast iron or aluminium alloy die-cast; IEC B3 (foot), B5 (flange), or B35 (foot-and-flange) mounting options. Rotor: die-cast aluminium squirrel cage or copper-bar construction on premium high-efficiency frames. Stator winding: copper magnet wire, Class F (155°C) or Class H (180°C) insulation standard. Shaft: alloy steel, single or double extended with keyway, retained centre bores. Bearings: deep-groove ball bearings at both ends, or cylindrical roller bearing (drive end) on larger frames. Enclosure: IP55 minimum; IP65 available for outdoor or high-dust locations. Terminal box: top or side mounting, IP55.

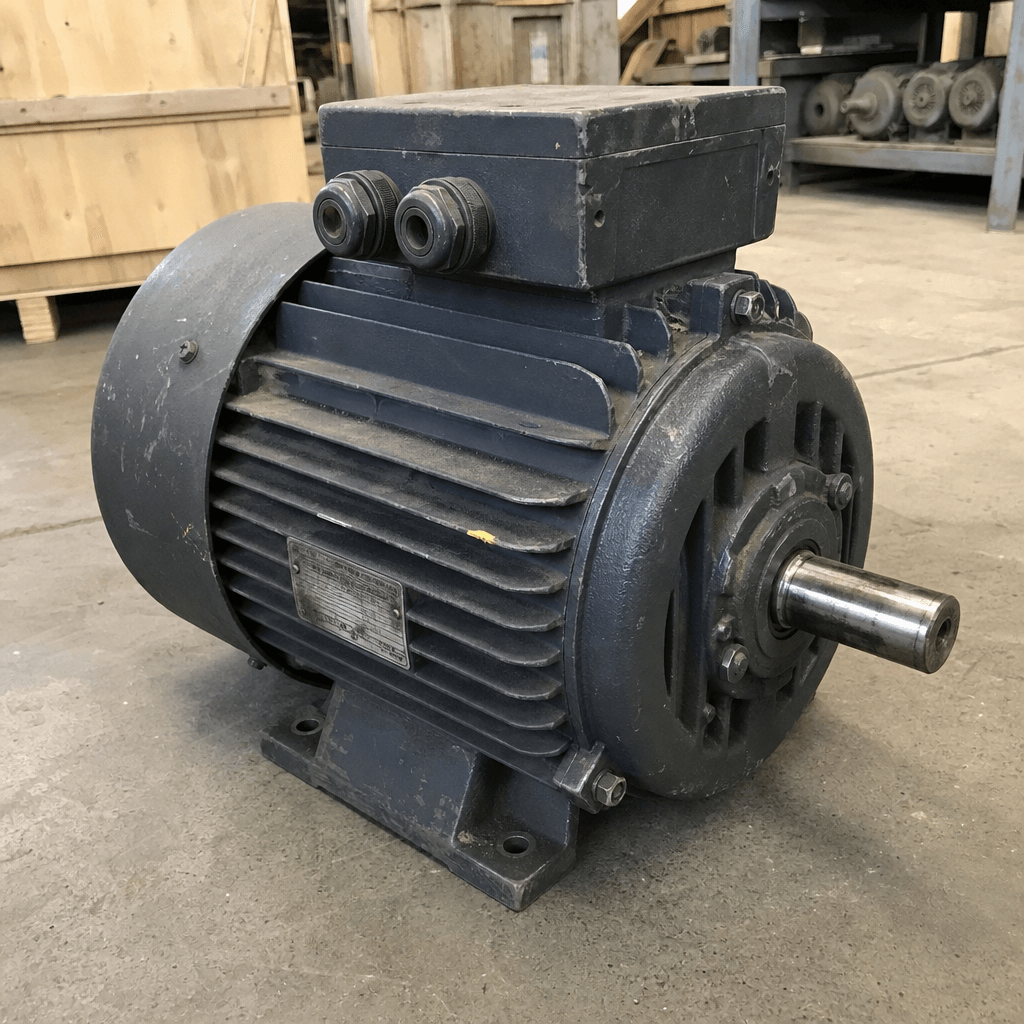

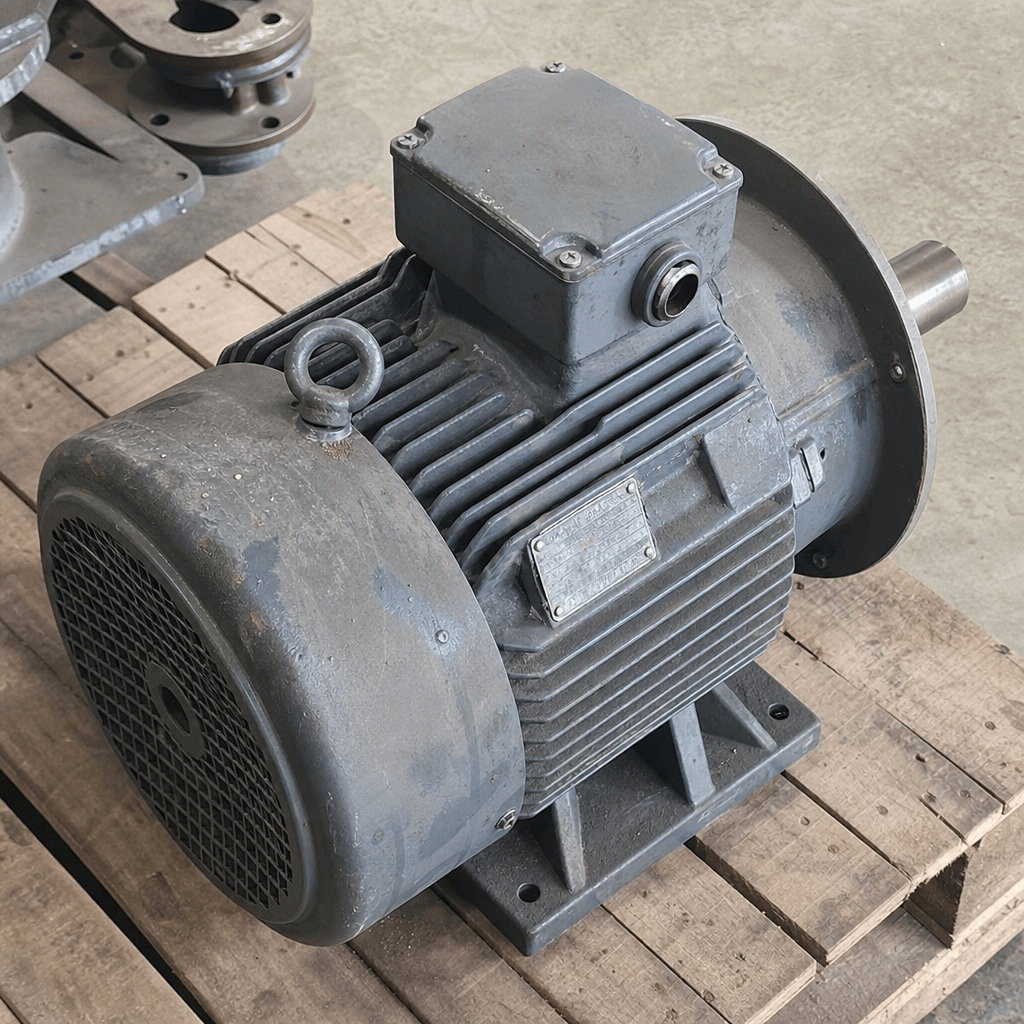

When to replace

• Motor body too hot to hold hand comfortably for more than three seconds during normal load
• Insulation resistance to earth below 1 MΩ when measured with a 500V Megger in dry conditions
• Bearing roughness or intermittent rumble detectable by hand contact on the end-shield
• Shaft seal grease contamination on motor end-shields or adjacent coupling
• Starting current significantly higher than the nameplate value indicating a winding or rotor fault
