1 / 3Avelta genuine part · AVL-WMM

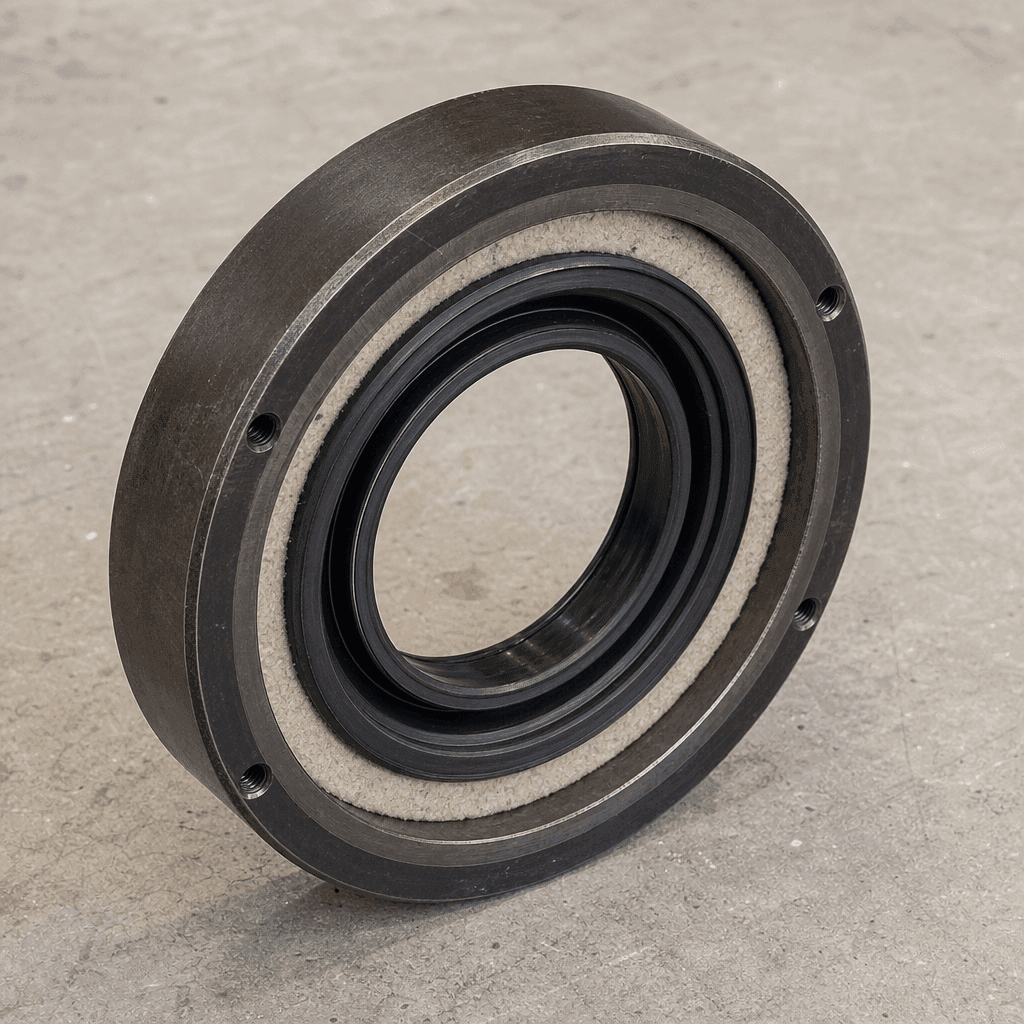

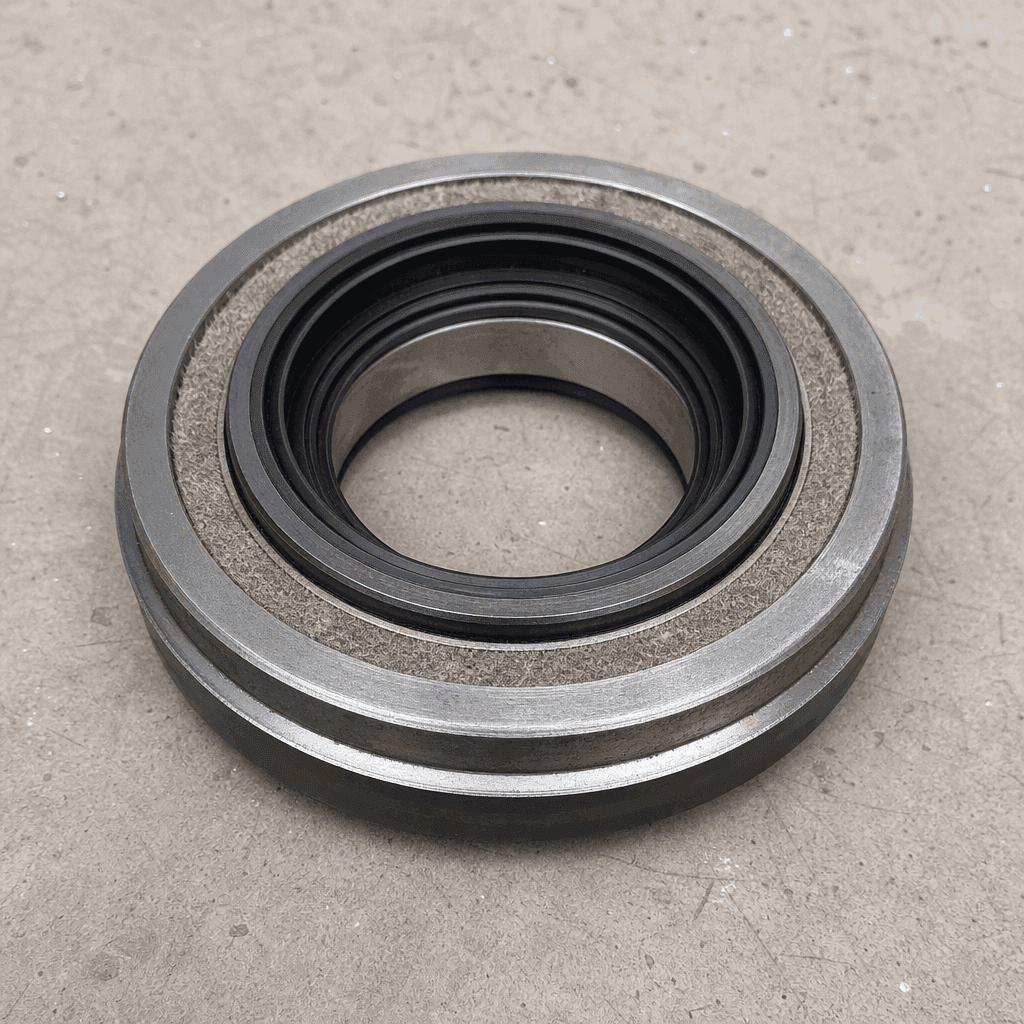

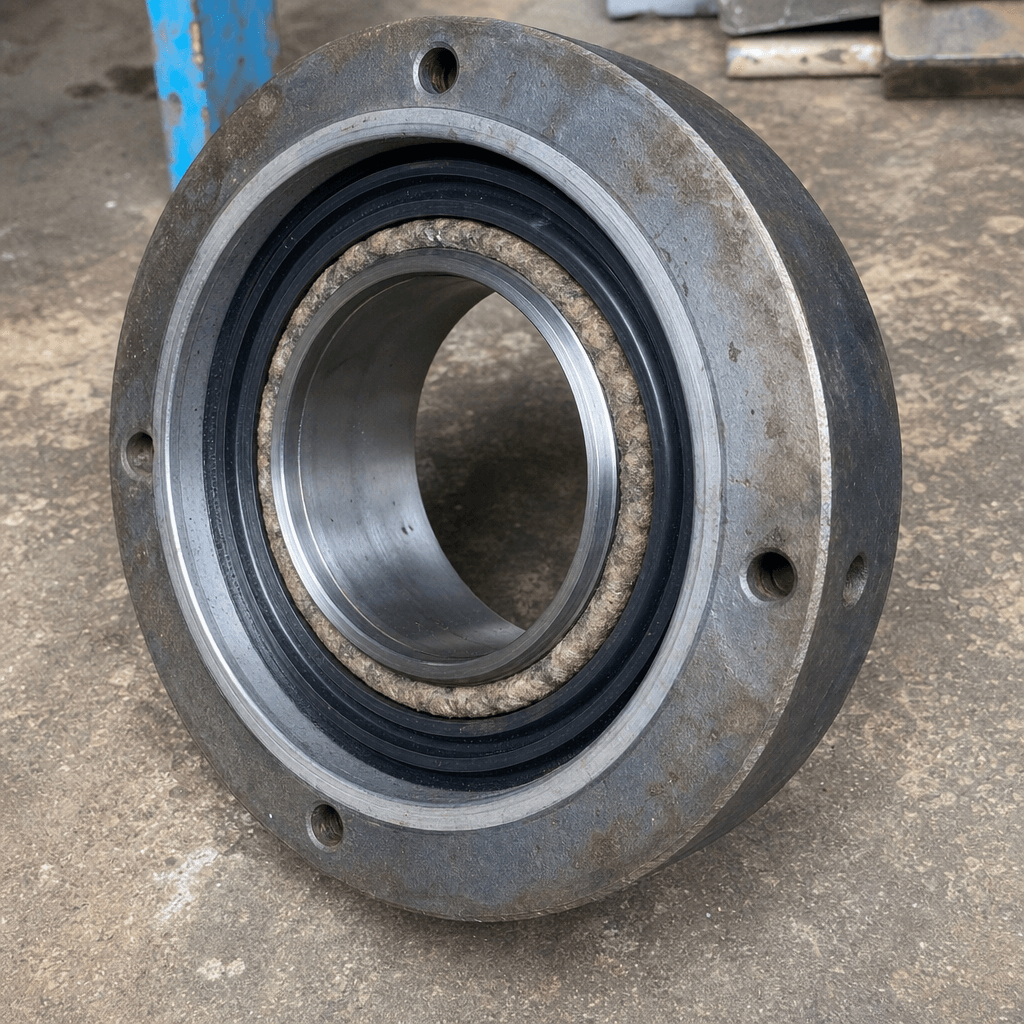

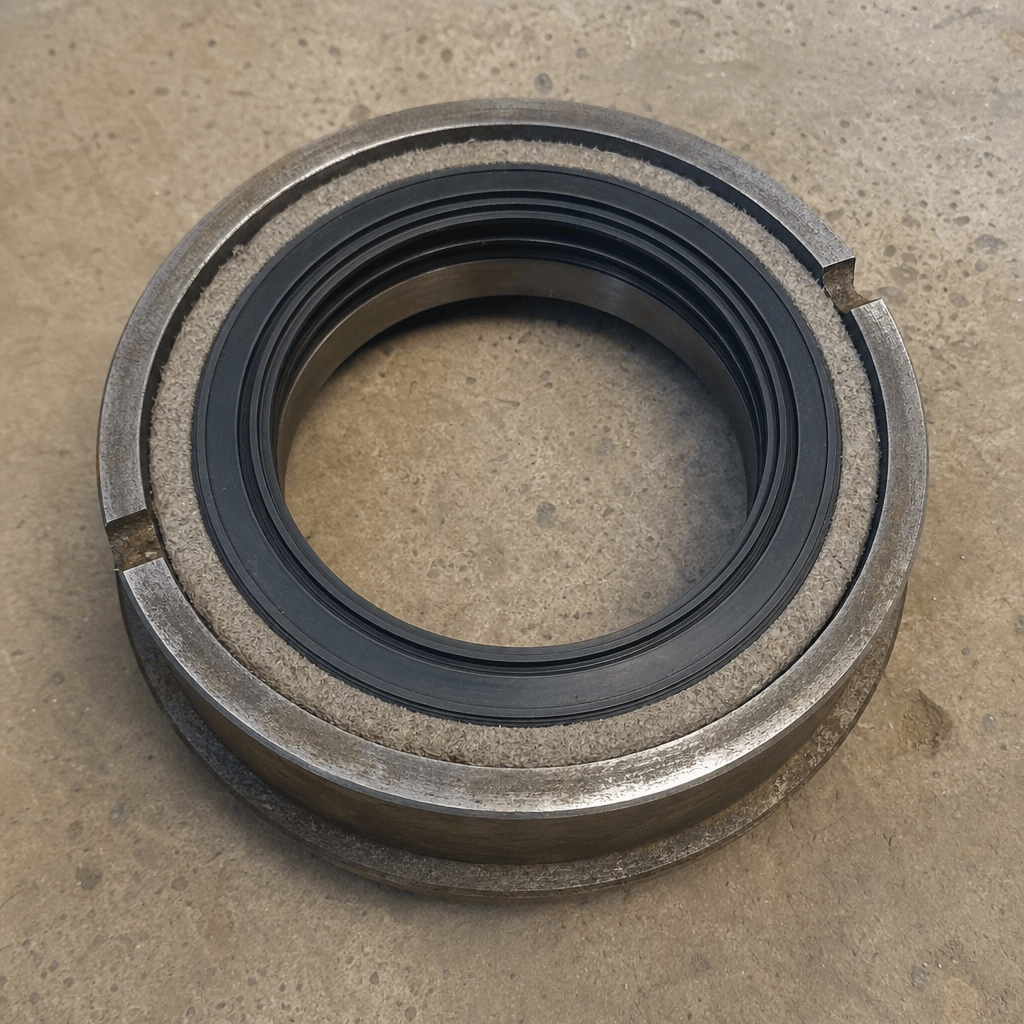

Mixer End Plate Dust Seal
Precision multi-lip dust seals blocking aggregate migration at the mixer shaft end plates to protect bearing housings.
Enquire about this part
Fast response · genuine fitment · worldwide dispatch
At a glance
| Primary seal material | NBR multi-lip (standard) or PTFE-lip (elevated temperature) |
|---|---|
| Secondary wiper | 15 mm wool-synthetic felt, grease-repellent treated |
| Shaft diameter range | 80–110 mm (model-specific) |
| Bore fit in end plate | H7 press-fit (carrier ring, CNC-bored) |
| Max shaft surface speed | 2.5 m/s |
| Operating temperature | −20 °C to +150 °C (NBR); up to +200 °C (PTFE) |
| Kit content | 4 seal assemblies (2 shafts × 2 end positions) |
Overview
The mixer end plate dust seals are positioned at each shaft exit point on the fabricated end walls of the AVL-WMM mixing trough, forming the barrier between the abrasive interior environment and the bearing housings and couplings mounted on the outside. Each shaft passes through a machined bore in the end plate, and it is at this junction that fine aggregate dust, sub-millimetre stone particles, and moisture from the water addition system can migrate outward along the shaft surface into the bearing housing — the primary cause of premature bearing contamination in WMM plants.
The seal assembly typically comprises a primary lip-seal element retained in the end-plate bore and a secondary felt or foam wiper that traps any particles passing the first element. Avelta supplies the seals as an end-plate kit covering all shaft positions on one mixer, with a steel carrier ring for precision drop-in installation.
Function
By blocking the dust-migration path at the shaft exit, the end plate seals extend bearing service life from a contamination-limited 2,000–3,000 hours toward the bearing's full design L10 life of 8,000+ hours. They also prevent moisture tracking along the shaft, which causes fretting and corrosion beneath the paddle arm hub key. The seals must flex slightly with shaft runout (typically ±0.1 mm) without losing contact; incorrect seal sizing causes either inadequate sealing or excessive friction heating at the shaft surface.
Construction & quality
Primary seal element: moulded NBR multi-lip contact seal for standard duty or PTFE-lip seal for elevated shaft surface temperatures. Lips are coated with a low-friction PTFE dispersion to minimise running drag at the shaft surface. Secondary wiper: compressed wool-synthetic felt, 15 mm width, impregnated with a grease-repellent compound. Outer retaining ring: CNC-machined EN8 steel with a fine-turned bore to H7 tolerance for positive press-fit in the end-plate bore. The complete assembly is factory-aligned in the carrier ring and supplied ready for installation without measuring tools.
When to replace
- Aggregate dust visible on the shaft surface outside the end plate
- Bearing housing grease showing grey or sandy contamination on inspection
- Circumferential wear groove on the shaft surface at the seal lip contact point
- Bearing outer race temperature rising without change in operating load or grease schedule
- Rust staining on the shaft surface outboard of the seal, indicating moisture tracking
Compatibility & fitment
Supplied for all shaft diameters across the AVL-WMM range; Avelta confirms end-plate bore diameter and shaft dimension against the plant's fabrication drawing before despatch.
Why buy from Avelta
Avelta seal kits are manufactured to the end-plate bore and shaft diameter recorded at the original build, eliminating the dimensional mismatches that cause seal lip distortion and early failure in the field.
Need this part shipped?
Tell us your plant model and destination — we'll confirm fitment, price and lead time.
WhatsApp AVL-WMM-06More Wet Mix Macadam Plant parts
