Cement Silo Venting Filter Bag

Function

A blocked silo vent filter creates back-pressure in the silo during pneumatic filling. If pressure exceeds the silo lid seal or safety valve rating, the lid can lift or the silo walls can be over-pressured — a structural and personnel safety hazard. Conversely, a torn or failed filter bag releases cement dust to atmosphere without restriction — a regulatory environmental violation and an occupational health hazard to site personnel, as well as a source of material wastage. In either failure mode, the pneumatic delivery vehicle cannot complete its fill, interrupting cement supply to the batching plant.

Construction & quality

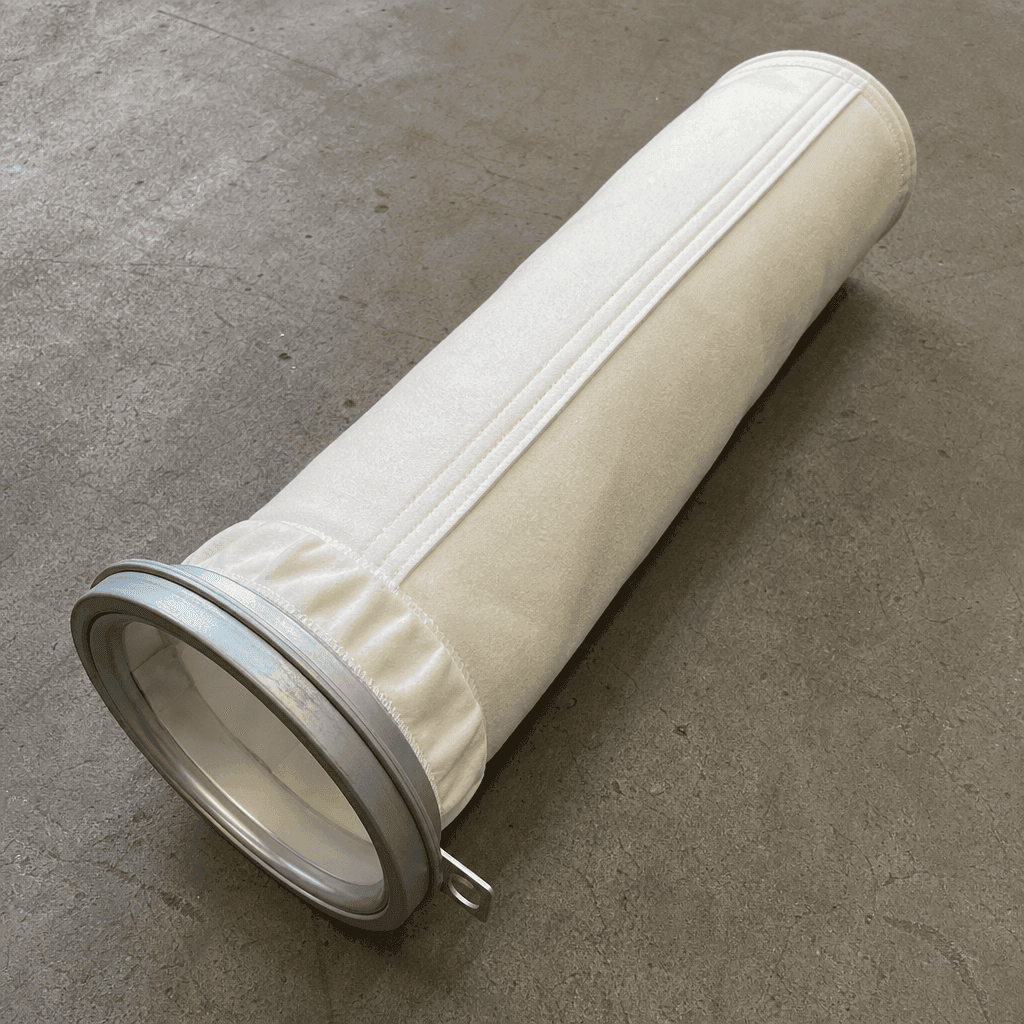

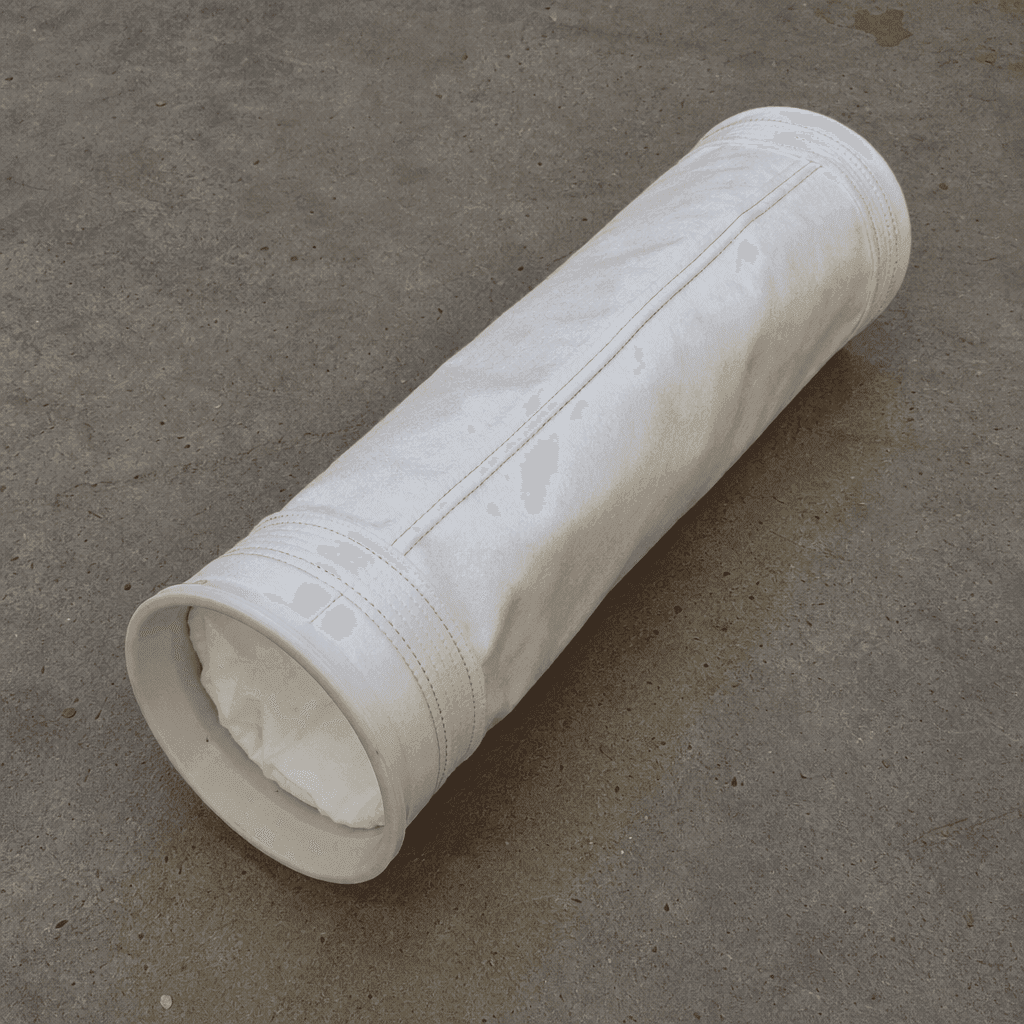

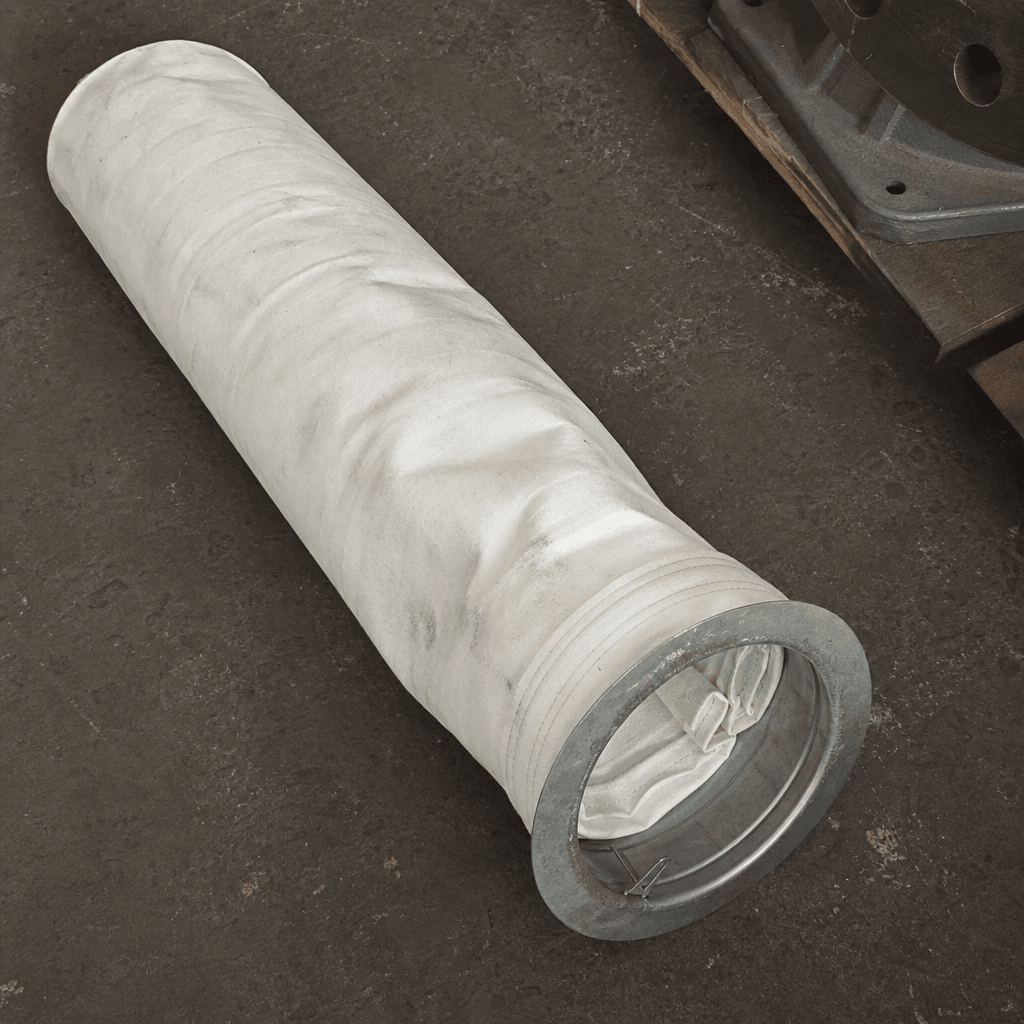

Bags are needle-felt polyester (PET) fibre at 500–550 g/m² areal density, finished with a calendered surface or sintered PTFE membrane for improved dust cake release in the humid, adhesive cement dust environment. Filtration efficiency is ≥99.9% at 1 µm for the membrane grade. Bags are constructed with ultrasonically welded or heat-sealed seams, a sewn snap-ring or flat-cap collar for mounting in the filter housing tube sheet, and a pleated or straight cylindrical form depending on the silo filter design. Corner inserts are heat-moulded rather than sewn to prevent seam failure at the transition.

When to replace

• Visible cement dust cloud emitted from the silo vent outlet during pneumatic filling
• Abnormal pressure build-up in silo — pressure gauge reading above design limit
• Increased back-pressure on the delivery vehicle blower during silo fill, reducing fill rate

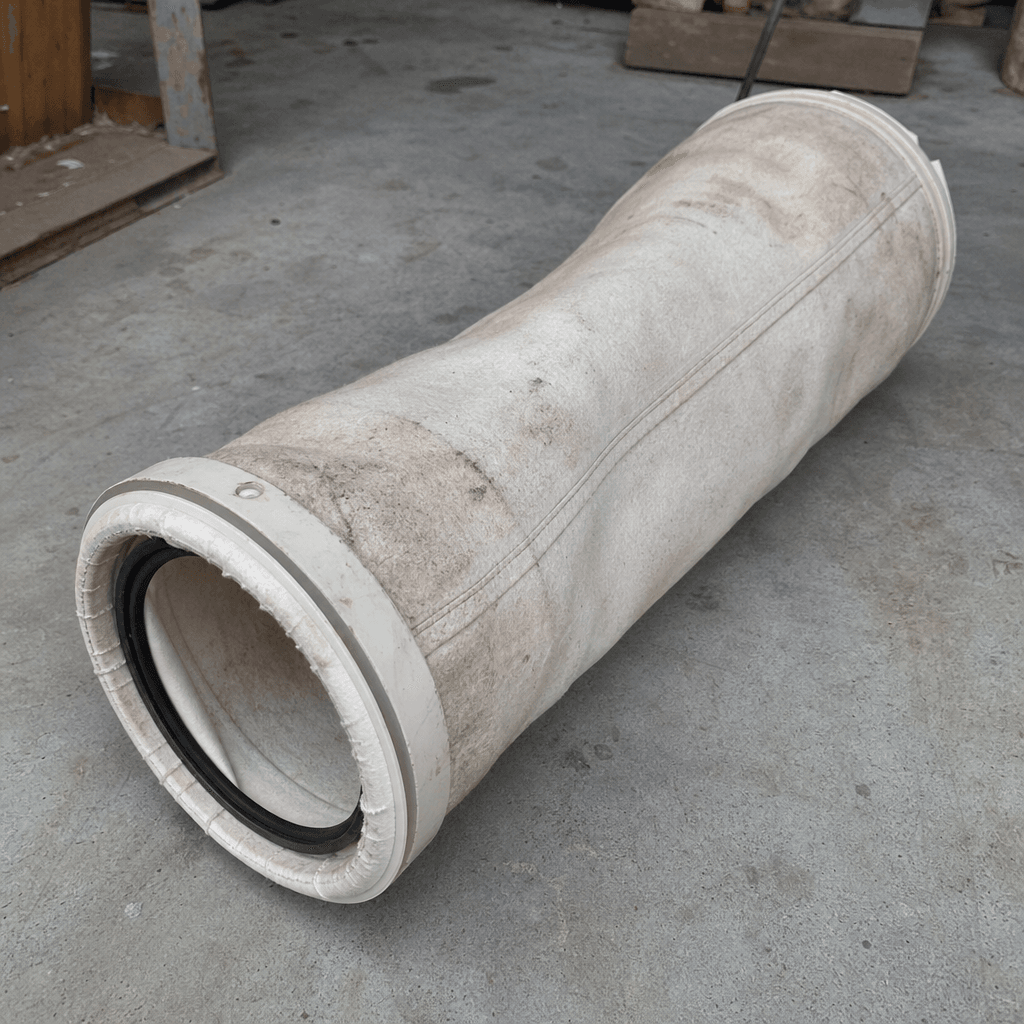

• Bag surface tears, pin-holes, or seam failures visible on inspection access
• Differential pressure gauge across filter housing reading persistently at or above maximum design differential
