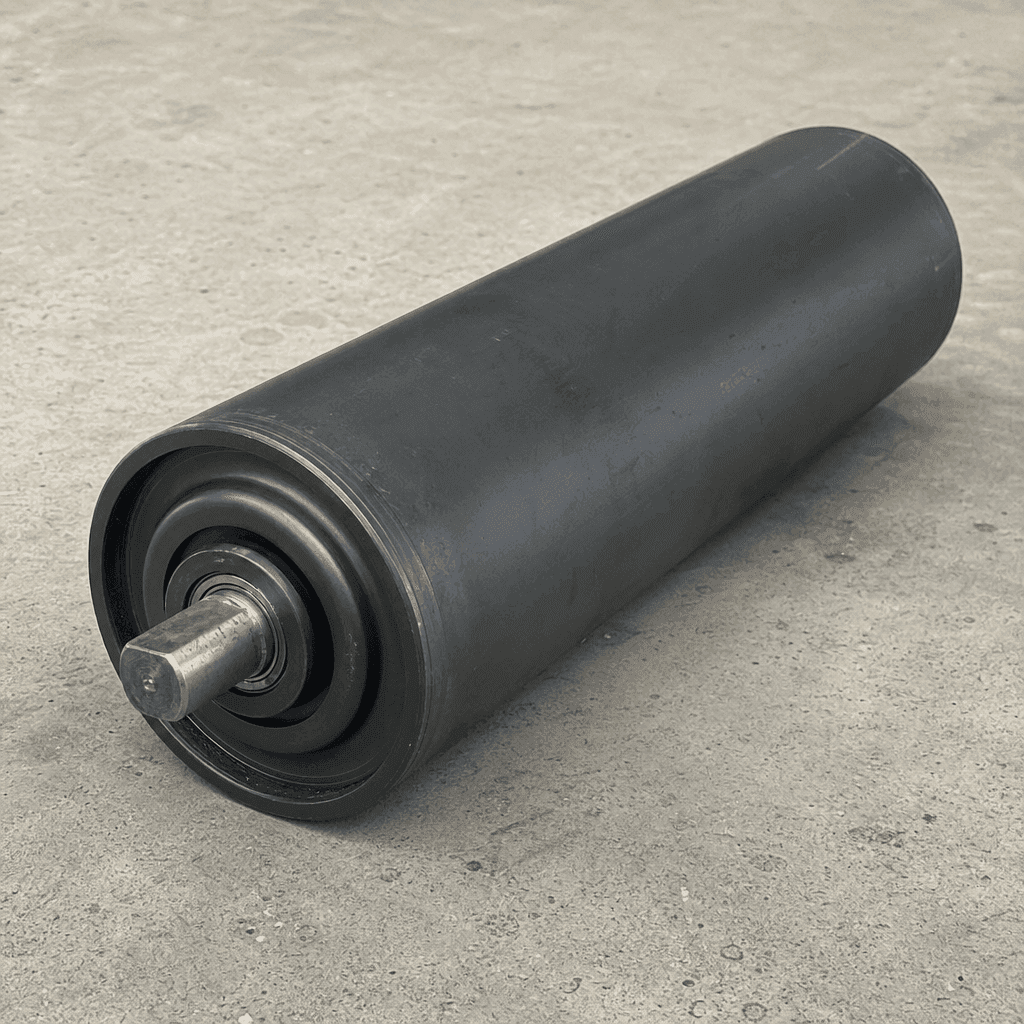

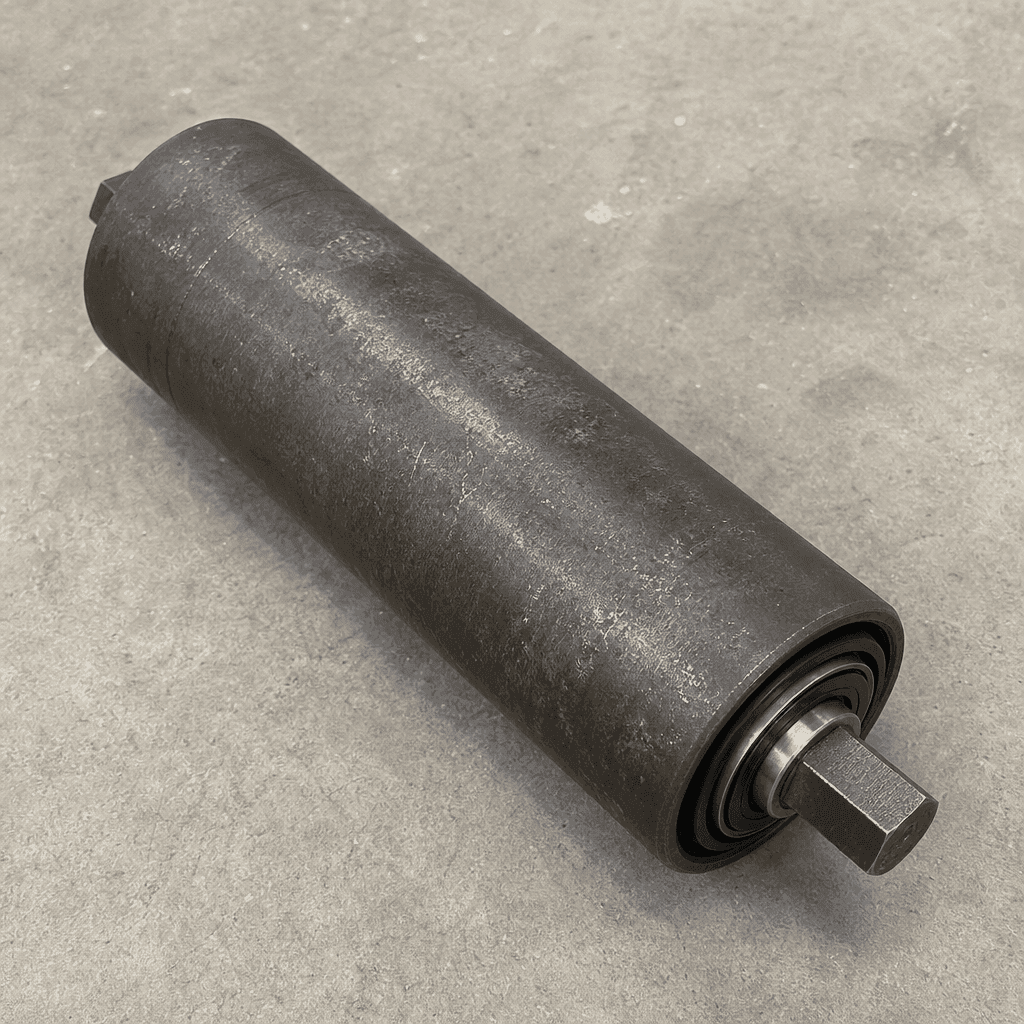

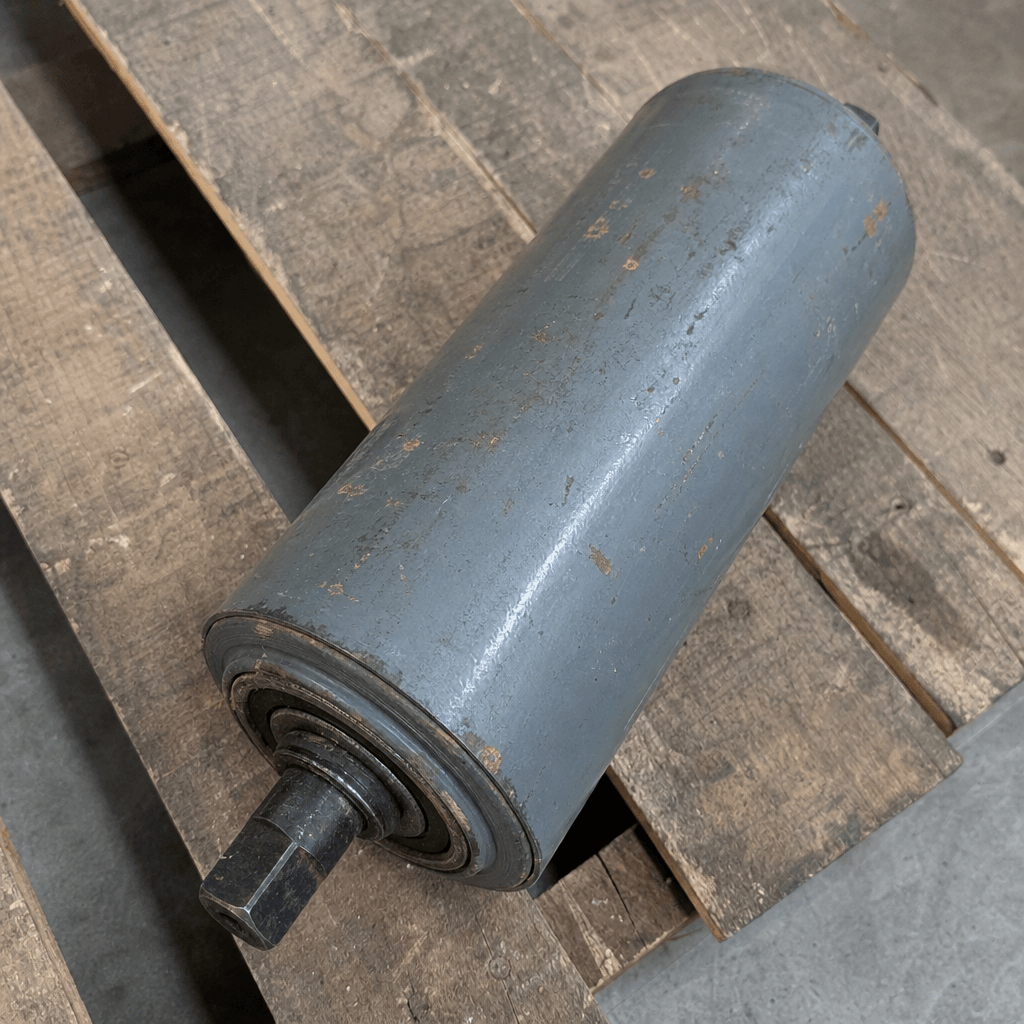

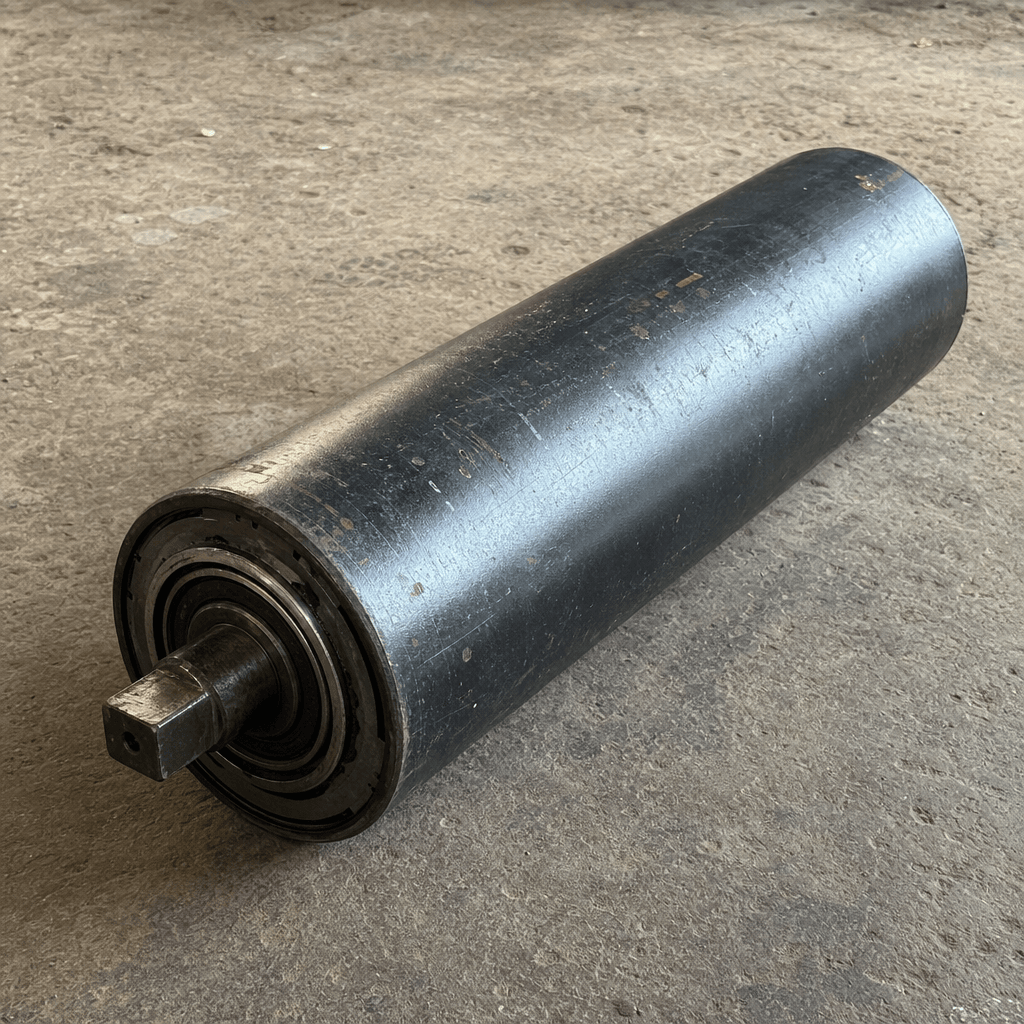

Collecting Conveyor Idler Roller

Function

Idler rollers support the belt and its aggregate load between frame cross-members, distributing the load into the frame structure and maintaining belt sag within the limits (typically 1–2% of idler spacing) needed for smooth, low-resistance belt travel. A seized idler creates a fixed friction point that burns a localised channel into the belt top cover. A flat-spotted or eccentric roller induces repetitive impact loading at belt speed, causing structural fatigue at the splice and accelerating cover wear across the full belt width at that station.

Construction & quality

Roller tubes are ERW steel, 89 mm or 108 mm OD, 3.5–5 mm wall, with pressed-in steel end caps housing sealed deep-groove ball bearings — 6205 or 6305 series — on solid mild steel shafts of 20 mm or 25 mm diameter with hex ends for drop-in mounting in standard bracket slots. A double-seal arrangement on each end face — outer labyrinth seal plus inner contact lip seal — excludes cement dust and surface water. Tubes are painted with one coat of alkyd or epoxy enamel. Rollers with tube diameters above 108 mm operating at belt speeds of 1.0 m/s or higher are dynamically balanced before dispatch.

When to replace

• Audible rumbling, squealing, or rhythmic impact noise from a section of the conveyor run
• Visible flat spot, dent, or shell corrosion on roller tube surface
• Roller not rotating freely when belt is stopped — bearing seized on manual spin test
• Localised belt top cover wear channel aligned with a fixed-position idler station
• Belt mistracking deviation consistently originating at one idler set
