Aggregate Feeder Drive Motor

Function

Consistent aggregate metering is the primary determinant of mix quality and output conformance in a WMM plant. Under-speed from a failing motor causes aggregate starvation, reducing plant throughput and degrading the aggregate-to-water ratio in the finished mix beyond job specification. Overcurrent or bearing-induced vibration introduces belt-speed fluctuation that skews individual feed ratios, producing out-of-gradation material that may be rejected at the job site. A correctly rated drive motor, operating within its thermal and current design envelope through a full production shift, sustains steady belt travel across all aggregate fractions and enables the plant to deliver WMM at consistent gradation and moisture content from first load to last.

Construction & quality

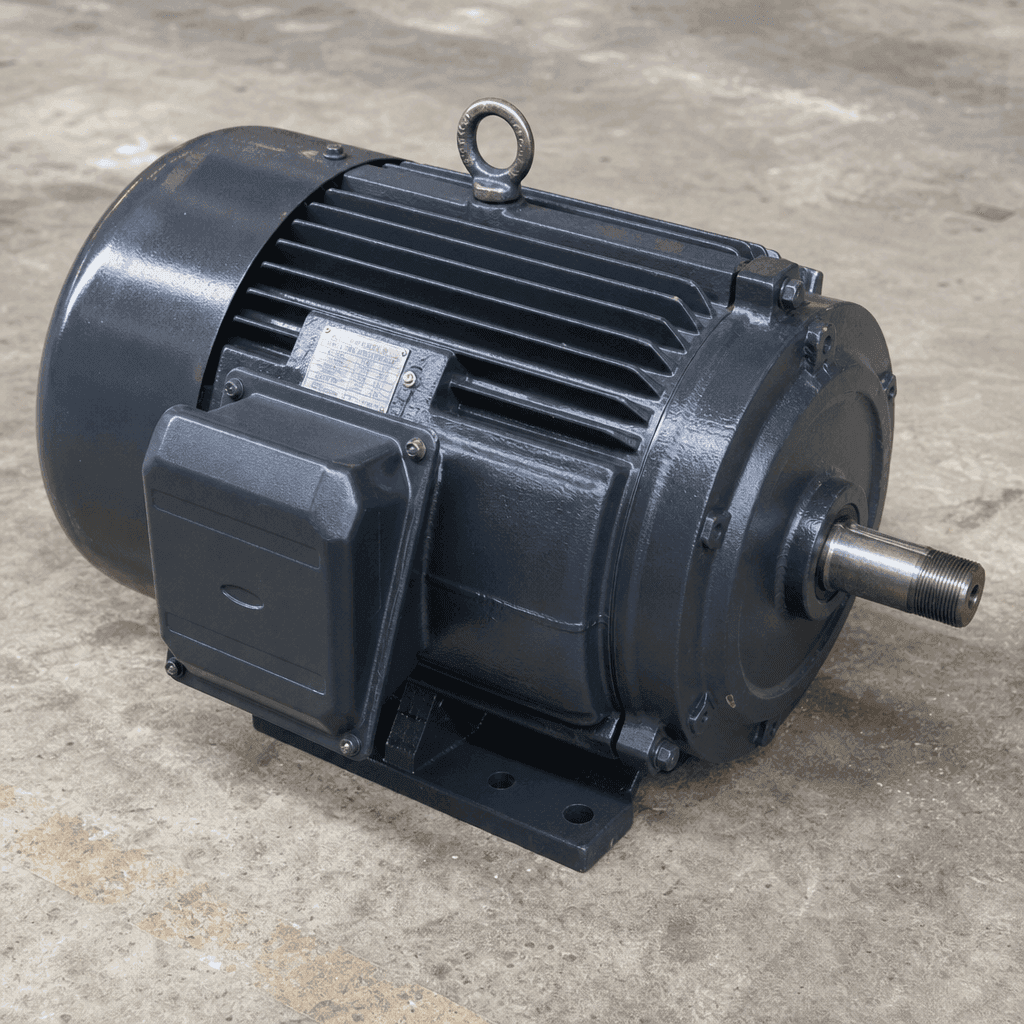

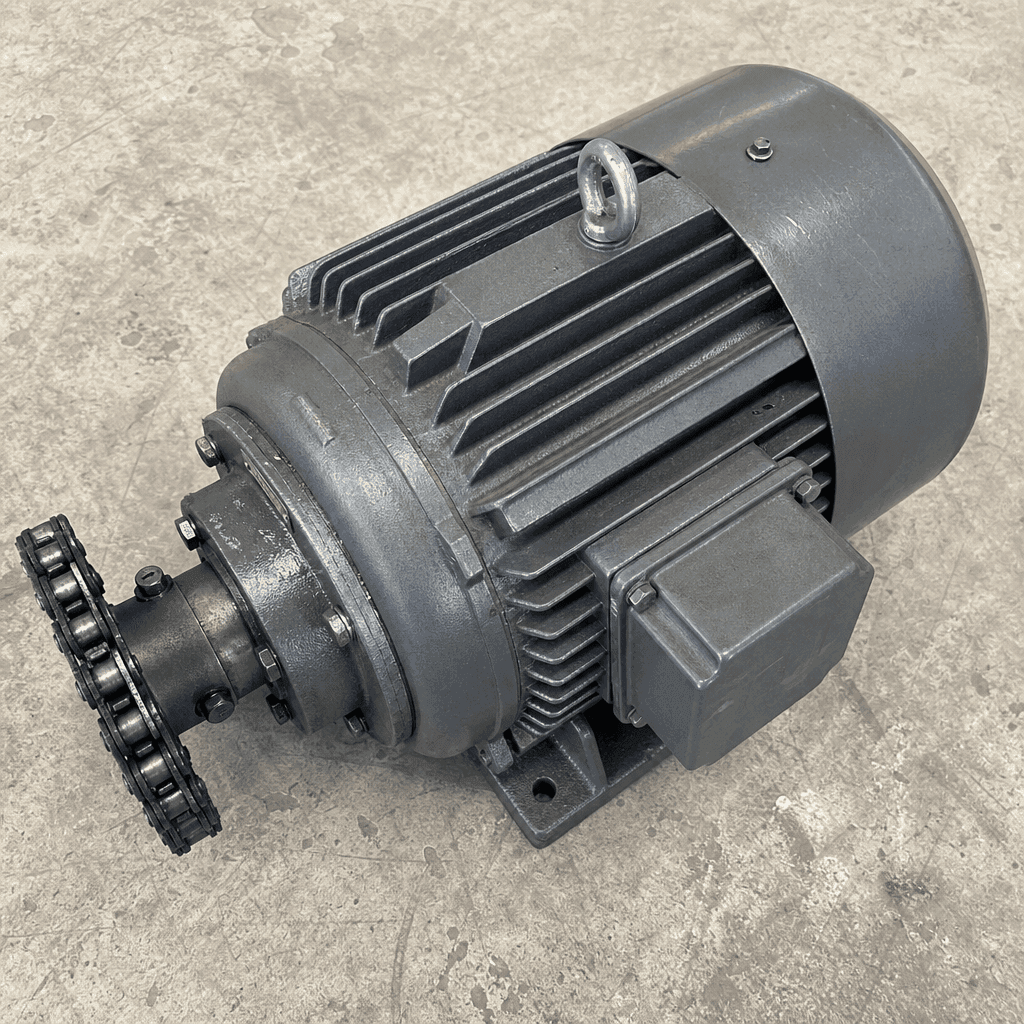

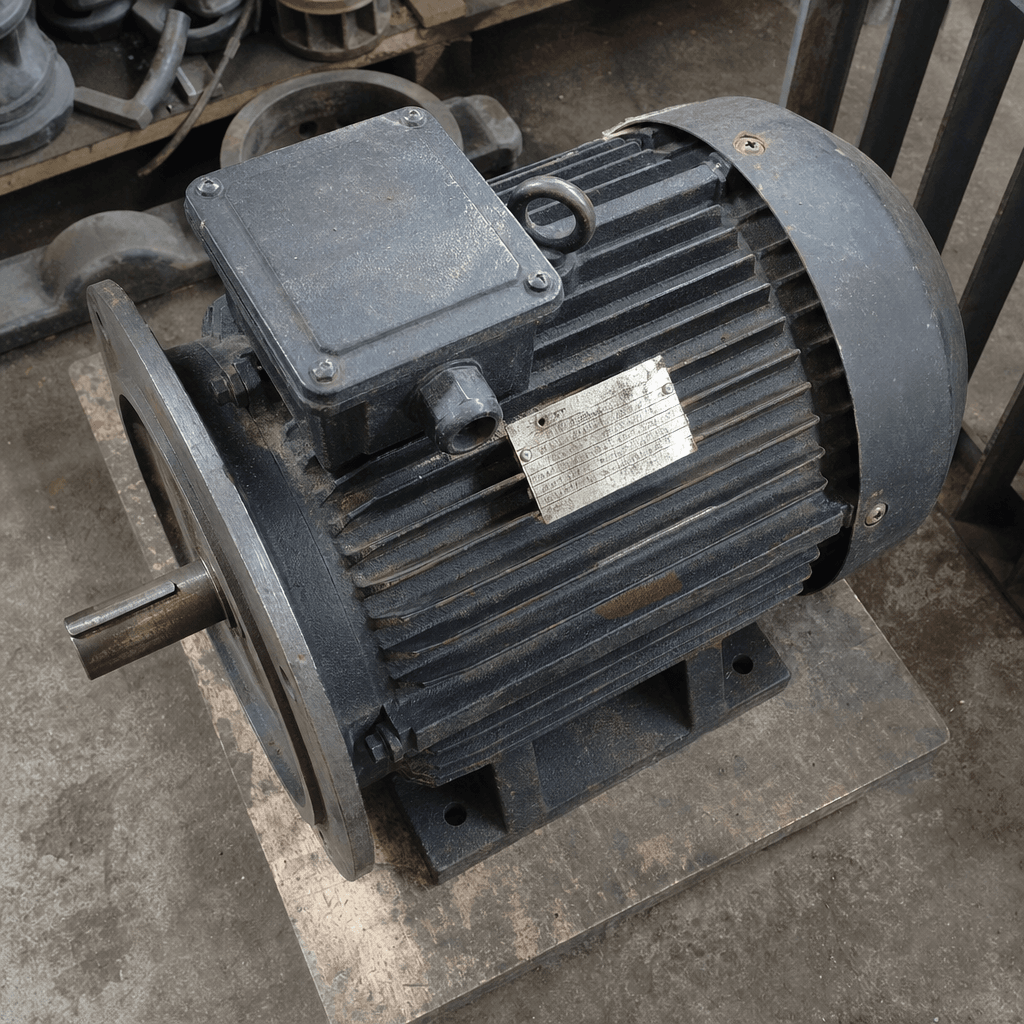

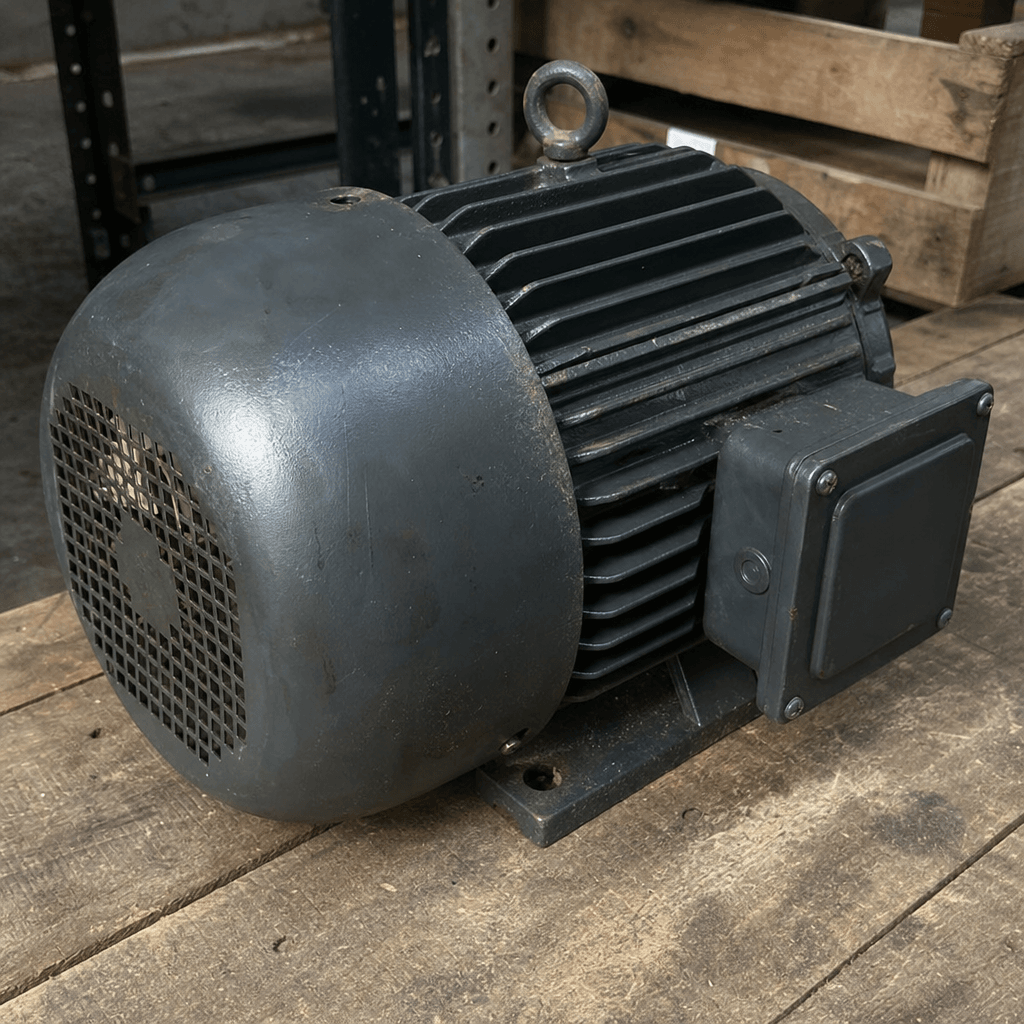

The motor frame is cast iron, machined on all mounting and register faces to IEC dimensional tolerances, in frame sizes from IEC 80 to IEC 132 depending on feeder belt width and plant capacity. Stator windings are Class F copper wire wound to inverter-duty specification, vacuum-pressure-impregnated (VPI) with a reinforced epoxy-resin system and rated for dV/dt switching voltages generated by VFD output stages. Rotor bars are cast aluminium with high-conductivity alloy in the cage, dynamically balanced to ISO 1940 Grade G2.5 to minimise vibration at variable speed. Bearings are deep-groove ball bearings with C3 internal clearance and re-greaseable housings, suited to the combined radial and axial loads of belt-drive operation. The output shaft is alloy steel, hardened and ground, with a keyway machined to DIN 6885 and a shaft tolerance of h6 for reliable coupling fit. External protection is IP55 as standard (IP65 available for high-dust sites), with a two-coat epoxy primer and polyurethane topcoat finish resistant to diesel, hydraulic oil and alkaline cleaning agents.

When to replace

• Increased bearing noise — rumbling, intermittent squealing or high-pitched whine — audible during operation.
• Motor body surface temperature persistently above normal operating range (surface temperatures consistently hot to touch above approximately 60 °C at ambient).
• Visible insulation damage to winding leads, or a persistent burning smell from the terminal box area.
• Irregular belt speed or aggregate feed-rate fluctuation shown on the HMI despite a stable VFD output frequency reading.
• Elevated motor current drawn on the VFD display without a change in load conditions, indicating increased winding resistance, partial winding fault or mechanical drag from worn bearings.
